Color | Green |
---|---|
UPC | 752830447080 |
Manufacturer | SoundTube |
Manufacturer’s Category | LA Line Array |
Height | 37.38 in / 949.5 mm |
Width/Diameter | 6.8 in / 172.7 mm |
Shipping Weight | 26.15 lbs / 11.86 kg |
Carton Height | 8 in / 203.2 mm |
Carton Length | 43.75 in / 1111.25 mm |
Carton Width | 10.75 in / 273.05 mm |
Certifications | CE, RoHS |
Included Accessories | Mounting Hardware |
Optional Accessories | 120W Transformer (SPYKE-XFMR) |
Source Inputs | SpeakON |
Crossover Frequency | 2.4 kHz |
Directivity Factor (Q) (Averaged 100Hz – 10kHz, @ 2kHz) | 9.0 and 12.1 |
Directivity Index (DI) dB (Averaged 100Hz – 10kHz, @ 2kHz) | 12.8dB and 16.2dB |
Frequency Response (± 10 dB) | 65 Hz – 22 kHz |
Frequency Response (± 3 dB) | 100 Hz – 20 kHz |
Grille Properties | Stainless Steel |
Low Pass Crossover | 12 dB per octave |
Max. Continuous Power RMS | 150W |
Max. Program Power | 300 W |
Minimum Impedance (Ω Ohms) | 8 Ω |
Mounting Depth | 5.5 in / 139.7 mm |
Network Type: High Pass | 18 dB per octave |
Nominal Impedance (Ω Ohms) | 8 Ω |
Tweeter Driver | (8) 1″ Aluminum Dome |
Woofer Driver | (8) 3″ Polypropylene |
Sensitivity dB @ 1W/1M | 92 dB |
Sensitivity dB @ 2.83V/1M | 92 dB |
Transformer Options | 25 / 70.7 / 100 V |
Transformer Taps (25V/70.0V/100V) | 15W/120W/120W |
XT-Spyke-Pole-Mount-GN
฿55,120.00

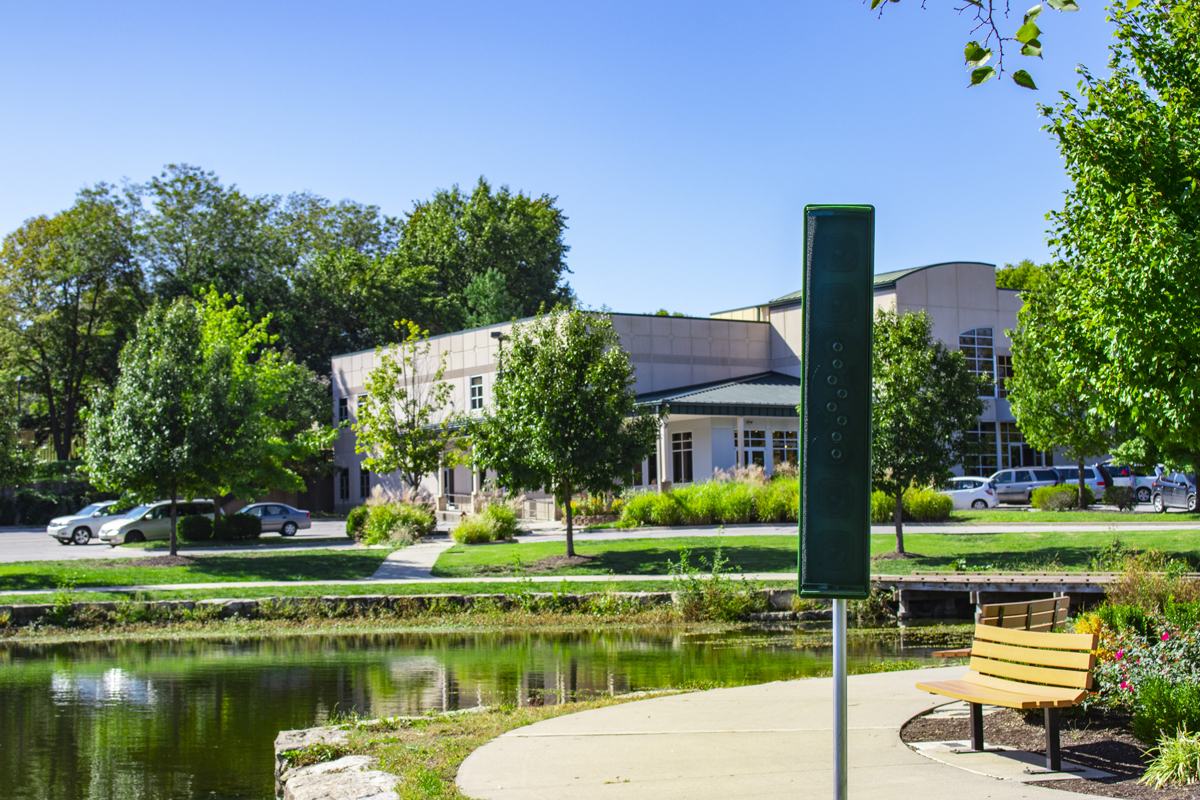

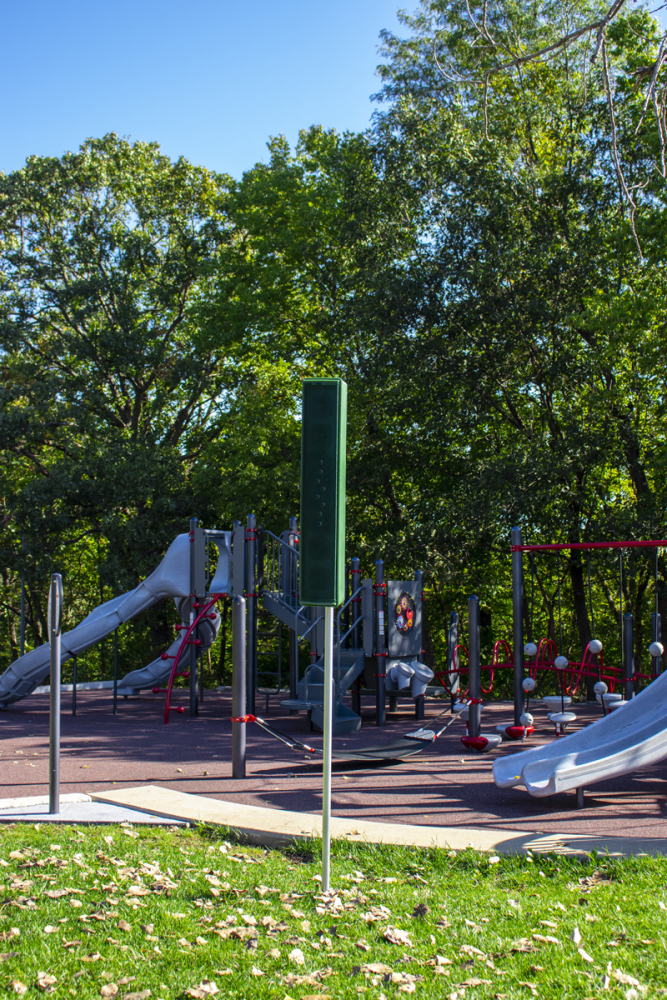

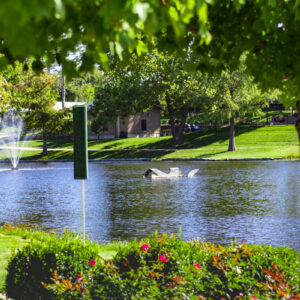

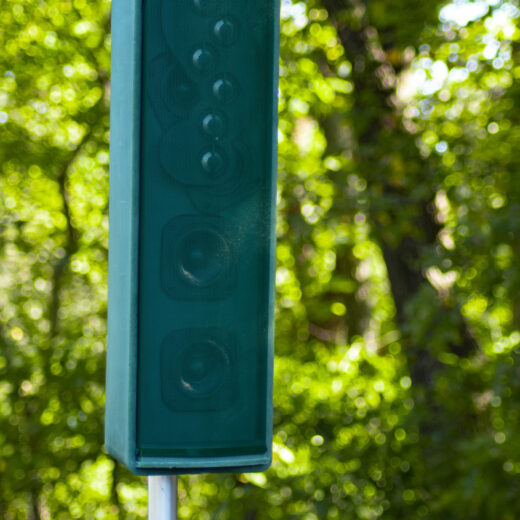

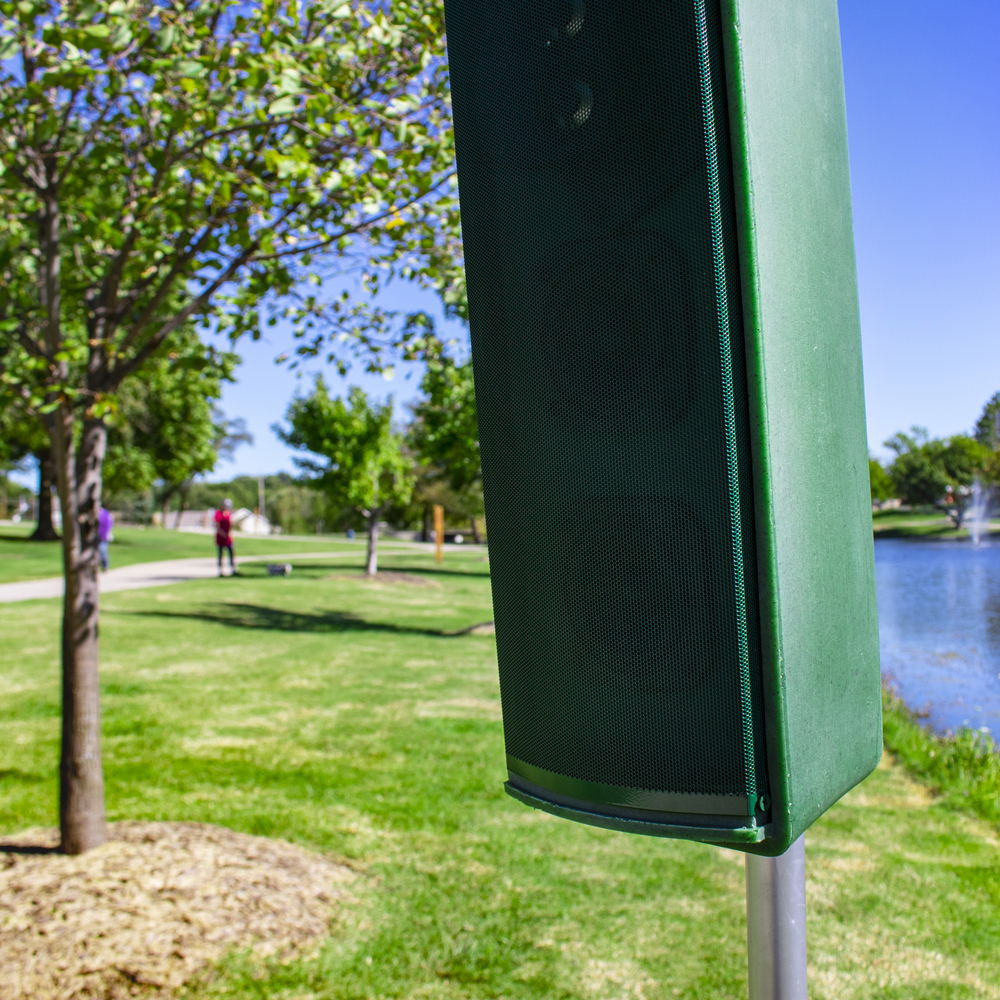

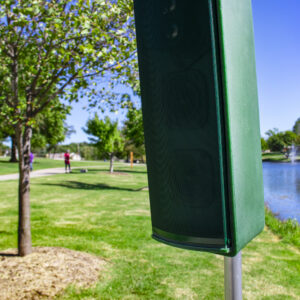

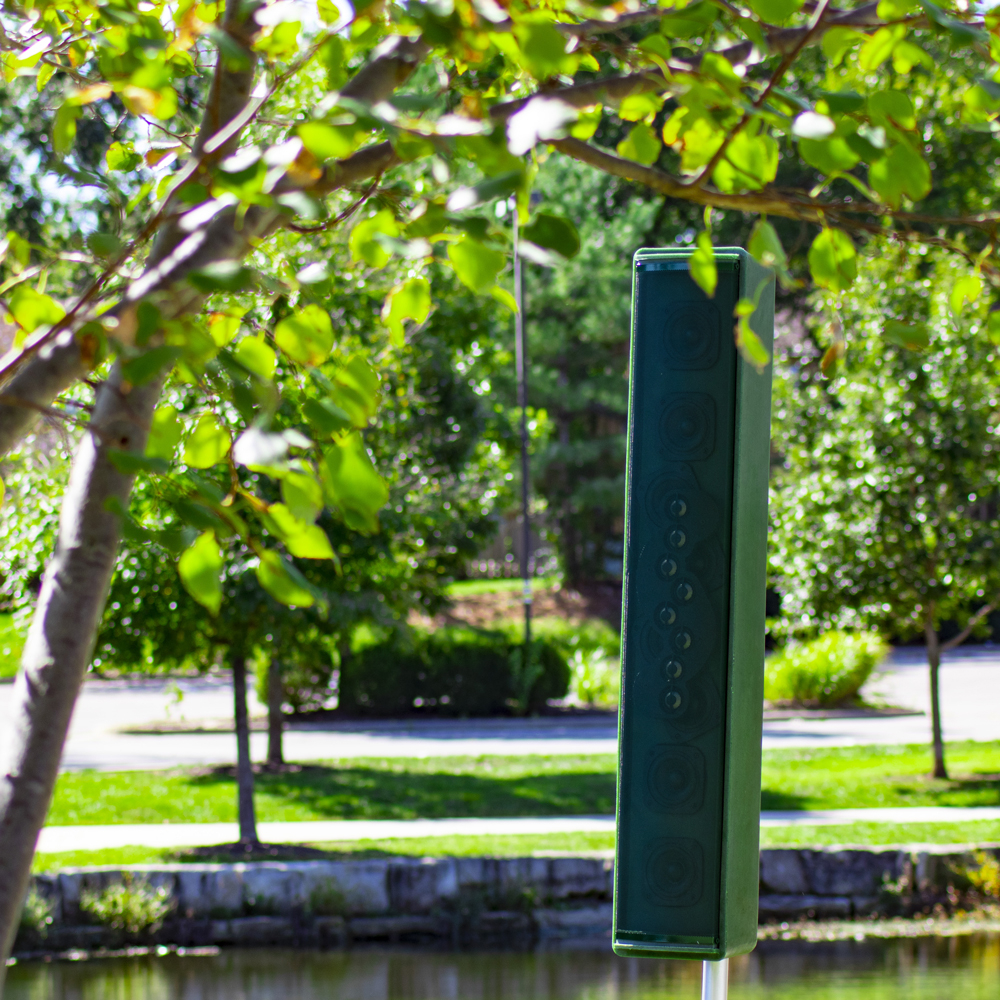

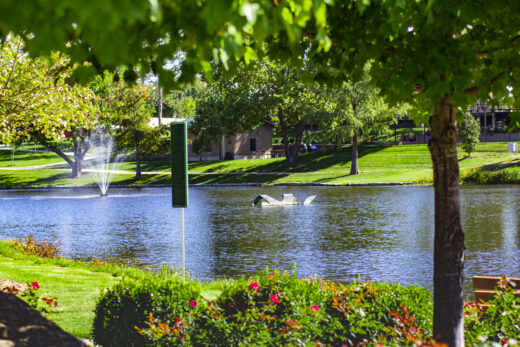

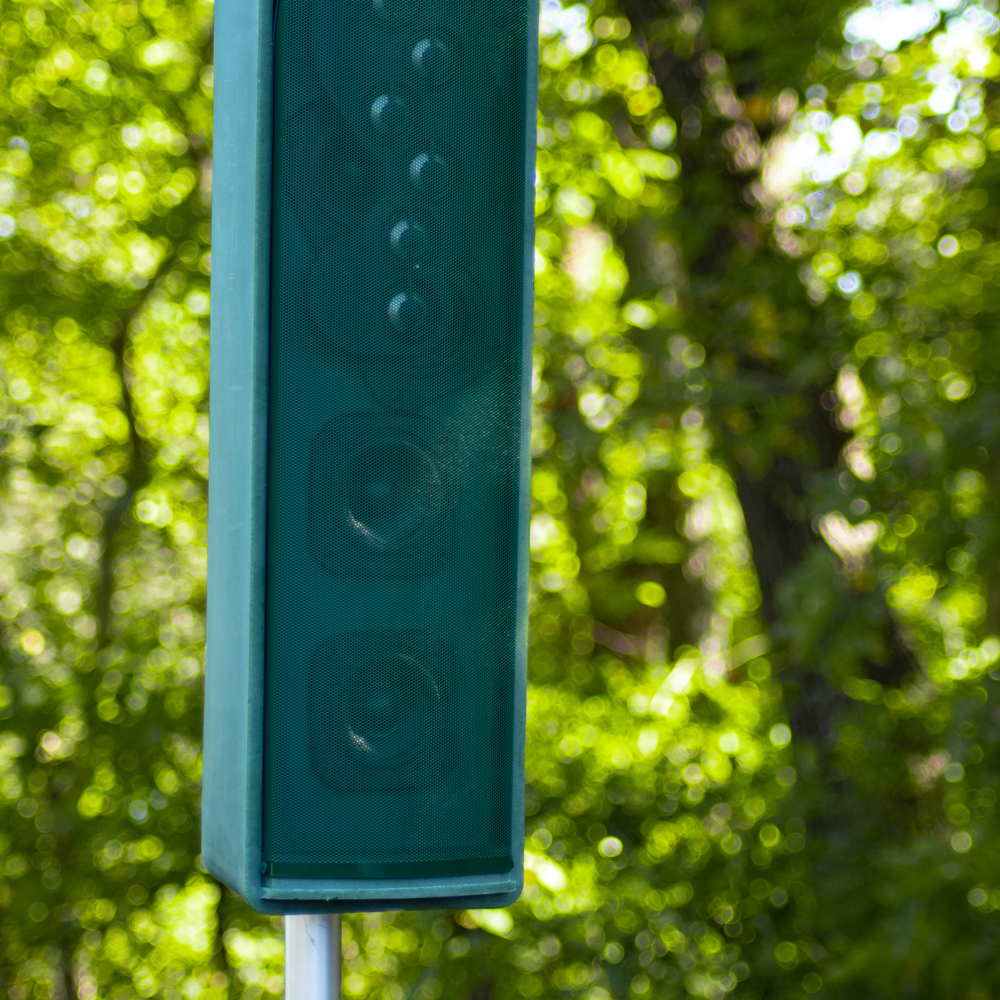

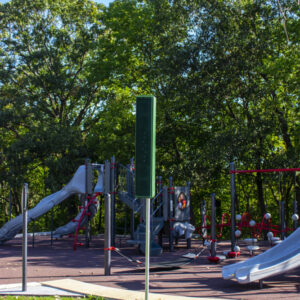

SoundTube Outdoor XT-Spyke Pole Mount Speaker in Green

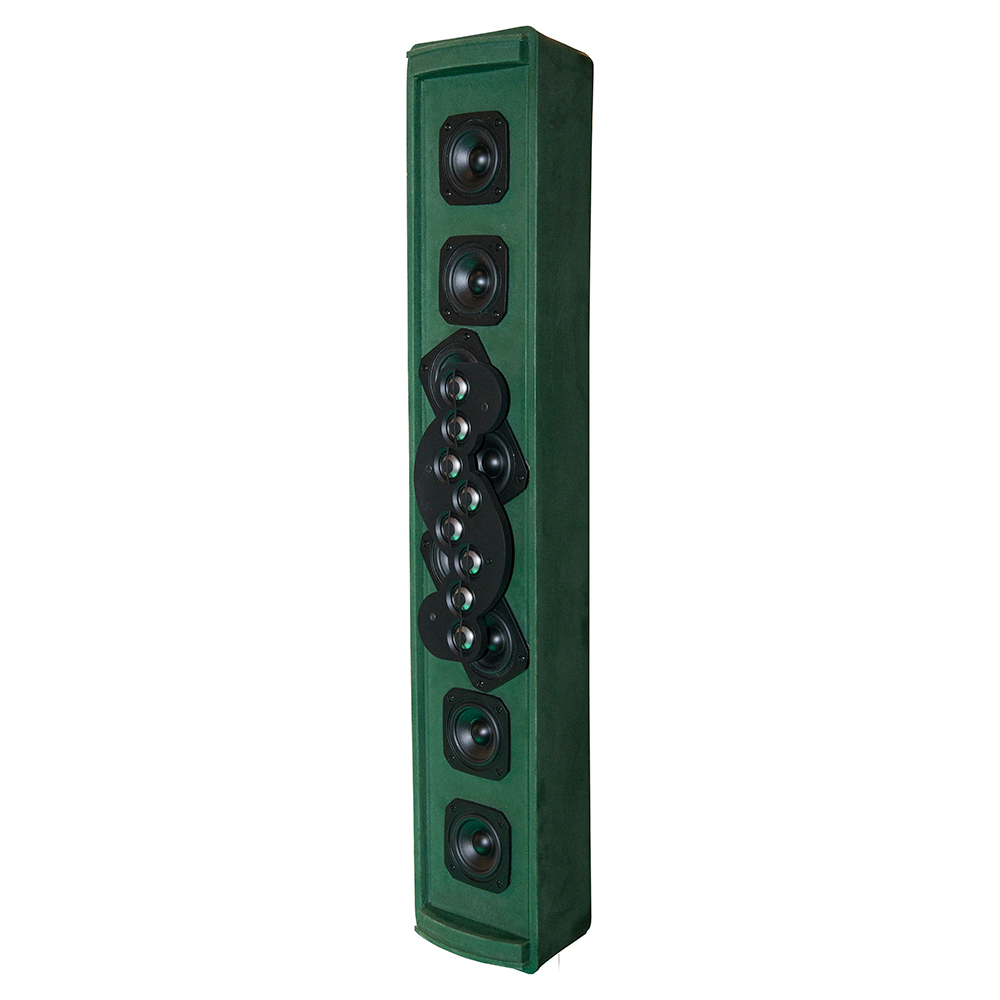

The SoundTube XT-Spyke is not a typical line array column loudspeaker. Its advanced LAPS (Line Array-Point Source) 2-way design provides a very short near-field extent and robust far-field performance. The XT-Spyke is also UV resistant, scratch resistant, chlorine resistant, and weather resistant with professional-grade components for long-lasting performance and durability. Frequency tapering of low and high frequency pass bands allow the XT-Spyke to maintain a more consistent ratio of array height to radiated wavelength, ensuring a stable vertical beamwidth that out performs many other single box line arrays. Featuring eight 3.0-inch woofers and eight 1-inch high frequency drivers for extremely smooth high frequency response, the XT-Spyke achieves superb coverage in an enclosure measuring only 37.37″ x 6.80″ x 5.50″ and includes pole mounting options
