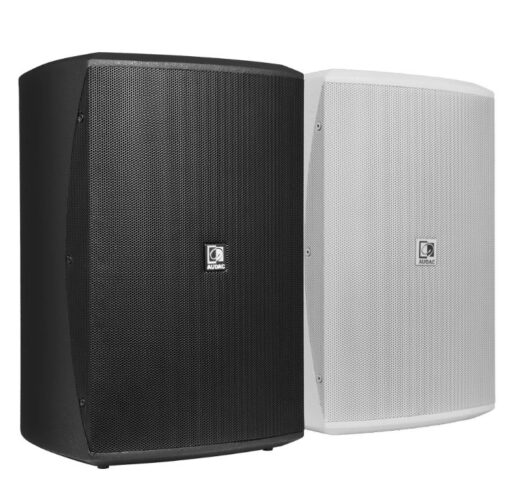

The XENO series is a loudspeaker range specifically designed for fixed audio installations in modern environments, offering two different sizes of contemporary and elegant designed products. What makes them so unique is their full range audio design, allowing them to be used without additional bass cabinet.
The XENO8 is the 8” version, with a 1” dome tweeter and an 8” Mid /Low-frequency driver, ensuring a true-to-nature, high-fidelity reproduction of music and speech. This wooden cabinet is fitted with a slim and elegant front grill. This makes the loudspeaker suitable for environments where the music is the key element, but without making any compromises on its design. This ranges from modern and trendy clubs to pubs and dance bars where that little extra punch and depth in the music is appreciated.
The sleek and elegant design guarantees the loudspeaker to blend in with any environment. It delivers a powerful full-range sound with an RMS rating of 120 Watt and a maximum of 240 Watt. The advanced integrated protection circuit avoids tweeter damaging when an overload occurs.
The included mounting bracket makes it possible to mount the loudspeaker in both horizontal and vertical position, up to 20°, making it suitable for every application. The connections can be made on the rear side of the loudspeaker with a Euro Terminal block connector. Ships with 2mm safety cable with a PVC jacket. All XENO series speakers are available in black (/B) or white (/W).
- Vertical and horizontal mounting (rotatable logo)
- Zinc alloy mounting bracket included
- Terminal block connection
- 1″ Dome tweeter
- 8″ Low frequency loudspeaker
- 20° incline angle
Technical specifications
XENO8/B | Black version |
XENO8/W | White version |
System specifications
Speaker type | 2-way | |
Peak power handling | 480 W | |
Program power handling | 240 W | |
RMS/AES power handling | 120 W | |
Impedance | 8 Ω | |
Sensitivity (1W/1m) | 89 dB | |
Sound Pressure (Max. W/1m) | 110 dB | |
Frequency | Response (± 3 dB) | 60 Hz – 18 kHz |
Range (-10 dB) | 50 Hz – 20 kHz | |
Crossover | Frequency | 2.5 kHz |
Type | Passive built-in | |
Dispersion | Horizontal | 120° |
Vertical | 120° | |
Connectors | 4-pin Euro Terminal Block (Pitch – 5.08 mm) | |
Drivers | 1” Dome tweeter | |
8” MF / LF Woofer |
Product Features
Dimensions | 250 x 380 x 262 mm (W x H x D) | |
Weight | 7.800 kg | |
Operating temperature | -20 °C ~ 60 °C | |
Construction | Medium Density Fibreboard with structured coating | |
Front finish | Steel grill | |
Mounting & handling | 2-way Revolving mounting bracket | |
Colours | Black (RAL9004) (XENO8/B) | |
White (RAL9003) (XENO8/W) | ||
Accessories | Included | 4-pin Euro Terminal Block (Pitch – 5.08 mm) |
2-way Revolving mounting bracket | ||
Optional | WBP100 Wall bracket mounting plate |
