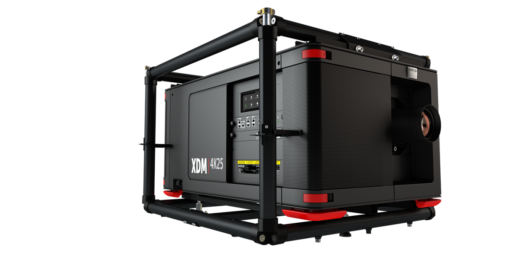

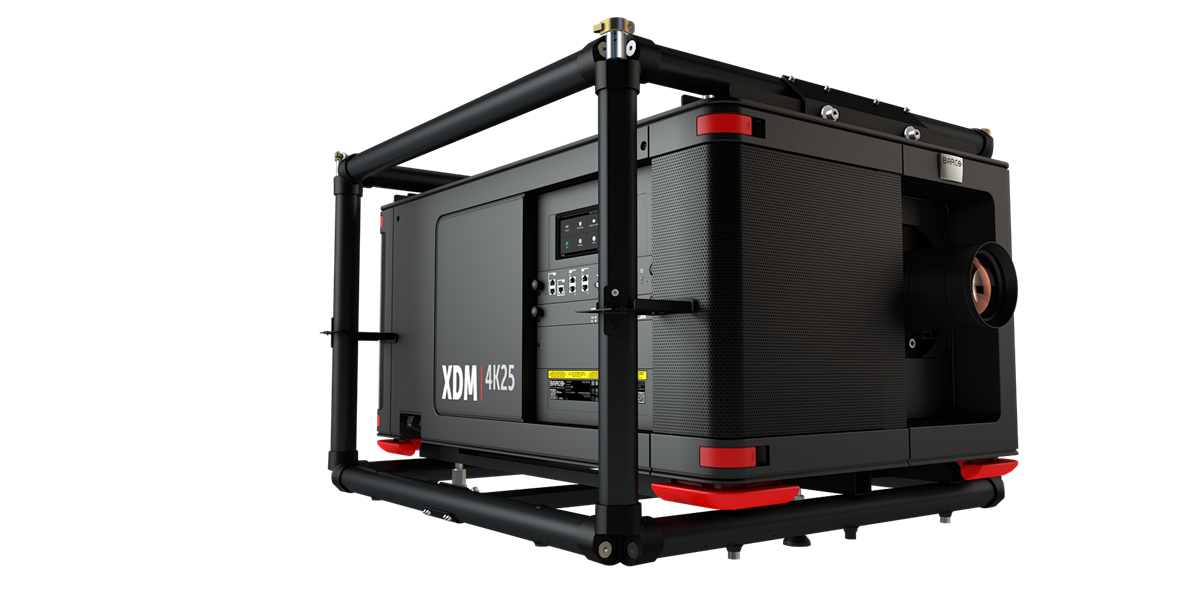

XDM-4K25
23,500 lumens, native 4K, 3-chip DLP RGB laser projector
The XDM-4K25 boasts 25,000 lumens of brightness, native 4K (4096×2160) resolution and a pure RGB laser light source. Suited to themed entertainment applications that require, and make use of, the higher resolution and color performance, the XDM-4K25 creates those WOW moments that keep visitors coming back for more.
Images that speak
Offering visitors crisper, more realistic images and with greater impact that create memorable moments. XDM-4K25 can create outstanding image quality that immerses audiences in the content for a truly believable experience allowing them to be engaged like never before; making the impossible possible.
Cost-saving design
The XDM-4K25 was designed with the priorities of the owner/operator in mind. They provide consistently high performance over a long period of time with minimal interventions and service required. And if the unthinkable should happen, the XDM-4K25 has easy to replace modules that can be quickly and easily swapped on-site by a trained technician. Even within the RGB Laser light source itself, individual ‘laser plates’ can be exchanged which means that maintaining the XDM-4K25 is both straight forward and cost effective.
Future-proof
The high-brightness, 4K native resolution and RGB Laser light source make the XDM-4K25 one of the most cutting edge projectors out there. Ready to satisfy the growing demands within the content creation community.
The new XDM-4K25 can be managed through Barco’s cloud-based Projector Management platform with remote health condition monitoring which guarantees 24/7 uptime and increases the reliability of the installation
Specifications
| Native brightness | 23,500 lumens (typical) |
|---|---|
| Native contrast ratio | 2300:1 (typical) |
| Digital MicroMirror Device™ | 3x 0.98” DC4K TRP |
| Resolution | native 4K: 4096 x 2160 |
| Color gamut | DCI P3 (98.5% of Rec.2020; when measured in xy-color coordinates) – RGB light source |
| Prime lenses | 0.38:1; 0.64-0.82:1; 0.8 -1.16:1 ; 1.09 -1.40:1; 1.3 -1.8; 1.8 -2.4:1; 2.4 -3.9:1 ; 3.9-6.5:1; 6.5-9.7:1 TLD+ lenses |
| Long-term brightness stability | 40,000 hrs @ average usage conditions |
| Housing | integrated cooling design and patented sealed optical assembly |
| Dimensions (WxLxH) | Projector incl feet: 710 x 1070 x 547 mm/ 27,95 x 42,13 x 21,54 inches |
| Weight | 105kg / 231.5lbs |
| Power requirements | single phase or triple phase 200-240V 16A |
| Heat load (max. power) | 7750 BTU/hr |
| Exhaust airflow | 400CFM |
| Ambient temperature | 40°C/104F Max. |
| Ambient humidity | 85% Max. |
| Inputs | HDMI 2.0 |
| Input Frequencies | max. 4096 x 2160 @ 60Hz |
| Noise Level | 50dB(A) @ 1m and @ 25°C ambient temperature |
| 3D systems | Active glasses systems and polarization systems on silver screens are supported. Color separation systems are not supported. |
| Safety requirements | Class 1 risk group 3 |
| Power consumption | 2.4kW (3W in Eco standby mode) |
| User interface | Touch Display and/or web based |
