The material used for the mounting bracket on the outdoor versions has been improved by using aluminum, making the WX series MK2 even more resistant to extreme weather conditions. The bracket allows users to mount the WX502/O vertically as well as horizontally.
Special treatment with powder coating provides the necessary protection for all weather conditions. Because of this, the brackets can pass the 96 hours salt-spray test. A drain hole behind the aluminum grill allows water to flow out and the rotatable 5 pole waterproof connector with power tap selection makes sure that the speaker meets the IP55 standard. The included mounting bracket allows horizontal and vertical mounting as well as focusing of the speaker, and an integrated advanced protection network protects the tweeter against overload.

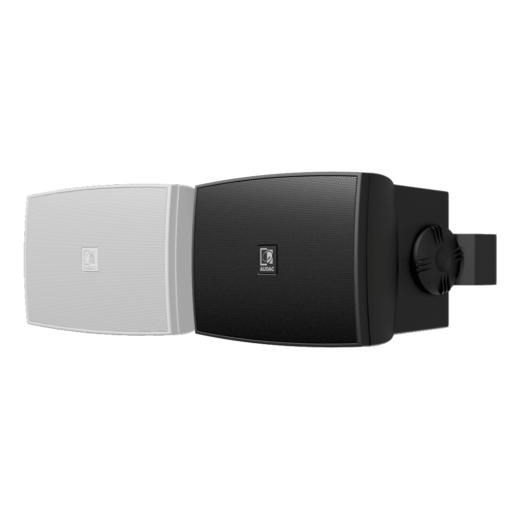

VARIANTS

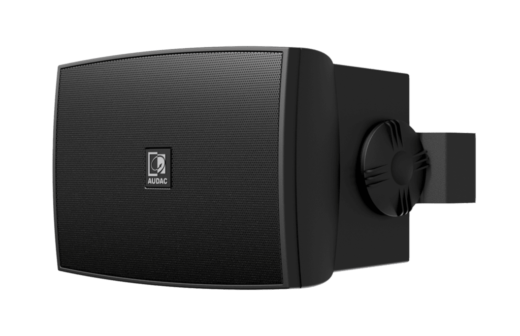

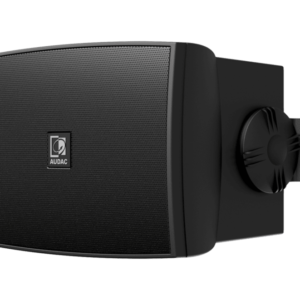

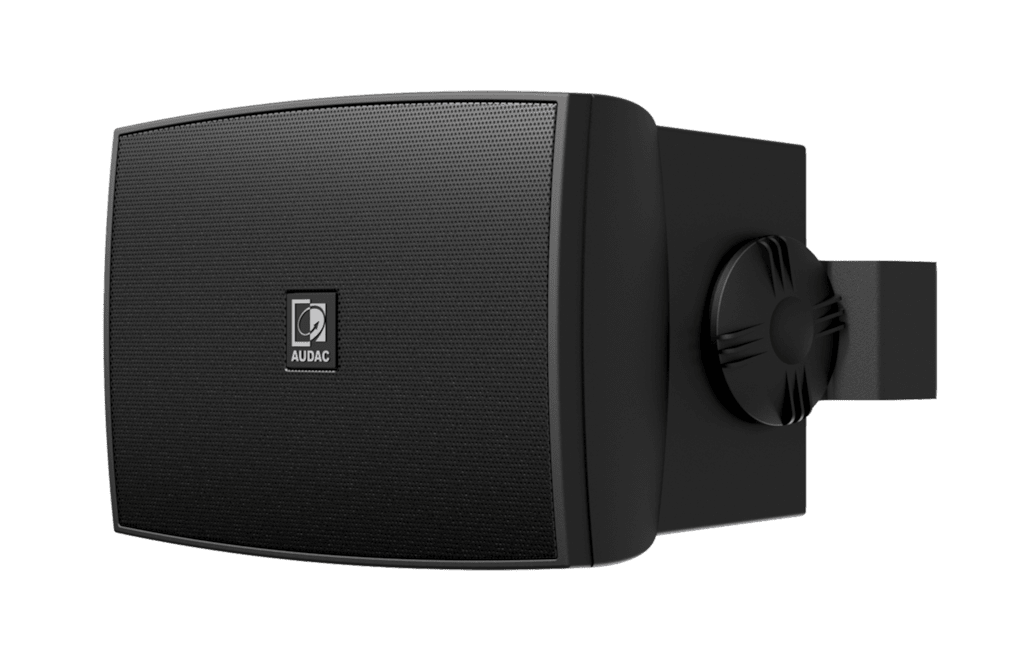

- WX502MK2/OB – Outdoor black version

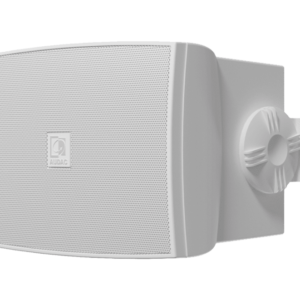

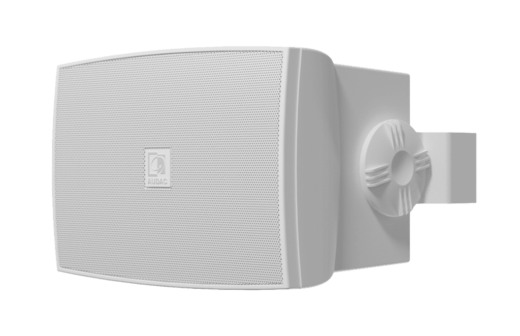

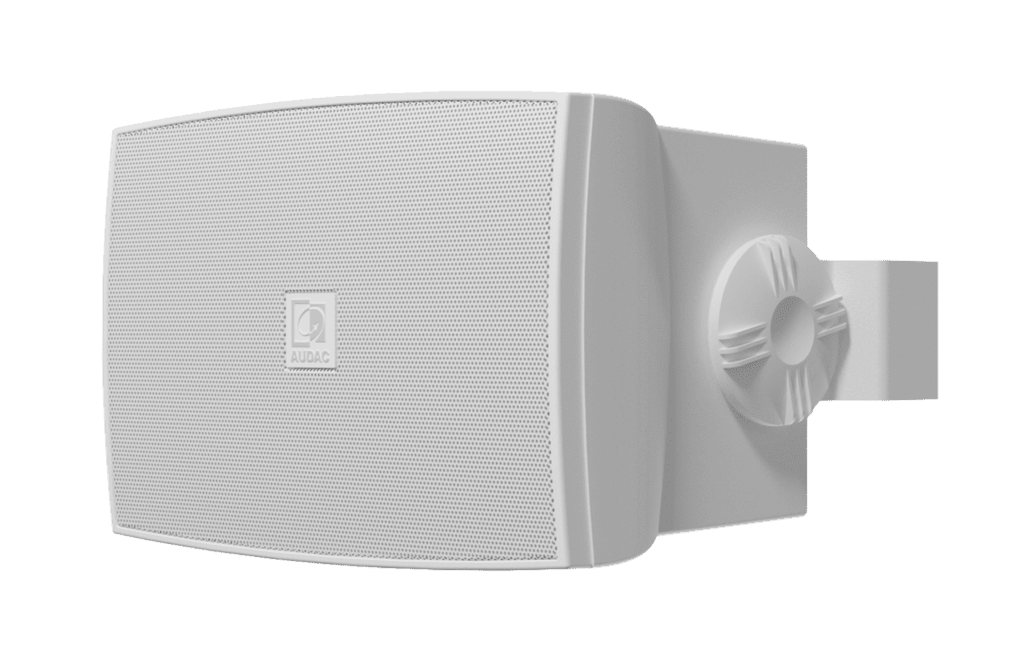

- WX502MK2/OW – Outdoor white version
- Discontinued WX502/OB – Outdoor black version
Replaced by WX502MK2/OB - Discontinued WX502/OW – Outdoor white version
Replaced by WX502MK2/OW
SYSTEM SPECIFICATIONS | ||||
---|---|---|---|---|
Connectors | Waterproof AWX-5 connector | |||
Impedance | 8 Ω | |||
Ingress Protection rating | IP55 | |||
Max. Power | 100 W | |||
Sensitivity (1W/1m) | 87 dB | |||
Speaker type | 2-way | |||
RMS Power | 50 W | |||
Crossover | Frequency | 2.5 kHz | ||
Type | Passive built-in | |||
Drivers | HF | 1” | ||
LF | 5” | |||
Frequency | Range (-10 dB) | 55 Hz – 20 kHz | ||
Response (± 3 dB) | 70 Hz – 18 kHz | |||
Sound Pressure (Max. W/1m) | @ 100 V | 102 dB | ||
@ 8 Ω | 104 dB | |||
Dispersion | Horizontal | 110° | ||
Vertical | 110° | |||
Line Transformer Tappings | 1 | 125 Ω – 100 V / Not used – 70 V / 40 W | ||
2 | 250 Ω – 100 V / 40 W – 70 V / 20 W | |||
3 | 500 Ω – 100 V / 20 W – 70 V / 10 W |
PRODUCT FEATURES | ||||
---|---|---|---|---|
Dimensions | 212 x 147 x 136 mm (W x H x D) | |||
Weight | 2.540 kg | |||
Operating temperature | -25 °C ~ 70 °C | |||
Construction | ABS | |||
Mounting & handling | Mounting bracket | |||
Front finish | Aluminium grill | |||
Colours | Black (RAL9005) (WX502MK2/OB) | |||
White (RAL9003) (WX502MK2/OW) | ||||
Accessories | Included | Mounting bracket | ||
5-pin connection cable (70 cm) | ||||
Optional | AU570120005 – 5-pin cable 0.5 m | |||
AU570120025 – 5-pin cable 2.5 m | ||||
AU570120050 – 5-pin cable 5 m |
