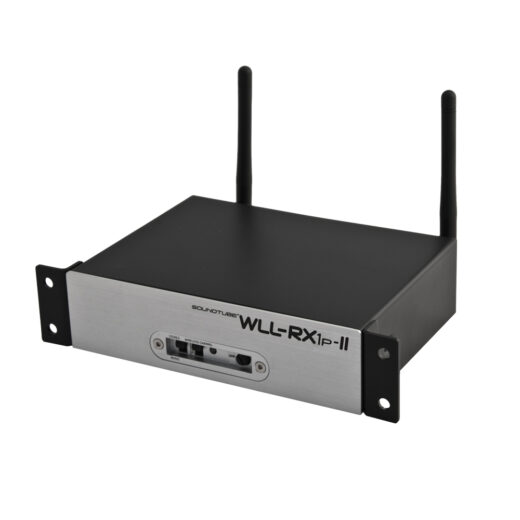

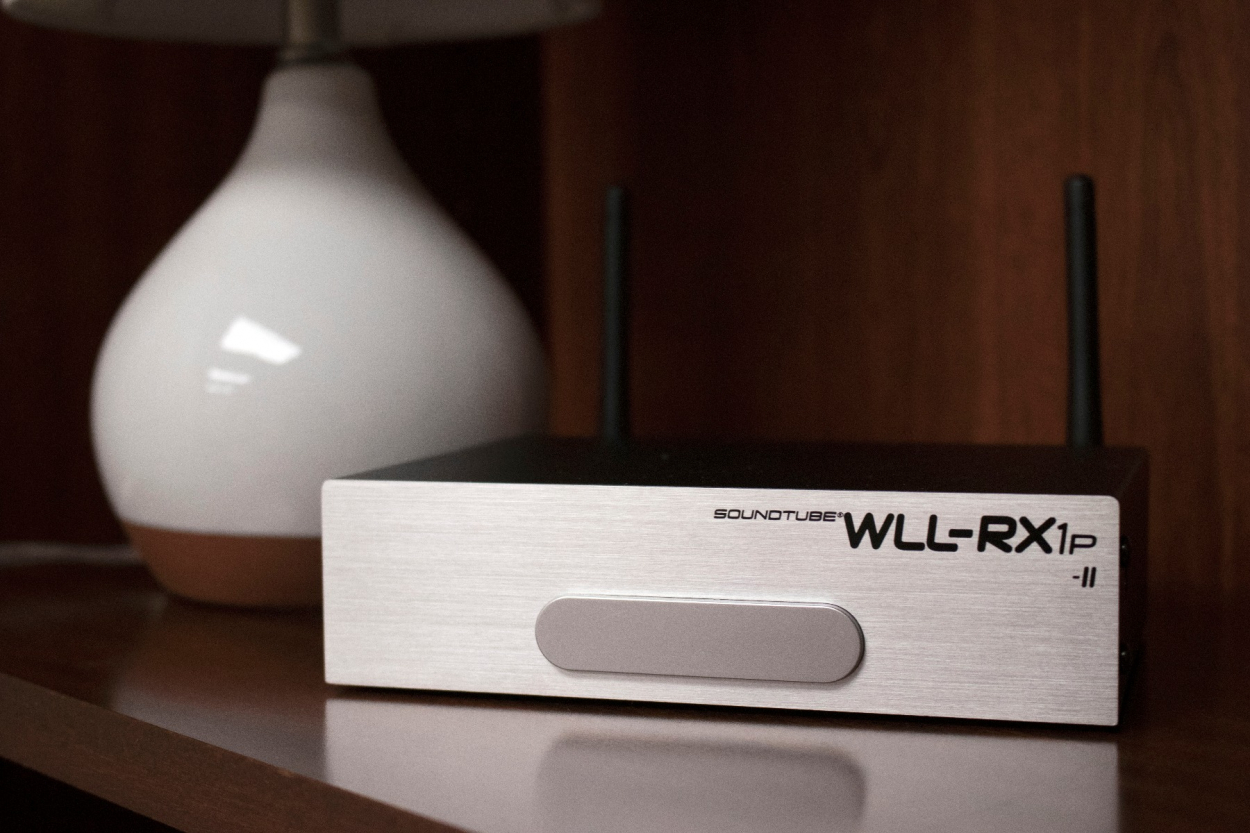

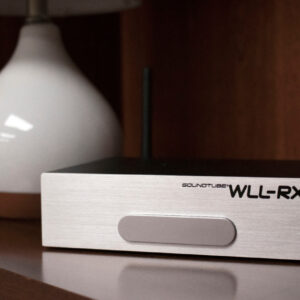

WLL-RX1P-II Wireless Reciever

SoundTube WLL Tri-band Uncompressed Wireless Receiver System

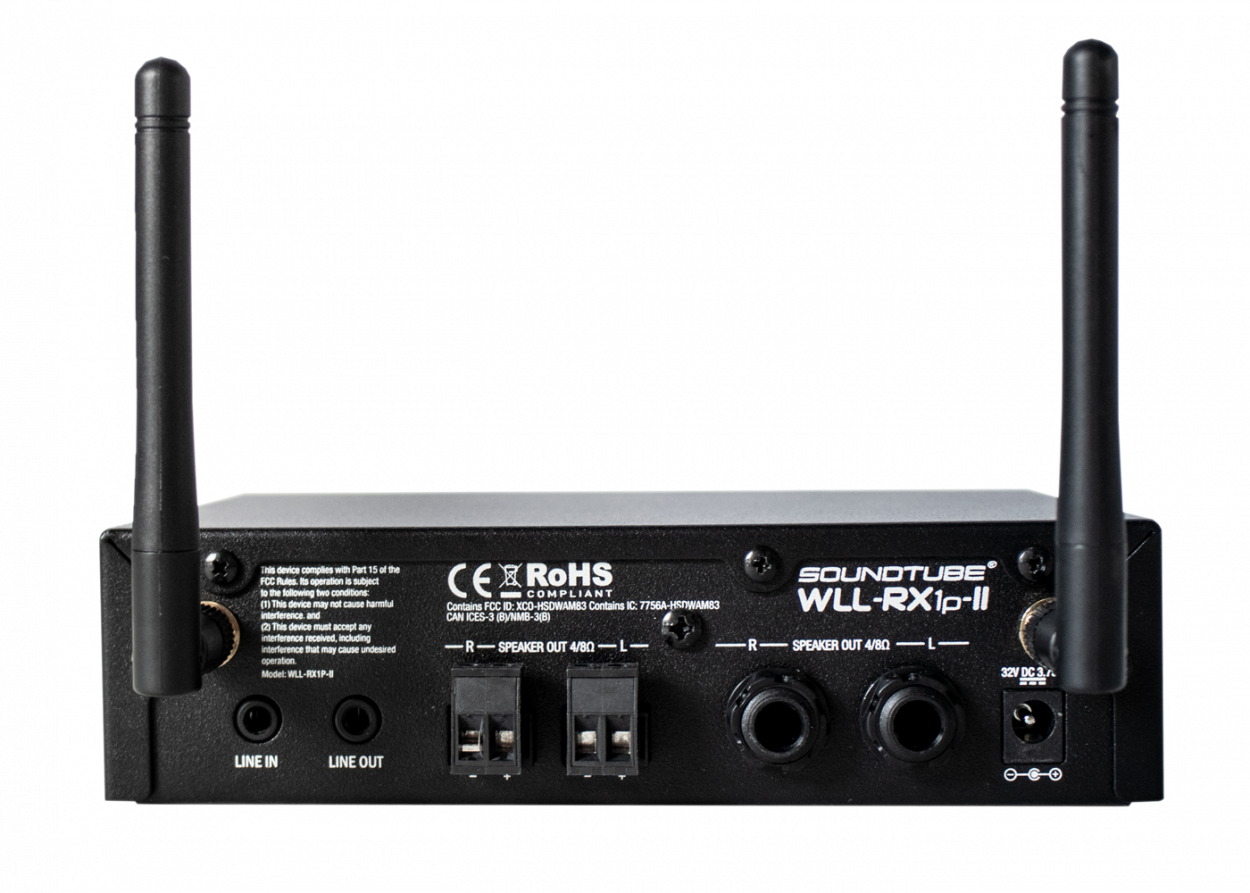

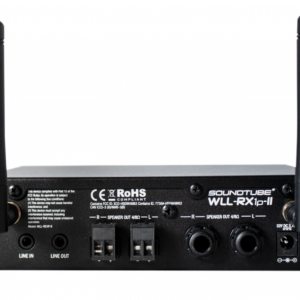

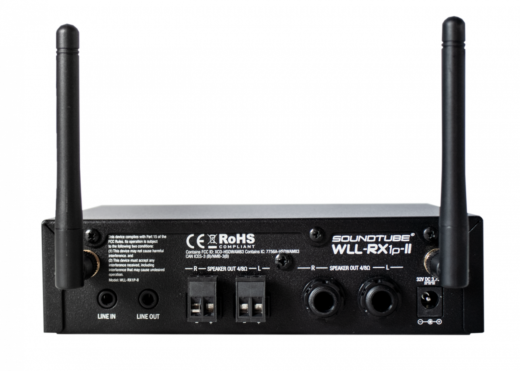

The WLL-RX1p wireless receiver unit contains a 2-channel 50W/ch Class D amplifier which will power up to two speakers. An additional 5 receivers (for a total of 6) may be ordered to accompany a single transmitter. Two additional transmitters can be used with separate frequencies with a total of up to 18 receiver units. Each transmitter/receiver contains 3 RF channels to minimize interference from other devices. Each channel contains 3 bands, alternating between them to preemptively counteract interference, keeping the signal clear and latency less than 20ms. Receiver output options include Push-On phoenix connectors or 1/4″ connections. The WLL-RX1P also includes stereo line output for connecting auxiliary audio components. A Local Audio source may also be used at the receiver via stereo mini which mutes the wireless signal when connected.
