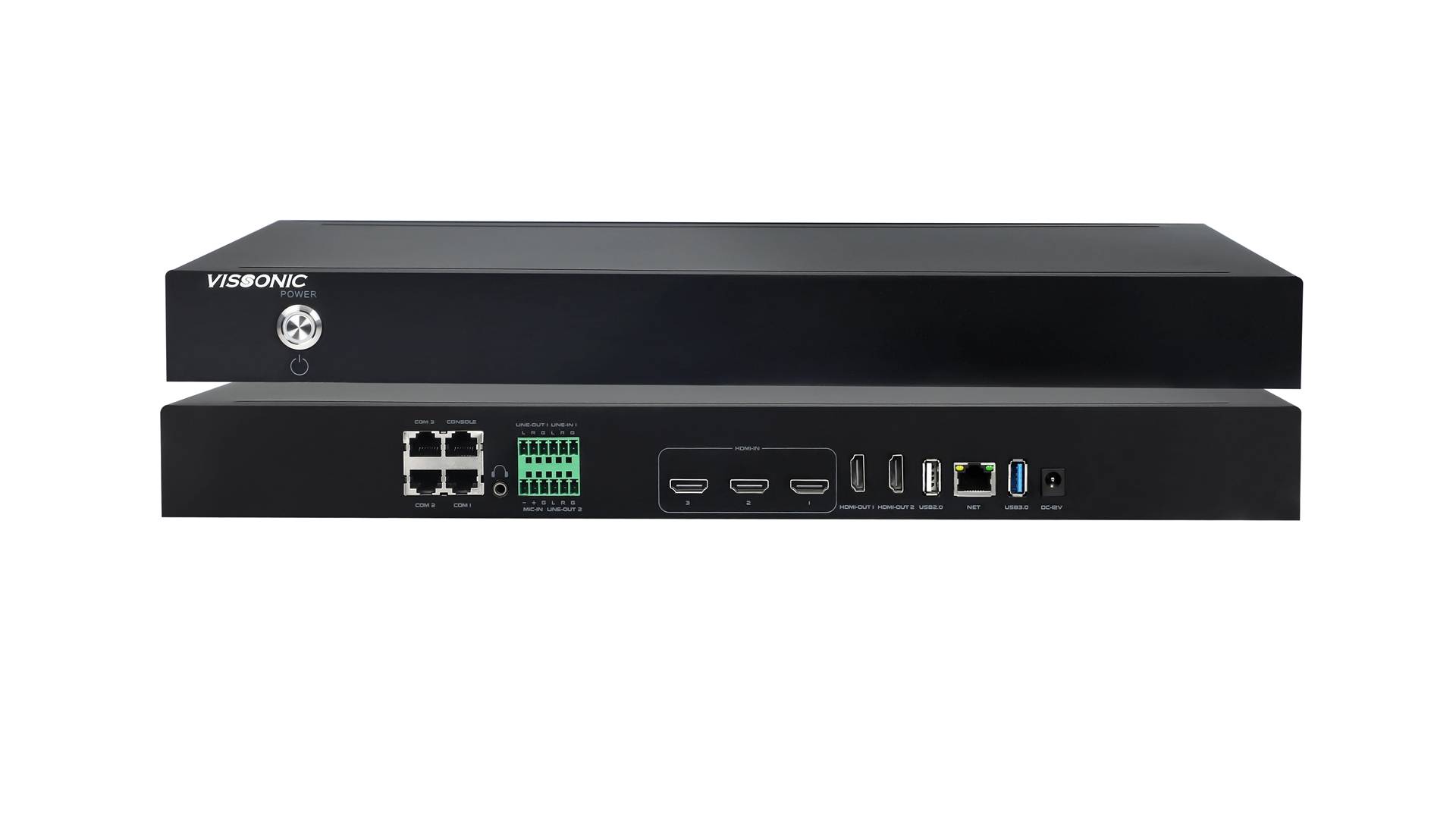

VIS-CRS02/03/05

●Compact portable equipment, integrated high-definition video, audio, VGA, USB and other input and output interfaces.
●Support access HD and SD signals, automatic identification signal combined layout pattern of their choice, can be very convenient for video, audio and computer screen simultaneously recording signals and local preview playback.
●Recording and generating common MP4 video files.
●You can use PC manage and control system.
●HDMI, VGA dual output design. HDMI output video conference screen, VGA output directed interface.
●Working with conference controller DCP2000 to get the camera auto-tracking and recording system
●Live broadcast under LAN or Ethernet

RS-422/RS232: 5 pins 3.8mm phoenix connector, RS-422:1=RX+,2=RX-,3=GND,4=TX+,5=TX-

RS-232:1=RX,3=GND,4=TX

Keyboard control:5 pins 3.8mm phoenix connector, RS-485:1=TX+,2=GND,3=TX-

RJ45 connector 100m TCP/IP protocol

power supply: AC 90-240V / 50-60HZ

Chassis Specifications:1U

Size:482 (L) x 200 (W) x45 (H) mm

Weight:2Kg
