SP20
฿5,052.00
SOUND PROJECTOR

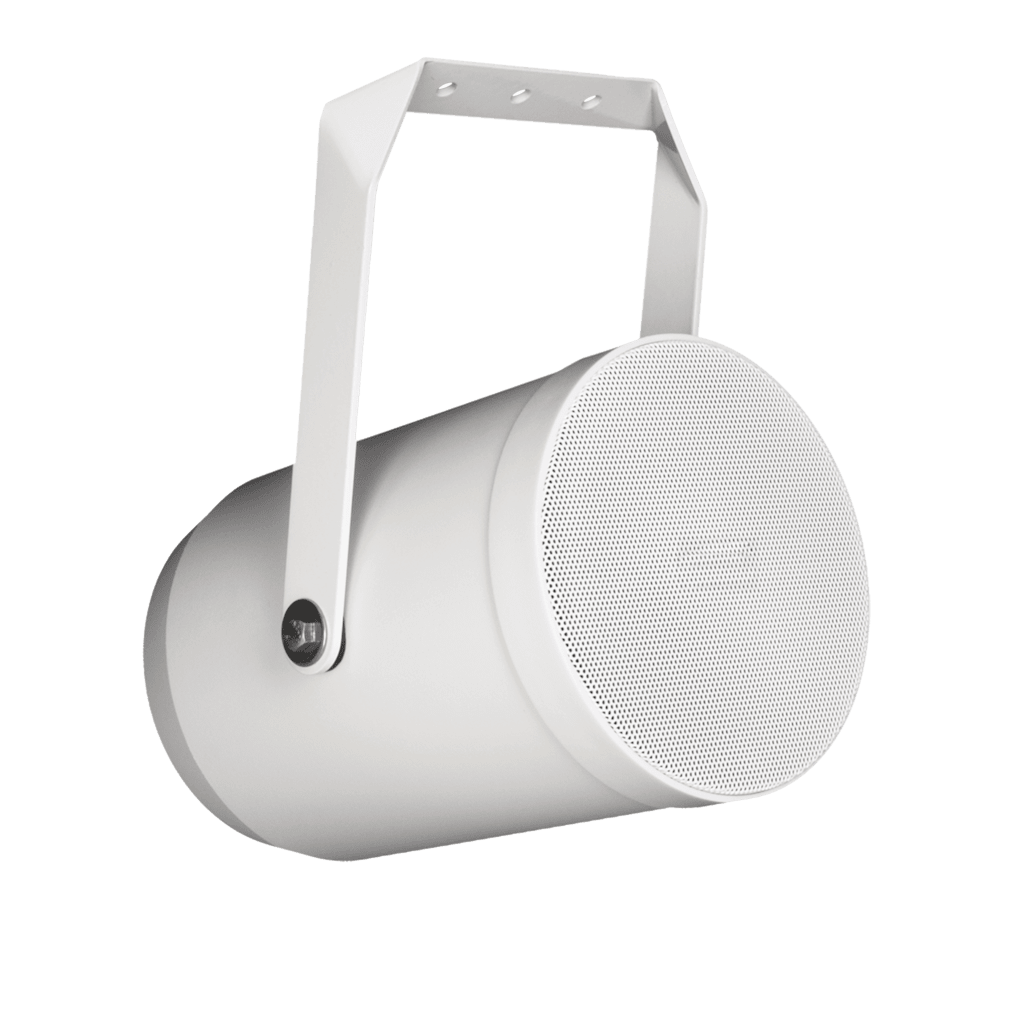

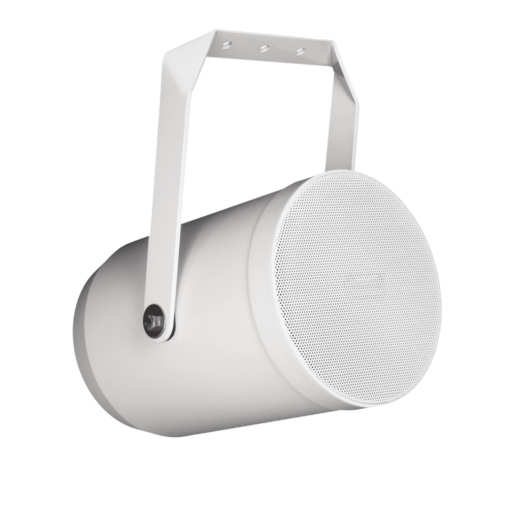

The SP20 is a high-efficiency sound projector with an RMS power of 20 Watt, designed to provide good speech intelligibility and background music in a wide variation of applications. It is fitted with a 5″ broadband loudspeaker and the power is adjustable by the integrated 100V line transformer with power taps for 20 Watt, 10 Watt, 5 Watt and 2.5 Watt at 100 Volt. The speaker can be easily mounted to any wall or ceiling by using the stainless steel mounting bracket. Thanks to the weatherproof treated ABS housing with white weatherproof coated aluminum grill, the speaker has a IP rating of 56 whereby it can be used indoor as well as outdoor for a wide variation of applications.
| SYSTEM SPECIFICATIONS | ||||
|---|---|---|---|---|
| Max. Power | 40 W | |||
| RMS Power | 20 W | |||
| Sensitivity (1W/1m) | 92 dB | |||
| Sound Pressure (Max. W/1m) | 104 dB | |||
| Impedance | 8 Ω | |||
| Dispersion | 180° | |||
| Directivity Q factor | 2.60 | |||
| Ingress Protection rating | IP56 | |||
| Connectors | 75 cm connection cable | |||
| Drivers | 5” | |||
| Line Transformer Tappings | 1 | 20 W / 500 Ω | ||
| 2 | 10 W / 1000 Ω | |||
| 3 | 5 W / 2000 Ω | |||
| 4 | 2.5 W / 4000 Ω | |||
| Frequency | Response (± 3 dB) | 130 Hz – 15 kHz | ||
| PRODUCT FEATURES | ||||
|---|---|---|---|---|
| Dimensions | 138 x 204 mm (Ø x D) | |||
| Weight | 1.900 kg | |||
| Operating temperature | -20 °C ~ 60 °C | |||
| Construction | ABS | |||
| Mounting | Stainless steel U bracket | |||
| Front finish | Aluminium grill | |||
| Colours | White | |||
| Accessories | Included | Mounting bracket | ||
