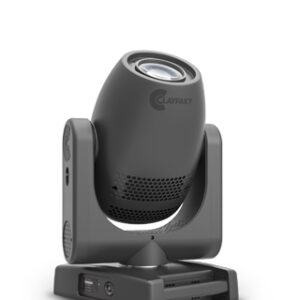

Sharpy Plus Aqua CD3002
The powerfully bright IP66 Sharpy Plus that is not afraid to play in the rain
Designed in the spirit of the award-winning Sharpy Plus platform, the SHARPY PLUS AQUA luminaire is an IP66-rated moving head fixture perfect for outdoor events, touring, permanent installations, cruise ships, and much more. This new fixture maintains the same performance features of its predecessor, the Sharpy Plus luminaire, in a new weather-resistant package; giving you greater flexibility in a single luminaire.
When designing a weather-resistant moving light, performance and features are often sacrificed. Not with the SHARPY PLUS AQUA luminaire. Claypaky addressed and enhanced the design of the SHARPY PLUS AQUA in critical areas to make sure this fixture maintains the brightness, efficiency, and performance you need and expect.
The cooling system was redesigned and optimized specifically for this new outdoor configuration for the Osram Sirius HRI® 330W X8 lamp currently used in the Sharpy Plus fixture. This lamp is a proven performer in its reliability, output, and being consistent in both brightness and colour temperature.
Just like the Sharpy Plus, the SHARPY PLUS AQUA fixture offers two distinct operating modes – beam or spot. The 3° to 36° zoom covers the entire zoom range linearly with a beam that is always perfectly sharp and uniform in either mode. The SHARPY PLUS AQUA offers the same complement of prisms, rotating and static gobos, colour wheels, CMY colour mixing, and more. So, if you need to use both the Sharpy Plus and SHARPY PLUS AQUA on a production, you can be assured of a consistent look and performance from these fixtures.
The SHARPY PLUS AQUA is also an appealing unit when you consider the value. At a price point every rental company will appreciate, you can take home a light with truly excellent performance, which you can use in a wide range of environments and entertainment venues, whether your requirements are for a beam or spot fixture, for indoor or outdoor applications.
- Moving head fixture for outdoors (IP66 protection rating)
- Source: Osram Sirius HRI® 330W X8 arc lamp
- Two projection modes: Beam and Spot
- 3°- 36° linear zoom in both modes
- CMY colour mixing | 15 colours on 3 wheels | 2 CTO filters
- Rotating Gobo Wheel: 8 glass gobos
- Static Gobo Wheel: 18 static gobos (including 6 beam reducers)
- Rotating 4-facet prism on dedicated channel
- Rotating 8-facet prism on dedicated channel
- Animation Wheel
- Linear, soft edge frost filter
- Dimmer and stop/strobe
POWER SUPPLIES
Operating Voltage: 100-240V, 50/60 Hz
Power Supply: Electronic auto range with active PFC
INPUT POWER
Max Power consumption: 560VA
LIGHT SOURCE TYPE
330W X8 HRI Sirius Osram Arc Lamp
Colour Temperature: 8000K ±300
Lamp average lifetime: 1500 hrs
*It may vary depending on various factors, as type of use and environment
PHOTOMETRIC DATA
Zoom range: 3°- 36°
12000 Lumen Output
Front lens diameter: 135mm
High efficiency optical system
NOISE LEVEL
Lamp Off – Dimmer @ 0%: 43.0 dBA
Lamp On – Dimmer @ 100%: 54.5 dBA
CONTROL and CONNECTIONS
Personalities: Single mode with 31 control channels
Integrated Wireless DMX system as standard (Wireless Solution)
Control Protocol: DMX, Art-Net, RDM, sACN.
DMX and RDM connectors: Locking 5 pin XLR IN/OUT
Ethernet port: RJ45 IN
Power connector: Power Con True1 IN
Built-in Web Server
DYNAMIC EFFECTS
Colors:
Linear CMY colour mixing
15 colors on 3 wheels (2 CTO filters)
Gobos:
1 Static gobo wheel with 18 gobos, 6 beam reducers (down to 0.5°)
1 Rotating gobo wheel with 8 HD Indexable and replaceable gobos
Ext diam.15.9mm
Image diam. 12mm
Thickness 1.1mm
Frost:
Linear soft edge frost filter
Rotating Effects:
Aluminum animation wheel with continuous rotation in both direction at variable speed
4 Facets prism with rotation in both direction at variable speed
8 Facets prism with rotation in both direction at variable speed
Movement:
Tilt: 270° – 16bit
Pan: 540° – 16bit
Accuracy: Resolution ± 0,28° (Range 0,56°)
Automatic repositioning
Fast/Standard speed selectable by Function channel
Mechanical Pan/Tilt lock for safe transportation and maintenance
Beam:
Motorized Zoom and Focus
Dimmer/Shutter :
High resolution Dimmer – 16 bit
High speed electronic Shutter and Strobe
HARDWARE and SOFTWARE
Long life self-charging battery
Display Graphic LCD backlit b/w Display
Firmware upload from another fixture
Firmware Upgrade via Web Server
Diagnostic
DMX monitoring
Remote access through RDM
CloudIO compatibility
HOUSING
Aluminum and steel structure with plastic covers
Two side handles for transportation
IP66 protection rate
IK10 impact resistance rate
WORKING POSITION
Working in any position
Hanging system: with fast-lock omega clamps (1/4 turn) on the base pn 183102/805
Optional safety chain
THERMAL SPECIFICATION
Max ambient temperature 40°C (104°F).
Min ambient temperature -10°C (14°F).
Max temperature of the external surface 90°C (194°F)
Total heat dissipation: 1128 BTU/hr ±10% / 1188 kJ/hr ±10%
SAFETY SPECS
Minimum distance of illuminated objects 3 meters (9’ 10”)
Minimum distance from flammable materials 0.2 meters (8”)
Thermally protected power supply (overheating and cooling failure)
Forced ventilation with axial fans
COMPLIANCE
In conformity with the European Directives:
• 2014/35/EU – Safety of electrical equipment supplied at low voltage (LVD)
• 2014/30/EU – Electromagnetic Compatibility (EMC)
• 2011/65/EU – Restriction of the use of certain hazardous substances (RoHS)
• 2009/125/EC – EcoDesign requirements for Energy-related Products (ErP)
• UKCA: conforms to UK legislation
• cMETus Listed
PACKAGING
Carton box + Polystyrene
Carton box + Foam shell
Flight case + Foam shell (2 positions)
WEIGHT – SIZE
37,5 Kg (82,8 lbs)
336x420mm (base dimension) – 731mm with vertical head (h)
Distance between two fixtures 700mm
ACCESSORIES
Omega clamps: 2×183102/805 (included)
Foam shell: F21319/001 (optional)
Flight case: CF1005 (optional)
Power cord: CAB0L1/802 (Included)
Safety Chain: 105041/003 (optional)
