Color | Black |
---|---|
UPC | 644216202300 |
Manufacturer | SoundTube |
Manufacturer’s Category | RSi Original Pendant |
Height | 17.23 in / 437.6 mm |
Width/Diameter | 14.82 in / 376.4 mm |
Shipping Weight | 26.4 lbs / 11.97 kg |
Carton Height | 19.5 in / 495.3 mm |
Carton Length | 18 in / 457.2 mm |
Carton Width | 18 in / 457.2 mm |
Certifications | CE, MIL Spec, RoHS, UL1480A, UL2239 |
Enclosure Properties | ABS Glass Fiber Reinforced, Injection Molded, Ported |
Enclosure Volume | 1288.3 cu in / 21111.45 cu cm |
Included Accessories | Euroblock, Hanging Hardware, Safety Cable, Terminal Weather Boot |
Optional Accessories | Black Grille (GRL-RS800-BK)|10′ Hanging Cable (AC-RS-HH-10)|20′ Hanging Cable (AC-RS-HH-20)|50′ Hanging Cable (AC-RS-HH-50)|Black Mounting Bracket (AC-RS-SM8-BK)|Connector (EUROBLOCK)|Black Weatherboot (WEATHERBOOT-L-BK)|Beam Clamp (AC-BC1)|Forged Eye Bolt (AC-FE1)|Black Split Loom Tubing (AC-SLT-10-BK)|Snap Link (AC-SL1) |
Source Inputs | 4 Pin 5.08mm Euroblock |
Coverage Angle (±6dB @ 2kHz) | 115° |
Crossover Frequency | 3.0 kHz |
Directivity Factor (Q) (Averaged 100Hz – 10kHz, @ 2kHz) | 4.7 and 5.5 |
Directivity Index (DI) dB (Averaged 100Hz – 10kHz, @ 2kHz) | 5.8dB and 7.4dB |
Frequency Response (± 10 dB) | 58 Hz – 22 kHz |
Frequency Response (± 3 dB) | 80 Hz – 22 kHz |
Grille Properties | Powder-Coated, Steel |
Low Frequency Voice Coil | 1.2 in / 30.4 mm |
Low Pass Crossover | 12 dB per octave 2nd order |
Max. Continuous Power RMS | 125W |
Max. Program Power | 250 W |
Minimum Impedance (Ω Ohms) | 5.3 Ω |
Network Type: High Pass | 12 dB per octave 2nd order |
Nominal Impedance (Ω Ohms) | 8 Ω |
Tweeter Driver | 1″ Convex Aluminum w/ BroadBeam® Waveguide |
Woofer Driver | 8″ Polypropylene Cone w/ Butyl Rubber Surround |
Sensitivity dB @ 1W/1M | 89.5 dB |
Sensitivity dB @ 2.83V/1M | 89.5 dB |
Tap Selector | Rotary Switch |
Transformer Options | 25 / 70.7 / 100 V, 8 Ohm direct |
Transformer Taps (25V/70.0V/100V) |
RS800I-BK
฿31,550.00
SoundTube RS800I Hanging Speaker in Black

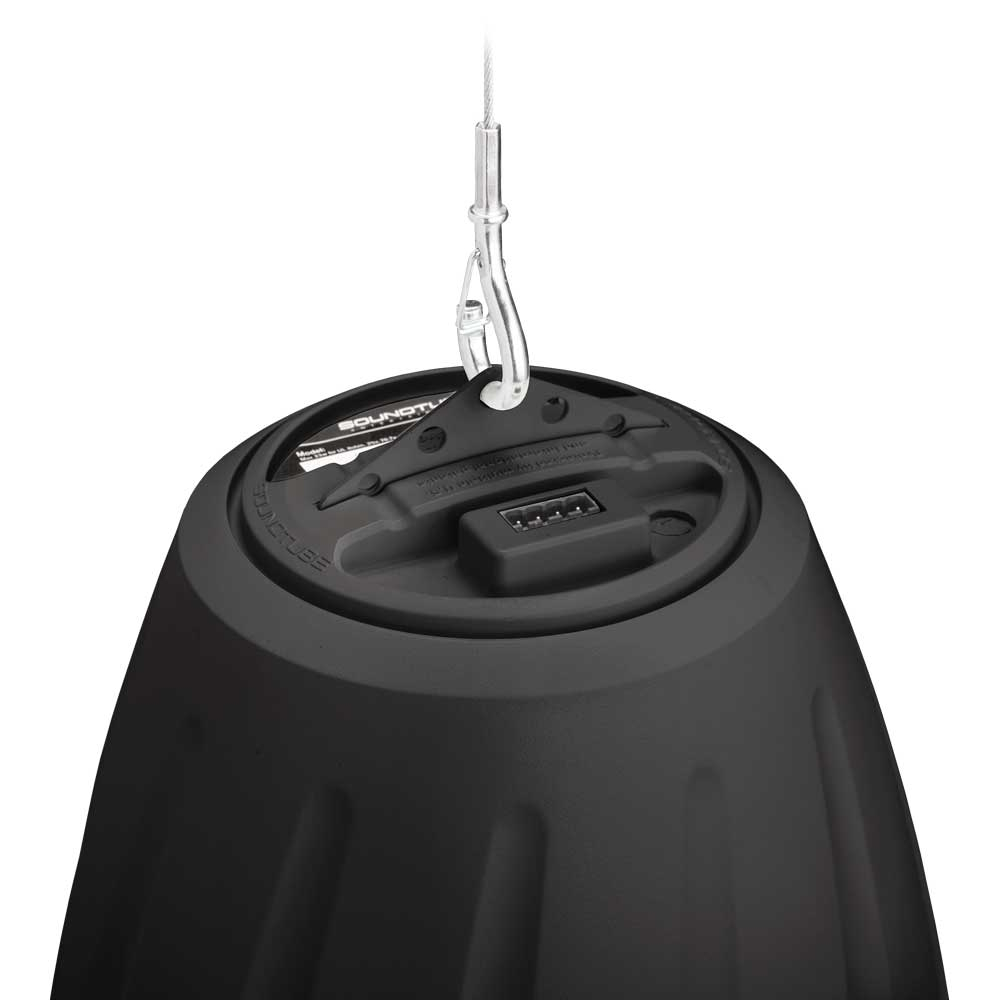

The RS800i includes an 8-inch polypropylene woofer and one 1.0 inch convex titanium tweeter with FerroFluid cooling mounted to a proprietary cast-aluminum baffle and heat sink. The two-way, ported speaker with an open-ceiling enclosure design delivers extended low-end response (58 Hz) and 105° off-axis performance (2 to 10 kHz, indepen-dently verified). SoundTube®’s proprietary BroadBeam® waveguide tweeter system delivers consistent high-performance audio across the operating bandwidth. The patented ZeroReflection™ enclosure technology provides optimal sound reproduction and cabinet rigidity. The easy access six-position selectable tap switch for 25-, 70.7- and 100-volt applications with transformer bypass position simplifies ordering and inventory tracking. The RS800i speaker design incorporates a low-profile grille, a proprietary motor-board, driver protection circuitry and a six-position tap switch with a transformer bypass position. Hanging hardware with galvanized steel cables are included and features a SpeedClamp™ self-locking cable grip for fast, easy and secure installation. Euroblock connector and terminal weather boot are included.
