RS42-EZ-BK

฿10,790.00

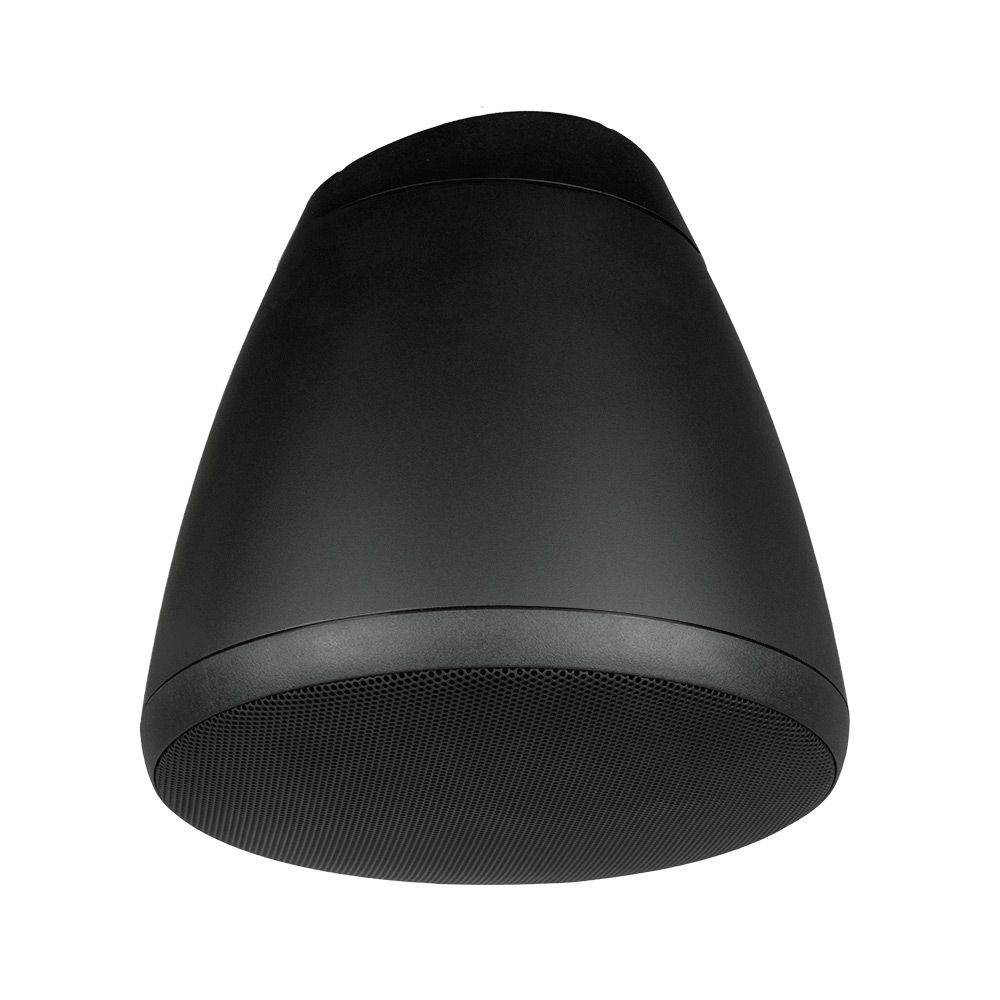

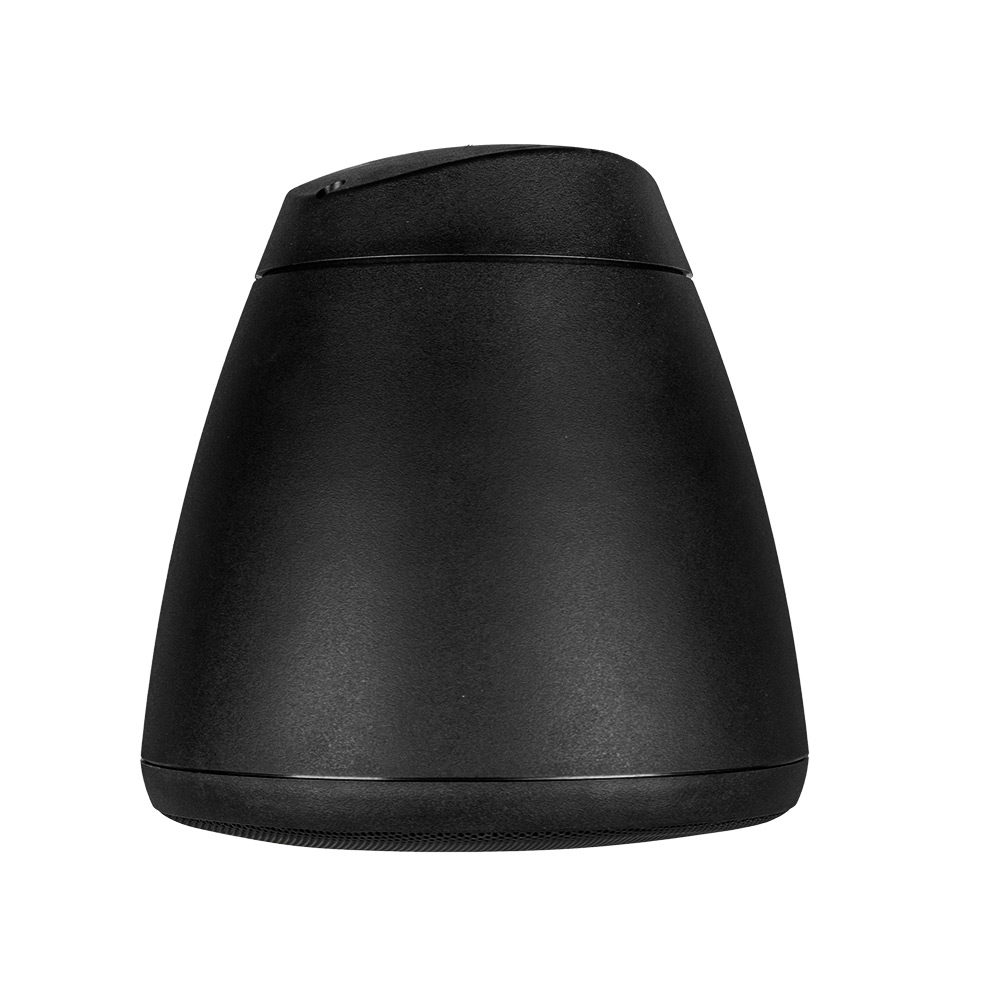

SoundTube RS42-EZ Hanging Speaker in Black

The RS42-EZ is a 4-inch, coaxial speaker with BroadBeam Ring^™ technology for consistently smooth high frequency sound, designed for open-ceiling applications. Hanging hardware includes galvanized steel cables and a built in hanging bracket with a screw on cover plate for fast, easy and secure installation. Unit may be hung or mounted direct-to-conduit via locking cover plate. The enclosure is constructed of injection molded ABS with glass fiber reinforcement for lasting durability in indoor or outdoor applications. The RS42-EZ speaker utilizes a 4 position ceramic terminal block input connector and a 6 position tap switch with transformer bypass position and has a 16 ohm impedance for easy daisy chaining in low voltage systems. The ceramic input terminal accepts up to 10 gauge plenum rated signal wire and includes thermal fuse. The RS42-EZ is suitable for use in voice alarm applications subject to EU regulations EN60849 and BS5839-8. Hanging hardware, weather plug, cover plate, and AC-RSEZ-HH-10 are included.

Description

Color	Black
UPC	644216201709
Manufacturer	SoundTube
Manufacturer’s Category	RS-EZ Economical Pendant
Height	7.86 in / 199.6 mm
Width/Diameter	7.46 in / 189.5 mm
Shipping Weight	6.1 lbs / 2.77 kg
Carton Height	11 in / 279.4 mm
Carton Length	9.5 in / 241.3 mm
Carton Width	9.5 in / 241.3 mm
Certifications	CE, EN54, RoHS, UL1480A
Enclosure Properties	Ported, Reinforced ABS
Included Accessories	Adapter, Cover Plate, Hanging Hardware, Weather Plug, Wire Gland

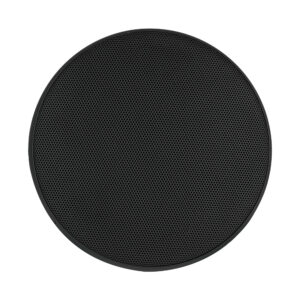

Optional Accessories	Black Grille (GRL-RS42-EZ-BK)\|10′ Hanging Cable (AC-RS-HH-10)\|20′ Hanging Cable (AC-RS-HH-20)\|50′ Hanging Cable (AC-RS-HH-50)\|Black Mounting Bracket (AC-RS-SM5-BK)\|Beam Clamp (AC-BC1)\|Forged Eye Bolt (AC-FE1)\|Black Split Loom Tubing (AC-SLT-10-BK)\|Snap Link (AC-SL1)

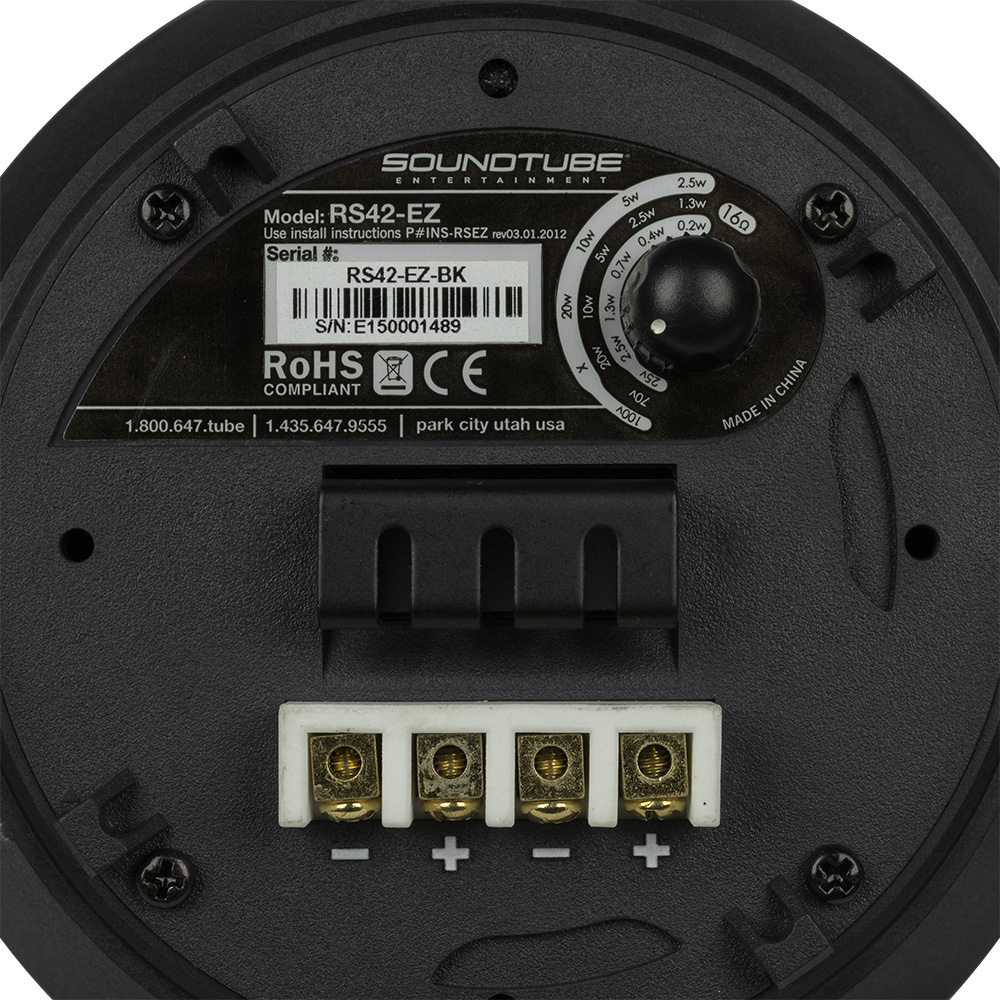

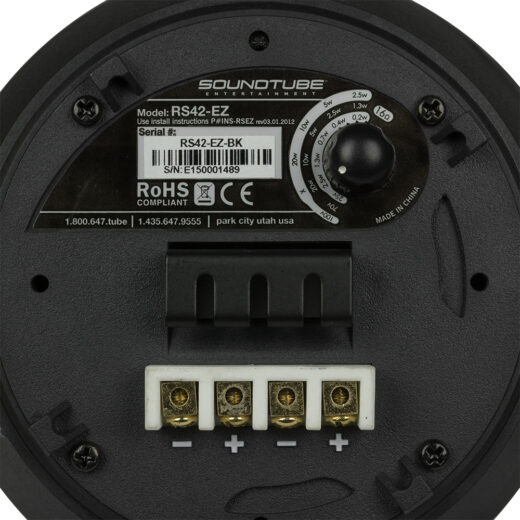

Source Inputs	4 Pin Ceramic Terminal
Crossover Frequency	4.5 kHz
Directivity Factor (Q) (Averaged 100Hz – 10kHz, @ 2kHz)	2.8 and 5.5
Directivity Index (DI) dB (Averaged 100Hz – 10kHz, @ 2kHz)	4.4dB and 7.4dB
Frequency Response (± 10 dB)	100 Hz – 22 kHz
Frequency Response (± 3 dB)	140 Hz – 22 kHz

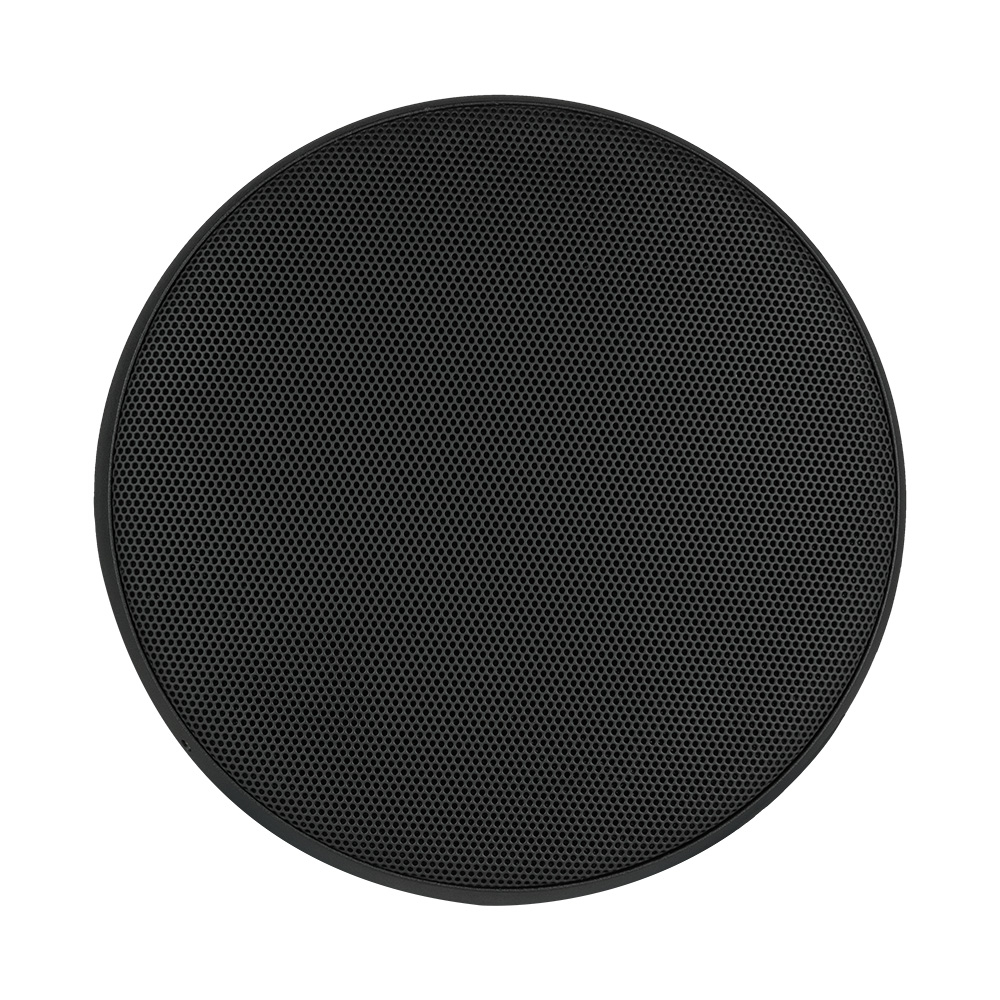

Grille Properties	Aluminum, Powder-Coated
Low Frequency Voice Coil	1 in / 25.4 mm
Low Pass Crossover	12 dB per octave 2nd order
Max. Continuous Power RMS	20W
Max. Program Power	40 W
Minimum Impedance (Ω Ohms)	16 Ω
Network Type: High Pass	6 dB per octave 1st order
Nominal Impedance (Ω Ohms)	16 Ω
Tweeter Driver	1″ Silk Dome w/ BroadBeam Ring®
Woofer Driver	4″ Polypropylene Cone with Butyl Rubber Surround
Sensitivity dB @ 1W/1M	85.4 dB
Sensitivity dB @ 2.83V/1M	81.4 dB
Tap Selector	Rotary Switch
Transformer Options	25 / 70.7 / 100 V, 16 Ohm direct
Transformer Taps (25V/70.0V/100V)	2.5W/20W/20W
