Color | White |
---|---|
UPC | 752830443280 |
Manufacturer | SoundTube |
Manufacturer’s Category | RS-EZ Economical Pendant |
Height | 4.94 in / 125.4 mm |
Width/Diameter | 4.35 in / 110.5 mm |
Shipping Weight | 3 lbs / 1.36 kg |
Carton Height | 6.75 in / 171.45 mm |
Carton Length | 10 in / 254 mm |
Carton Width | 6.75 in / 171.45 mm |
Certifications | CE, RoHS, UL1480A |
Enclosure Properties | ABS Glass Fiber Reinforced, Injection Molded, Sealed |
Enclosure Volume | 60 cu in / 983.22 cu cm |
Included Accessories | Cover Plate, Hanging Hardware, Wire Nuts |
Optional Accessories | White Grille (GRL-RS31-WH)|White Split Loom Tubing (AC-SLT-10-WH) |
Source Inputs | Terminal Strip |
Coverage Angle (±6dB @ 2kHz) | 45° |
Directivity Factor (Q) (Averaged 100Hz – 10kHz, @ 2kHz) | 4.9 and 7.1 |
Directivity Index (DI) dB (Averaged 100Hz – 10kHz, @ 2kHz) | 5.1dB and 8.5dB |
Frequency Response (± 10 dB) | 120 Hz – 22 kHz |
Frequency Response (± 3 dB) | 170 Hz – 14 kHz |
Grille Properties | Aluminum, Powder-Coated |
Low Frequency Voice Coil | 0.75 in / 19 mm |
Max. Continuous Power RMS | 20W |
Max. Program Power | 40 W |
Mounting Depth | 3.81 in / 96.8 mm |
Nominal Impedance (Ω Ohms) | 8 Ω |
Fullrange Driver | 3″ Polypropylene driver with butyl rubber surround |
Sensitivity dB @ 1W/1M | 85 dB |
Sensitivity dB @ 2.83V/1M | 85 dB |
Tap Selector | Terminal Block |
Transformer Options | 25 / 70.7 / 100 V |
RS31-EZ-T-WH
฿6,890.00

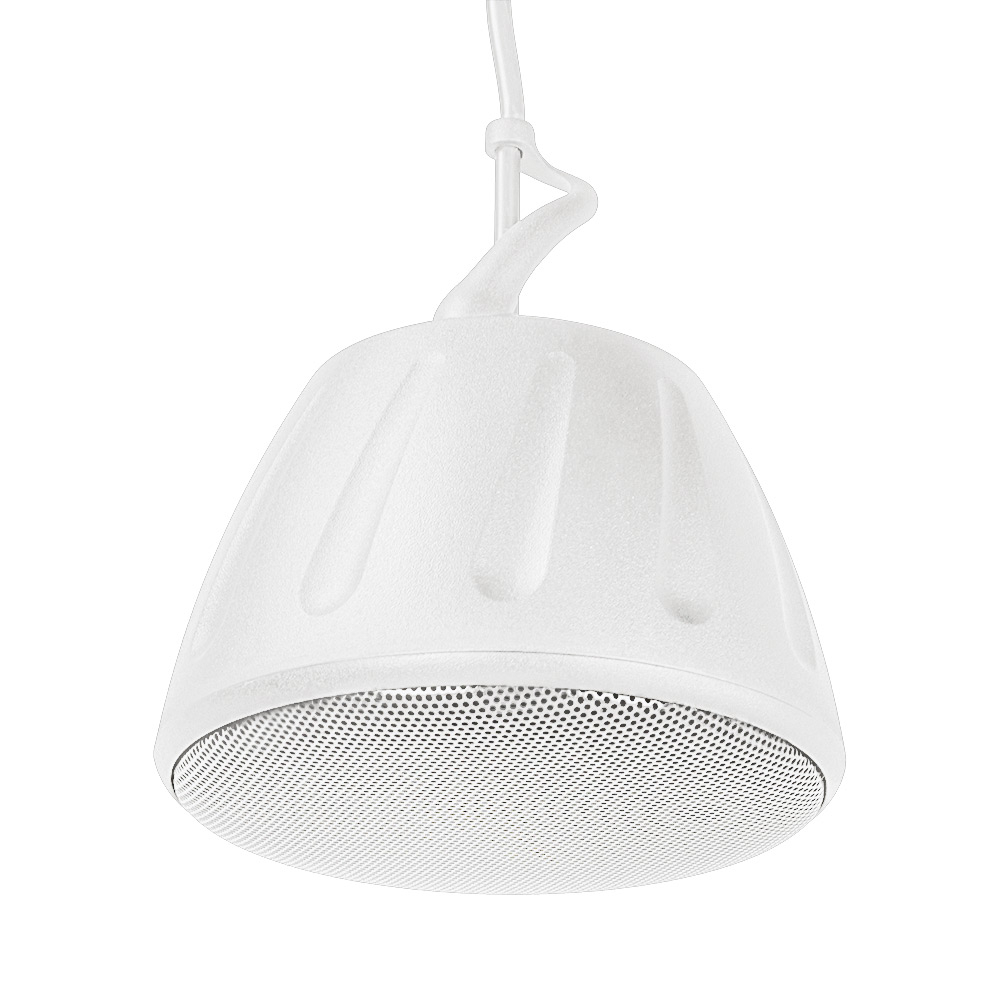

SoundTube RS31-EZ-T Hanging Speaker with added Transformer in White
The RS31-EZ-T is a premium full-range 3 inch pendant-mount speaker, with a polypropylene driver and butyl rubber surround and includes a 20-watt transform (transformer does not include 8 ohm bypass). The RS31-EZ incorporates the ultra-low profile ZeroReflection™ ABS enclosure (4.35 inch diameter by 4.35 inch height without stabilizing arm) and a 10ft length of speaker signal/hanging cable for on-ceiling applications. The RS31-EZ-T also includes a ceiling cap with a diameter of 5″ and a middle depth of 2″. The mounting plate arms inside the cover measure 4.75″ x 4.5″ and the transformer is 1.125″ x 1.625″ with a depth of 1.5″. The speaker components have been weatherized for indoor/outdoor applications. Mounting element, cover plate, and 10ft speaker signal/hanging cable are included. Includes a 20-watt transformer. Transformer does not include 8 ohm bypass.
