PMQ480
฿96,037.00
WAVEDYNAMICS™ QUAD-CHANNEL 100V POWER AMPLIFIER
The PMQ480 is a four channel Class-D 100V power amplifier with an output power of 480 Watt for each channel. The WaveDynamics™ DSP processor combination with the 2.5” LCD display gives an unmatched user experience with intuitive functions overview for easy configuration.
Acoustics can be optimized using the filters selectable between Low / High & Band Pass and the 7-Band equalizer both with adjustable frequencies and Q-factor. Other provided functions are delay and dynamic bass boost. These settings can be custom configured using the front panel of the amplifier, whereby access can be given on two different levels (User & Administrator) using password or USB-key protection.
Configuration is made simple by the loudspeaker presets and full system configurations which can be selected from a library and uploaded with a USB flash drive. This ensures the best acoustical performance with a ‘bullet-proof’ loudspeaker protection.
A great input flexibility and source compatibility is offered by the input selection matrix and the XLR and terminal block signal connections. System integration is made easy using the RS-232 control port. Optional Dante™ interface is available for the WaveDynamics™ amplifiers. The installation of this network interface allows receiving and sending of low latency, high quality audio over a standard Ethernet network.
| SYSTEM SPECIFICATIONS | |||||
|---|---|---|---|---|---|
| RMS Power | 4 x 480 W | ||||
| Signal / Noise | > 95 dB | ||||
| Crosstalk (@ 1 kHz) | > 70 dB | ||||
| Technology | Class-D | ||||
| Common mode rejection ratio | 70 dB | ||||
| Damping factor | > 200 | ||||
| Cooling | Temperature controlled FAN | ||||
| Operating temperature | 0° ~ 40° @ 95% Humidity | ||||
| Frequency | Response (± 3 dB) | 50 Hz – 20 kHz | |||
| Power | Supply | Switching mode | |||
| AC Input: 100-120V/220-240V~ 50/60Hz | |||||
| Note: Standard voltage and frequency of electricity varies from country to country. Please contact your local distributor to ensure suitable product variant voltage and frequency compatibility. | |||||
| Inputs | Sensitivity (1W/1m) | -30 dB ~ +5 dB | |||
| Impedance | 10 kΩ balanced | ||||
| Protection | Amplifier | DC Short circuit | |||
| Over heating | |||||
| Over load | |||||
| Signal limiting | |||||
| Access | User & Administrator level (Through password and USB-key protection) | ||||

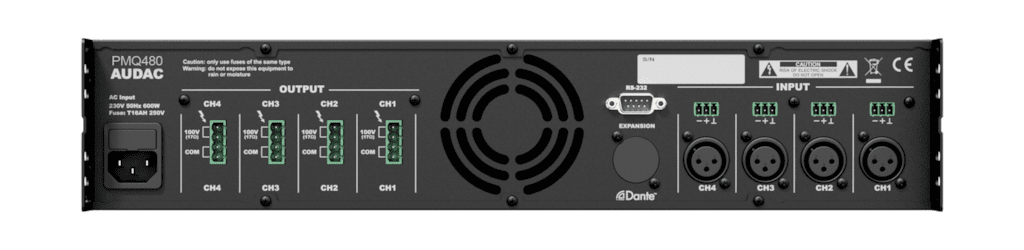

| Outputs | Connector | 4-pin Euro Terminal Block (Pitch – 5.08 mm) | |||
| Inputs | Connector | XLR & 3-pin Euro Terminal Block (3.81 mm) | |||
| PRODUCT FEATURES | ||||
|---|---|---|---|---|
| Dimensions | 482 x 88 x 420 mm (W x H x D) | |||
| Weight | 8.5 kg | |||
| Mounting | 19” | |||
| Unit height | 2 HE | |||
| Construction | Steel | |||
| Colours | Black | |||
