OverView LVD-5521C
55″ extreme narrow bezel (ENB) LCD video wall for entry level and mid-end applications
- 500 Nit brightness, ENB generation
- Superb inter-tile color and brightness
- User-friendly video-wall setup and control interface
- Sense X brightness and color automatic calibration with integrated sensors
- Fan-less solution for noiseless performance
- Optional 5-year service packages

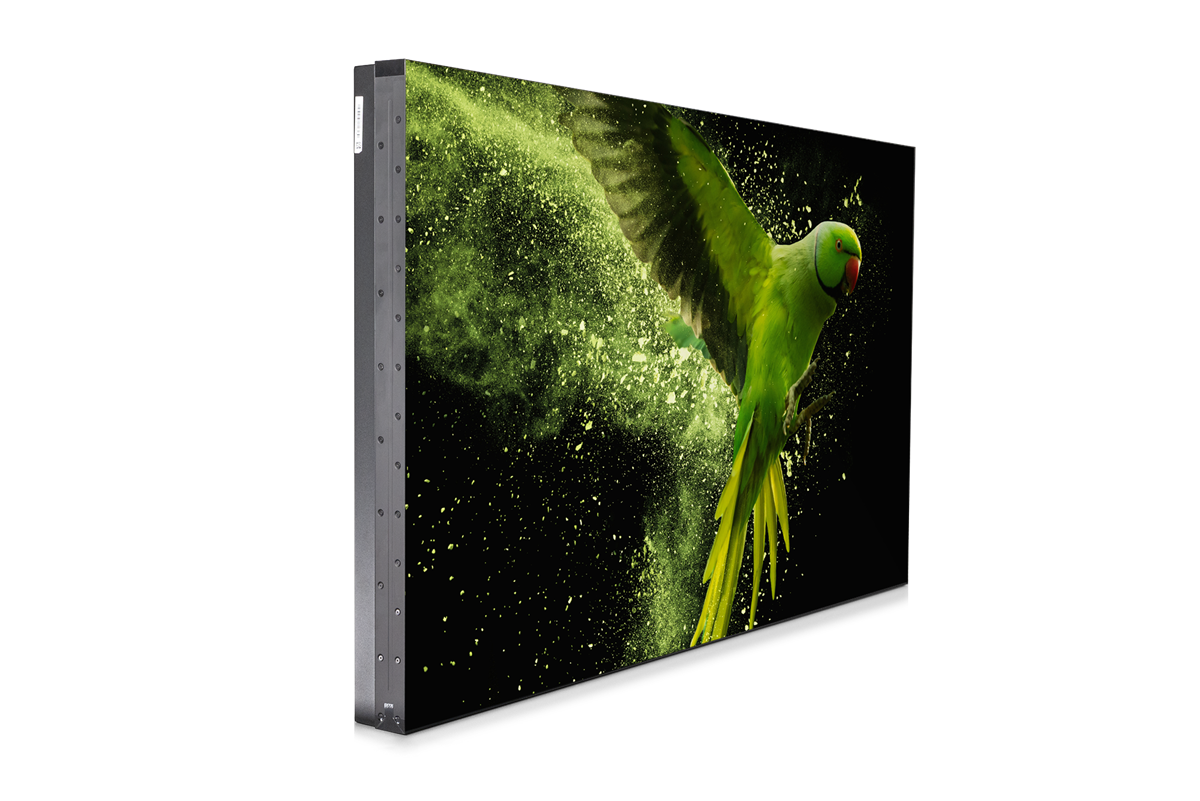

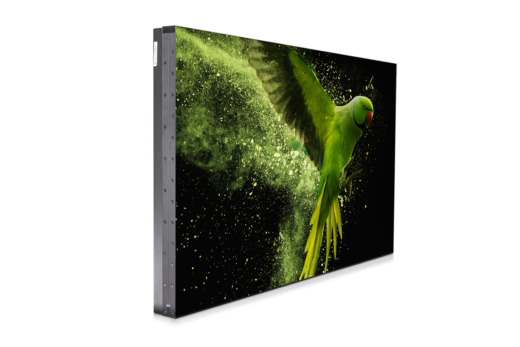

Barco’s OverView LVD-5521C is a high-performance, mid-level brightness (500 cd/m² typical) and cost optimized 55″ LCD-panel, dedicated for use in tiled video wall applications. Being part of the ENB 1.8 mm bezel generation, with excellent colors and a wide viewing angle, the OverView LVD-5521C provides great value to entry level and mid-end applications.
Saving costs with automatic color and brightness calibration
The OverView LVD-5521C is part of Barco’s highly renowned and industry-leading OverView LCD video wall portfolio – which complements the premium Barco UniSee platform. The signature innovative Sense X – Barco’s automatic real-time color and brightness calibration system – ensures that the complete wall produces a perfectly balanced image at all times – thus avoiding a video wall with a ‘checkerboard’ pattern image. Barco is the only company in the market enabling this type of automatic calibration in real-time based on integrated brightness and color sensors.
Striving towards enhanced uptime
The use of Barco’s Video wall Manager makes it much easier to control the video wall, further improving the user-friendliness. This ease of operation is now even more pronounced with the new Video wall Management Suite, a cloud-based remote monitoring, diagnostics and control solution for Barco video walls. This offers AV system integrators and managed service providers the possibility to remotely manage the complete installed base from a central location. This not only lowers operational costs, but also ensures faster and more effective troubleshooting and increased customer satisfaction..
Specifications
| Panel | |
|---|---|
| Resolution | Full HD (1920 x 1080) |
| Backlight | Direct LED |
| Aspect ratio | 16:9 |
| Luminance | 500 cd/m2 (typ.) |
| Contrast | 1200:1 (typ.) |
| White point | native 10,000 K (typ.) |
| Calibration | Sense X automatic color and brightness calibration |
| Backlight lifetime | 60,000 h (typ) |
| Cooling | Fanless |
| Screen haze | 28% |
| Uniformity | 9P: 94% |
| Viewing angle (H, V) | 178, 178 degrees |
| Operating temperature | 0 – 40°C |
| Operational humidity | 10 – 90% non-condensing |
| Storage temperature | -20°C – 60°C |
| Storage humidity | 10 – 90% non-condensing |
| Mounting | VESA 600×400 |
| Dimensions | |
| Dimensions | 1211.9 x 682.7 x 121.1 mm | 47.71″ x 26.88″ x 4.77″ |
| Active screen diagonal | 55″ (1397 mm) |
| Active screen area | 1209.6 mm x 680.4 mm | 47.62″ x 26.79″ |
| Weight | 26 kg | 57.32 lbs |
| Bezel width generation | ENB (1.8 mm | 0.07″) generation |
| Connectivity | |
| DisplayPort | 2 DP1.2 inputs (DisplayPort 1.2 cables must be used when the cable length exceeds 3m / 10 feet) 1 DP1.2 output |
| HDMI | 2 HDMI 2.0 inputs |
| HDCP | Yes |
| Ethernet port | 1 |
| USB | 1 input (only for power) |
| Power | |
| AC input voltage | 100-240 VAC, 50-60 Hz |
| Power consumption | 170 W (500 nit native) |
| Heat dissipation | 580 BTU/hr |
