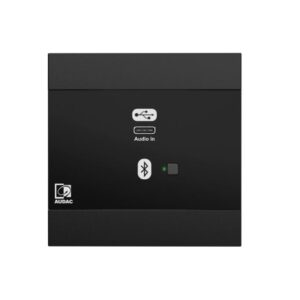

NWP400
฿44,505.00
Network input panel – USB Type-C + BT (4 CH)
The NWP400 is a Dante™/AES67 network input panel, featuring a USB Type-C port, and an integrated Bluetooth receiver, which can be used to transmit audio signals in a Dante™ audio network.
The NWP400 is a Dante™/AES67 network input panel, featuring a USB Type-C port, and an integrated Bluetooth receiver, which can be used to transmit audio signals in a Dante™ audio network.
Various further integrated DSP functions such as EQ, automatic gain control, and other device settings can be configured through the AUDAC Touch™.
The IP-based communication makes it future-proof while also being backwards compatible with many existing products. Thanks to the limited PoE power consumption, NWP400 is compatible with any PoE network-based installation.
Besides the elegant design, the front panel is finished with high-quality fingerprint-resistant glass. The wall panels are compatible with standard EU-style in-wall boxes, making the wall panel the ideal solution for solid and hollow walls. Black and white color options are available to blend into any architectural design.
- Front USB type-C port
- Integrated Bluetooth receiver
- Internal mixing & DSP processing
- 4-channel Dante™/AES67
Technical specifications
| NWP400/B | Black version |
| NWP400/W | White version |
System specifications
| Inputs | Bluetooth | |
| USB Type C (in) | ||
| Control | 1 button – Bluetooth discoverable | |
| Indicators | 1 LED (RGB) – Bluetooth status | |
| Configurable settings | IP settings | |
| Device name | ||
| Gain | ||
| DSP (EQ) | ||
| Mixing | ||
| Configuration | Audac Touch™ | |
| Integrated DSP | Yes (EQ) | |
| Automatic level control | Yes | |
| Power | Supply | PoE powered (IEEE 802.3at) |
| Connectors | USB Type C (audio in) | |
| RJ45 (network + PoE) | ||
Product Features
| Construction | ABS |
| Front finish | Elegant ABS front panel with glass |
| Dimensions | 80 x 80 mm (W x H) (Remote wall panel) |
| Colours | White (RAL9003) (DWP345/W) |
| Black (RAL9005) (DWP345/B) | |
| Compatible devices | Any Dante™/AES67 compatible audio device |
| Installation standard | Compatible with EU installation materials |
