NOBA8
฿29,809.00

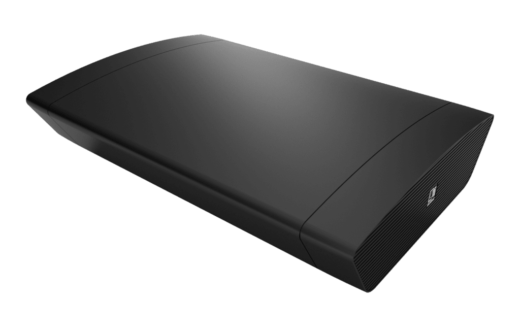

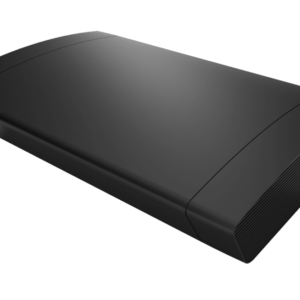

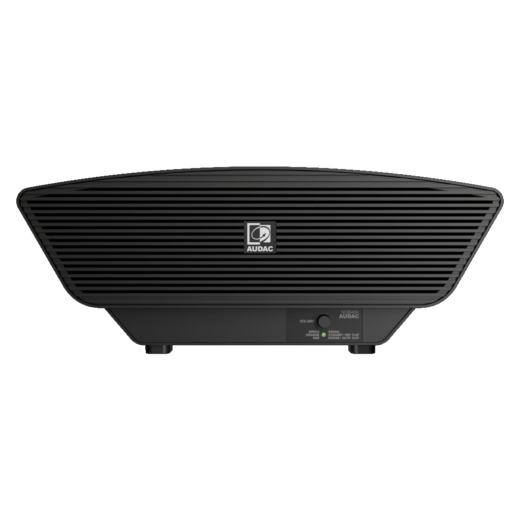

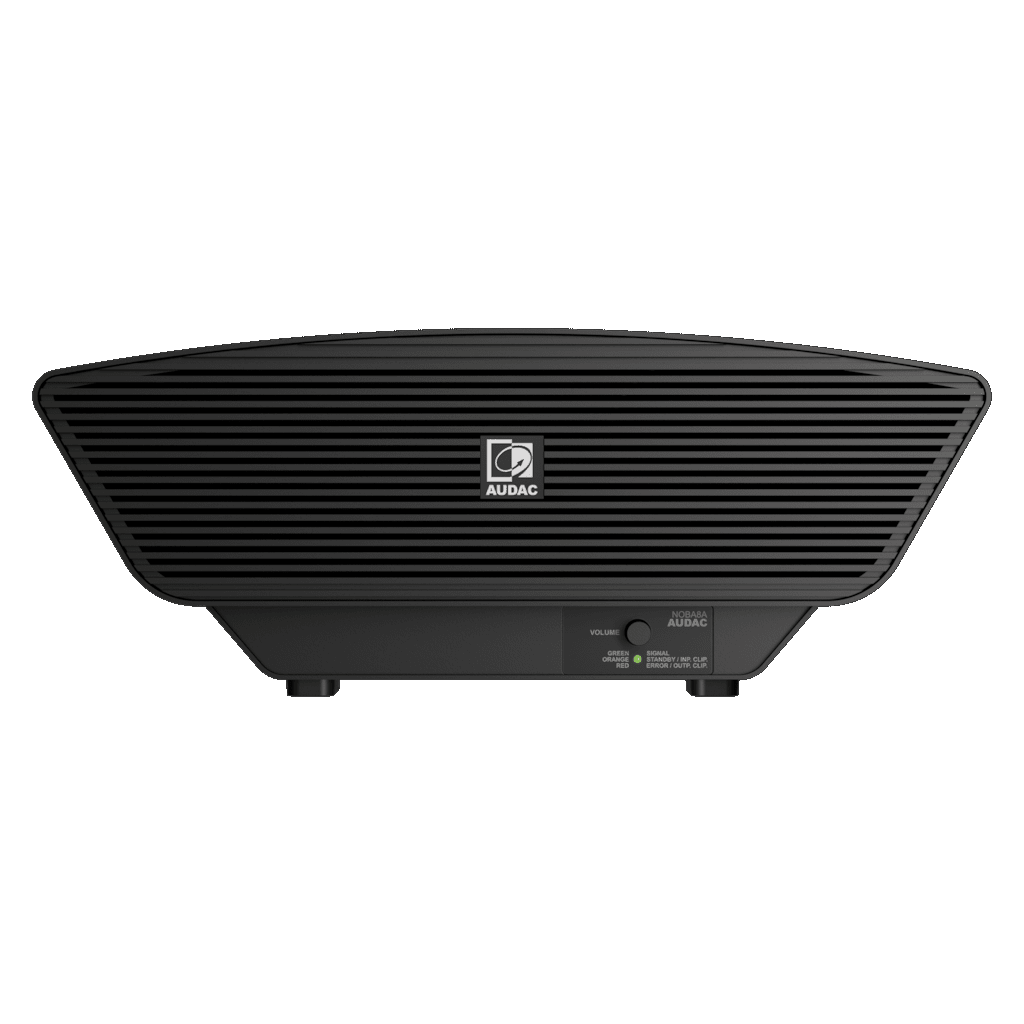

COMPACT 8” BASS CABINET
The slick look of the NOBA8 allows it to be placed against a wall, on the ceiling or even underneath furniture, yet due to the unique composition of its parts, NOBA8 ensures a much better spreading of sound waves than other similar cabinets. It is loaded with a 8” high-performance woofer constructed with a Max power handling of 200 Watt, with an RMS rating of 100 Watt. The strength of this loudspeaker originates from a 2.4” voice coil which is allowed to extra long excursions, combined with a large magnet size. Displacements are precisely controlled by the low-loss suspension resulting in a superior linear behaviour.
The input connection is made using a terminal block connector located at the inner side of the supporting structure, allowing close placement to any wall or corner. An included wall mounting bracket offers convenient mounting possibilities to any wall, while fixation to ceilings is possible through optionally available accessories.
VARIANTS

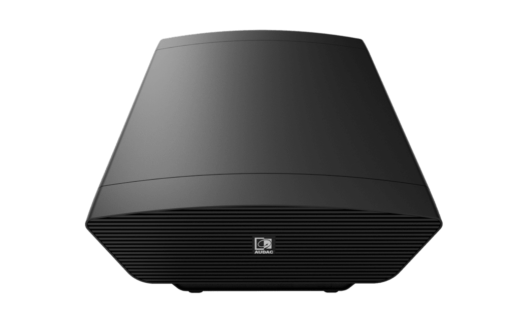

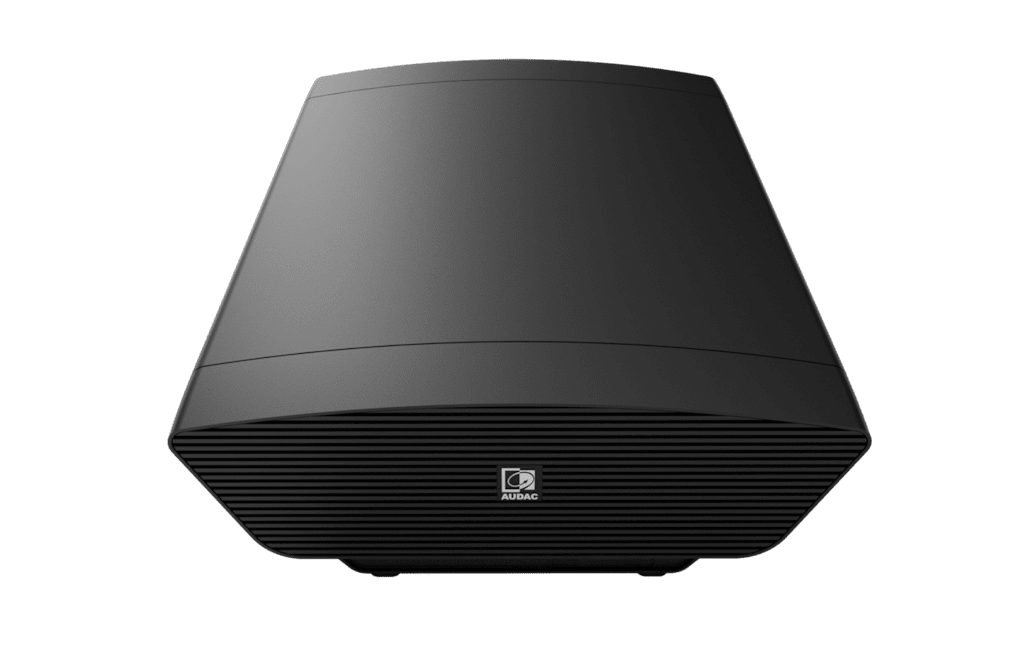

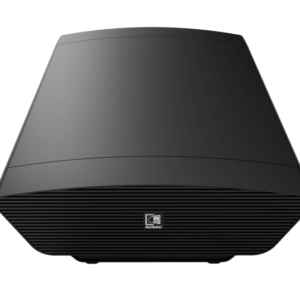

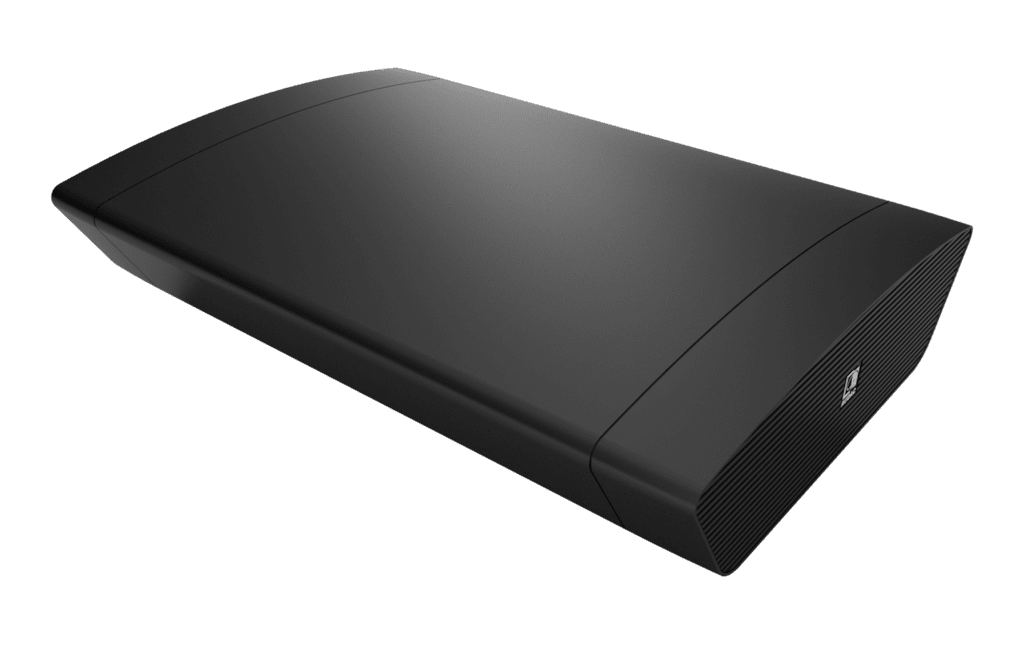

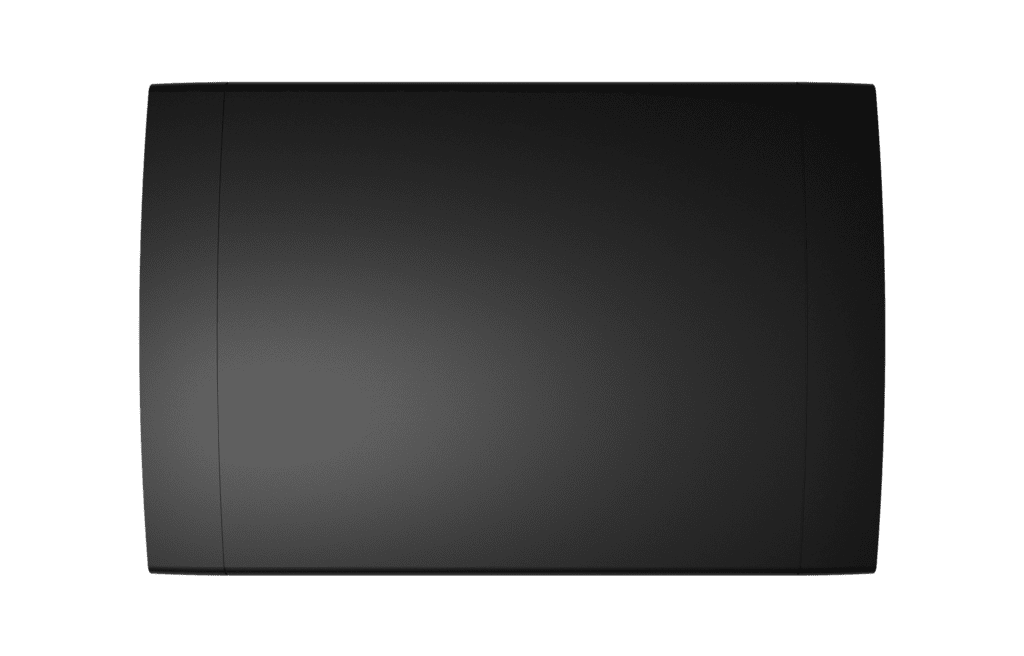

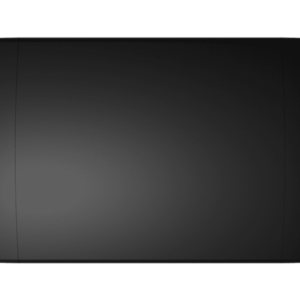

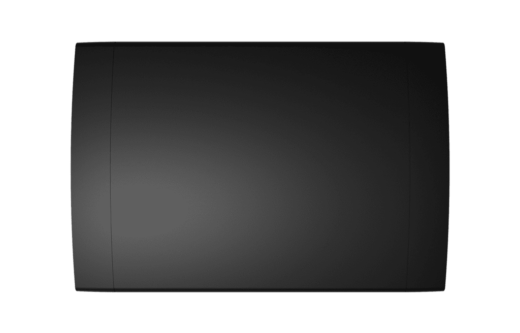

- NOBA8/B – Black

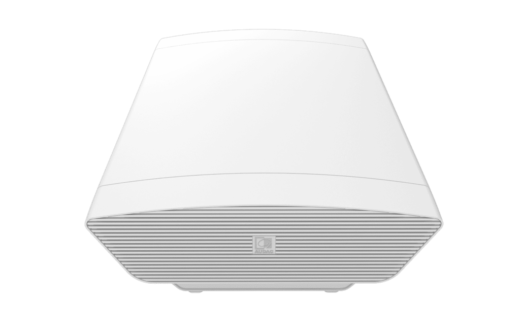

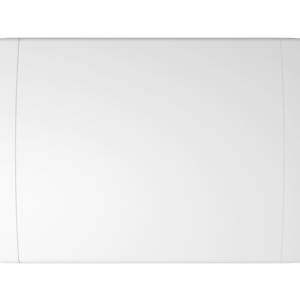

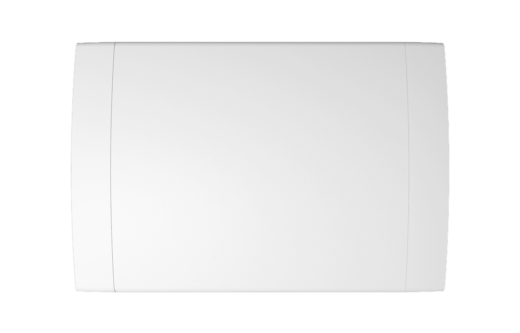

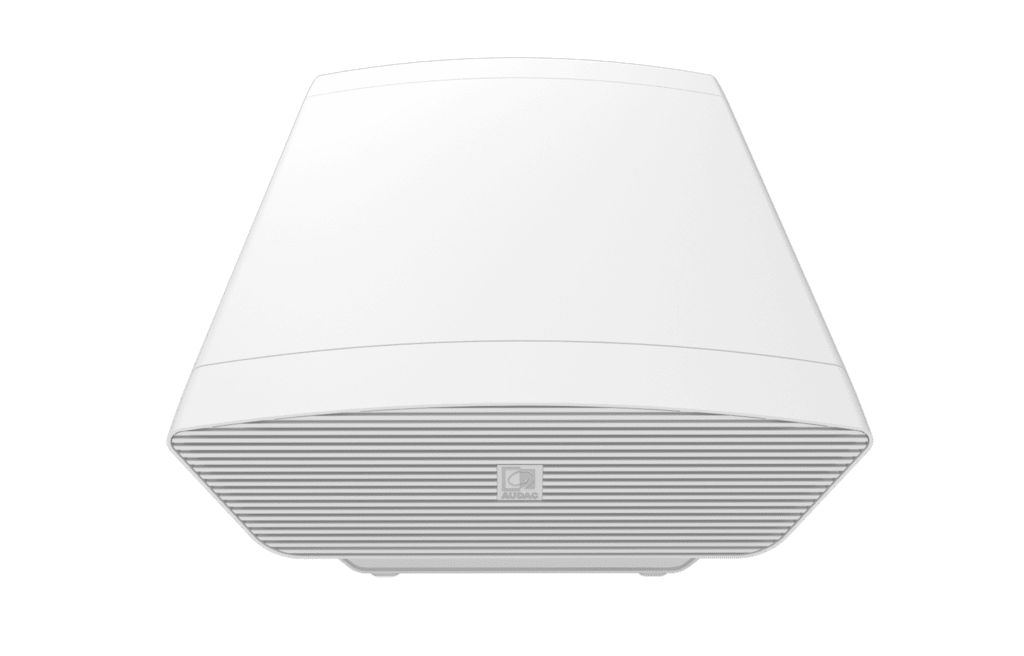

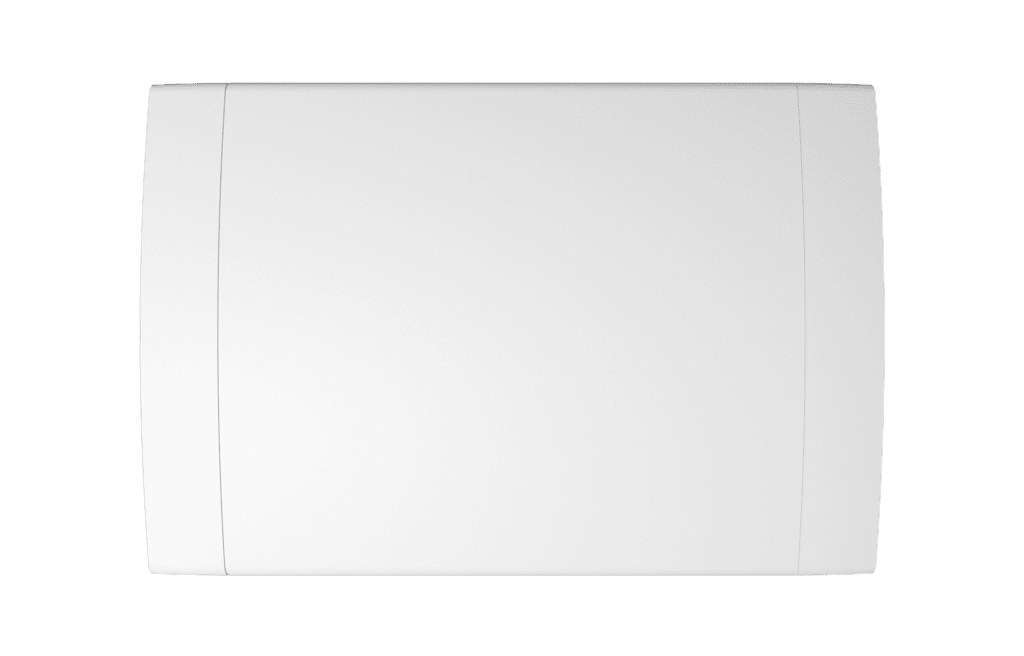

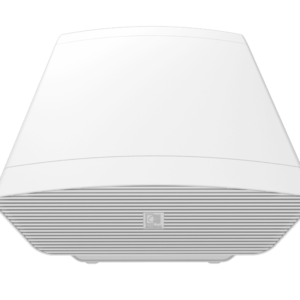

- NOBA8/W – White
| SYSTEM SPECIFICATIONS | ||||
|---|---|---|---|---|
| Speaker type | 8” Bass reflex cabinet | |||
| Impedance | 8 Ω | |||
| Max. Power | 200 W | |||
| RMS Power | 100 W | |||
| Sensitivity (1W/1m) | 83 dB | |||
| Sound Pressure (Max. W/1m) | 108 dB | |||
| Drivers | 8” ferrite with 2.4” voice coil | |||
| Connectors | 2-pin Euro Terminal Block (Pitch – 5.08 mm) | |||
| Frequency | Response (± 3 dB) | 90 Hz – 350 Hz | ||
| Range (-10 dB) | 45 Hz – 350 Hz | |||
| PRODUCT FEATURES | ||||
|---|---|---|---|---|
| Dimensions | 558 x 383 x 149 mm (W x H x D) | |||
| Weight | 8.75 kg | |||
| Construction | Aluminium with plastic side covers | |||
| Mounting & handling | Mounting wall bracket | |||
| Colours | Black (RAL9004) (NOBA8/B) | |||
| White (RAL9003) (NOBA8/W) | ||||
| Accessories | Included | Wall mounting bracket | ||
| Optional | MBK410C Ceiling mount bracket | |||
