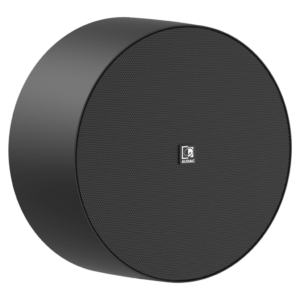

The NELO706 surface-mount loudspeakers allow installation to any wall or ceiling where functional and cost-efficient reproduction for music & speech is required. It features a 6.5” broadband loudspeaker with a continuous power handling of 10 Watt (RMS) and is fitted with a line transformer for use in 70V/100V public address systems with power tappings for 6W and 3W. The housing is minimalistic and elegant designed with a very narrow border and a finely perforated steel grill on the front. Connections are made through SnapConnect™ terminals, offering a faster, more reliable and safer choice for fixed installations. The NELO706 are available in various models with (NELO706V) and without (NELO706) individual volume controller on its side while being available in two different colors (Black /B & White /W) to blend in with any residential, commercial or industrial environment.
Please note: given specifications are preliminary and subject to change.
VARIANTS
- New NELO706/B – Black version without volume controller
- New NELO706/W – White version without volume controller
- New NELO706V/B – Black version with volume controller
- New NELO706V/W – White version with volume controller
SYSTEM SPECIFICATIONS | ||||
---|---|---|---|---|
Max. Power | 20 W | |||
RMS Power | 10 W | |||
Sensitivity (1W/1m) | 96 dB | |||
Speaker type | Broadband | |||
Connection | SnapConnect™ | |||
Drivers | 6.5” Full Range | |||
Volume control | Integrated rotary volume controller (only NELO706V) | |||
Impedance | 8 Ω | |||
Sound Pressure (Max. W/1m) | @ 100 V | 106 dB | ||
Frequency | Response (± 3 dB) | 100 Hz – 15 kHz | ||
Range (-10 dB) | 70 Hz – 18 kHz | |||
Line Transformer Tappings | 1 | 833 Ω – 100 V / Not used – 70 V / 6 W | ||
2 | 1667 Ω – 100 V / 6 W – 70 V / 3 W | |||
3 | 3333 Ω – 100 V / 3 W – 70 V / 1.5 W | |||
Dispersion | Conical | 140° |
PRODUCT FEATURES | ||||
---|---|---|---|---|
Colours | Black & White | |||
Front finish | Steel grill | |||
Construction | ABS | |||
Mounting | Wall/Ceiling mounting (two screw holes) | |||
CSK100 ceiling suspension kit (optional) | ||||
Colours | White (RAL9003) (NELO706/W) | |||
Black (RAL9005) (NELO706/B) | ||||
Dimensions | 206.5 x 95 mm (Ø x D) | |||
Operating temperature | -25 °C ~ 70 °C |
