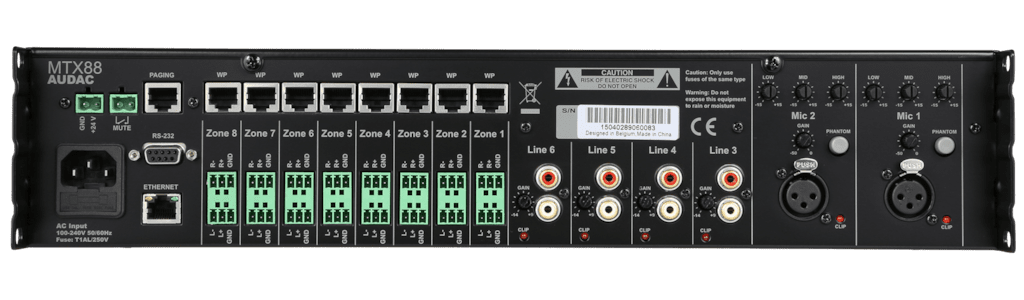

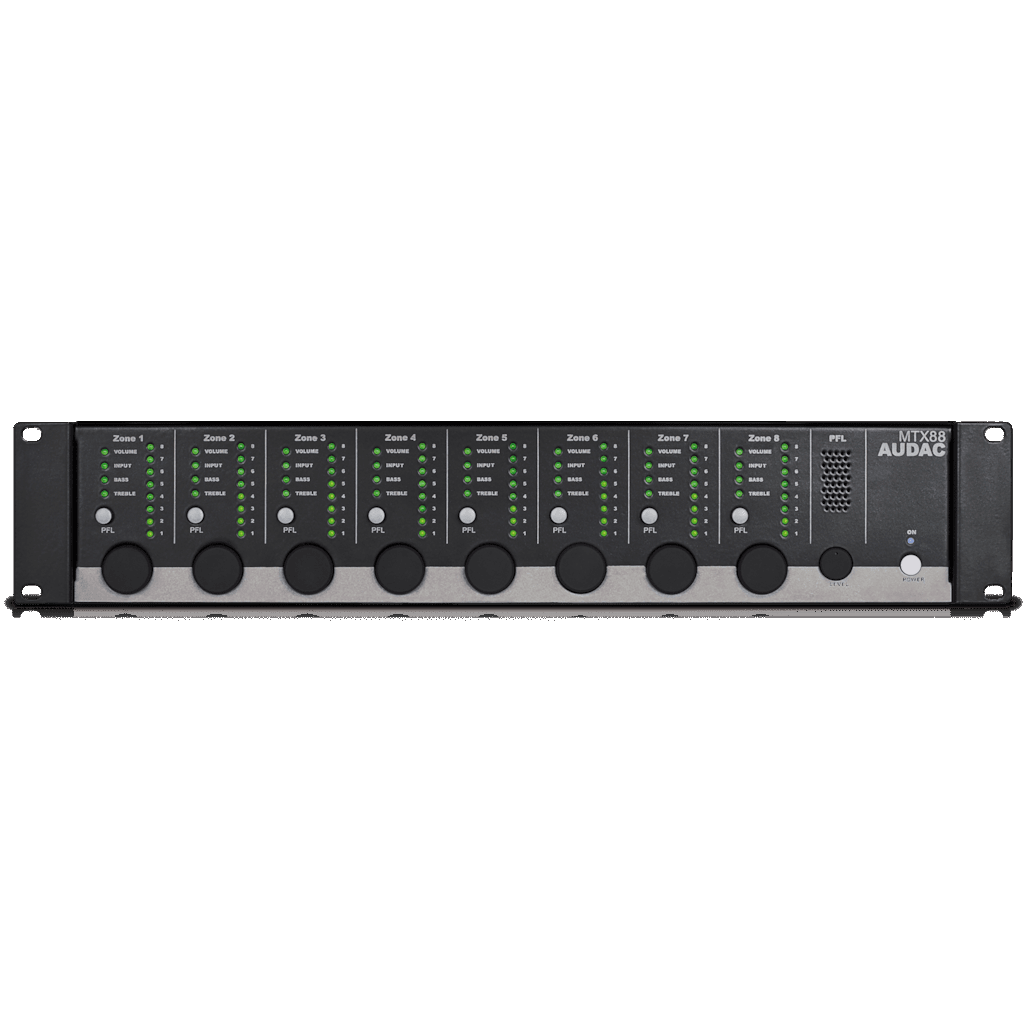

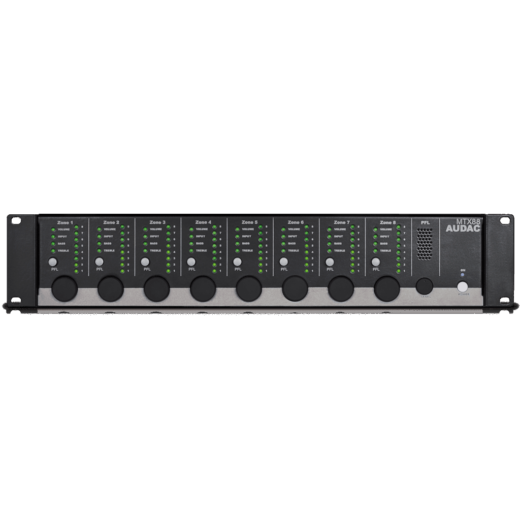

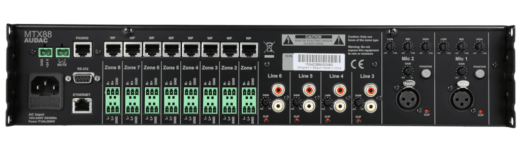

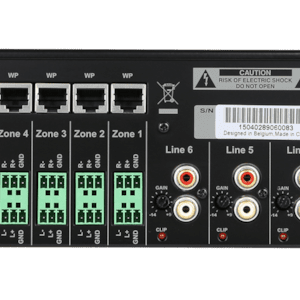

The MTX can be controlled by means of additional control panels, its fully functional web based interface or the iPhone/ iPad Remote app. The RS232 port makes the MTX compatible with any home & industrial automation systems supporting RS232. The front panel of the MTX shows a rotary button per zone with indication LEDs for accessing controls and settings. A built-in PFL loudspeaker makes it possible to pre-listen every channel without the need for a headphone. The balanced line-level zone output connections are performed using 3-pin Euro-terminal block connectors, each of them accompanied with an RJ45 connector for connecting additional wall panels for that zone. A 24 volts power connection makes it possible to keep the MTX running on emergency power, even if the main power is shut down.
SYSTEM SPECIFICATIONS | ||||
---|---|---|---|---|
Crosstalk (@ 1 kHz) | -85 dB | |||
Control | Front panel | |||
RS-232 | ||||
TCP/IP (RJ45) | ||||
Wall panel (RS-485) | ||||
Audac Touch™ | ||||
Web (Flash) | ||||
Socket Connections (AUDAC Touch™) | 5 sockets | |||
Outputs | Type | 8 x Stereo Balanced Line | ||
Connector | 3-pin Euro Terminal Block (Pitch – 3.81 mm) | |||
Impedance | 51 Ω | |||
Level | -70 dB ~ 0 dB | |||
Frequency | Response (± 3 dB) | 20 Hz – 20 kHz | ||
Power | Consumption | 12 W | ||
Supply | 100 ~ 240 V AC / 50 ~ 60 Hz | |||
24 V DC (emergency Power) | ||||
Inputs | Balanced Microphone | Type | 2 x Balanced Microphone | |
Connector | XLR | |||
Sensitivity (1W/1m) | 0 dBV ~ -50 dBV | |||
Phantom Power | 15 V DC | |||
Signal / Noise | > 80 dB | |||
THD+N (@ 1 kHz) | < 0.05 dB | |||
Unbalanced Stereo | Type | 4 x Stereo Unbalanced Line | ||
Connector | RCA | |||
Sensitivity (1W/1m) | -14 dB ~ +9 dB | |||
Signal / Noise | > 100 dB | |||
THD+N (@ 1 kHz) | < 0.01 dB | |||
Wall Panel | Type | 8 x Wall panel input | ||
Connector | RJ45 | |||
Other | Type | 1 x Priority mute contacts | ||
Outputs | EQ | Treble | ± 14 dB (2.5~20 kHz) | |
Bass | ± 14 dB (100 Hz) | |||
Inputs | Balanced Microphone | EQ | High | ± 15 dB (12.5 kHz) |
Mid | ± 15 dB (2.5 kHz) | |||
Low | ± 15 dB (80 Hz) |
PRODUCT FEATURES | ||||
---|---|---|---|---|
Dimensions | 482 x 88 x 335 mm (W x H x D) | |||
Weight | 4.840 kg | |||
Unit height | 2 HE |
