MERO2D
฿4,783.00

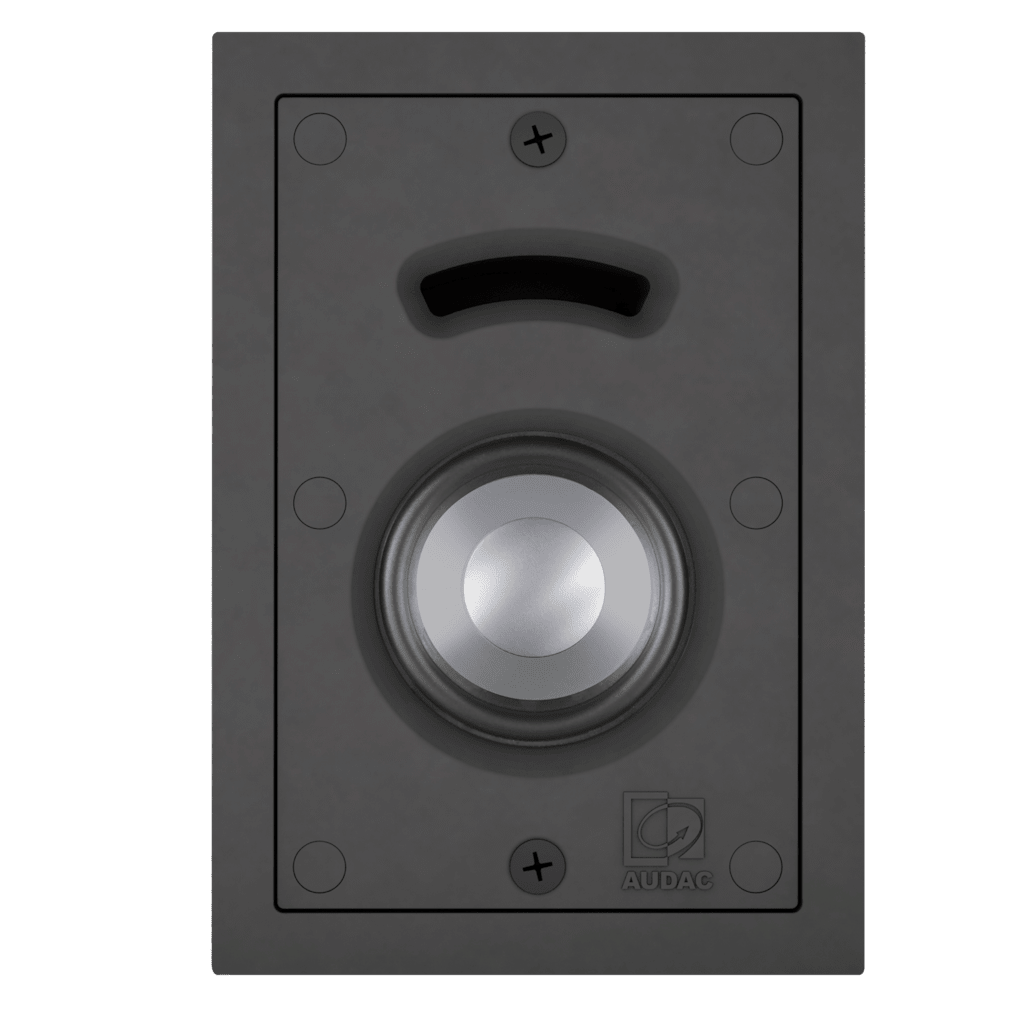

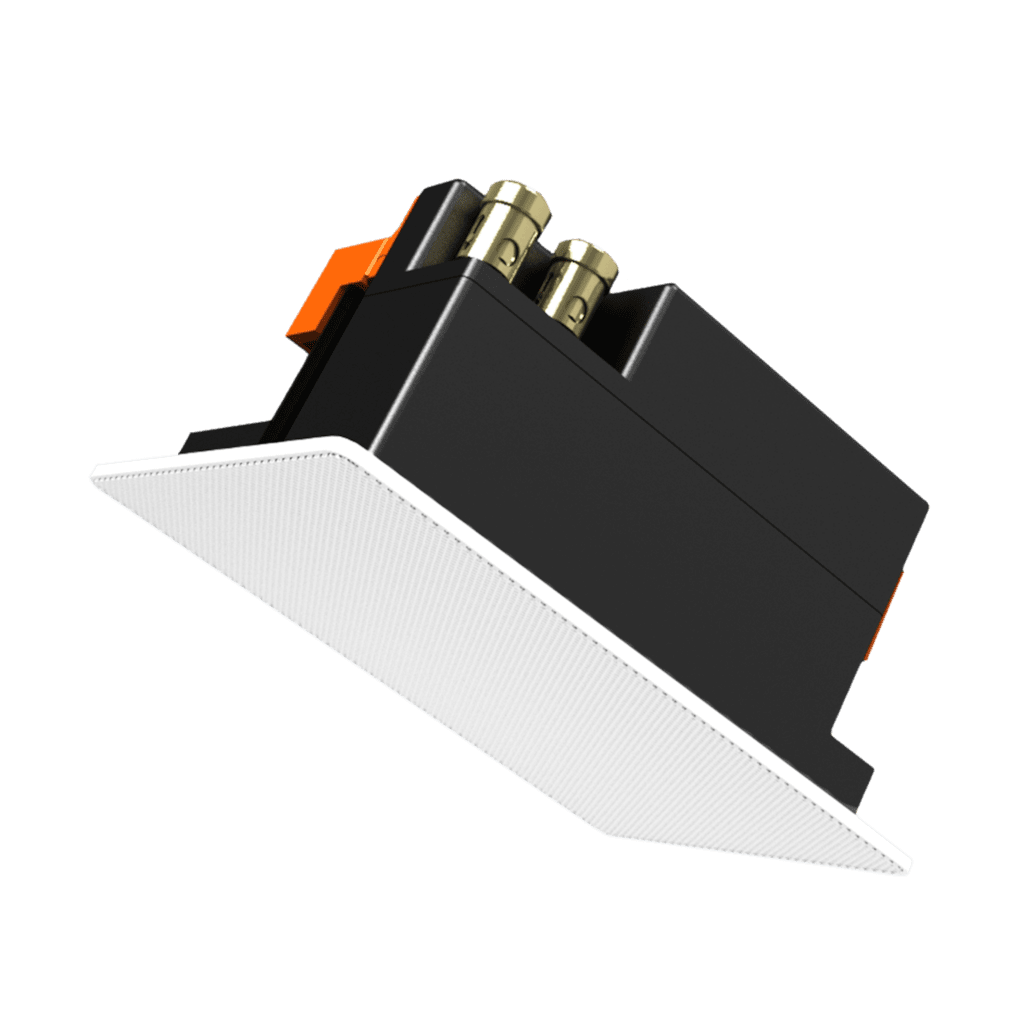

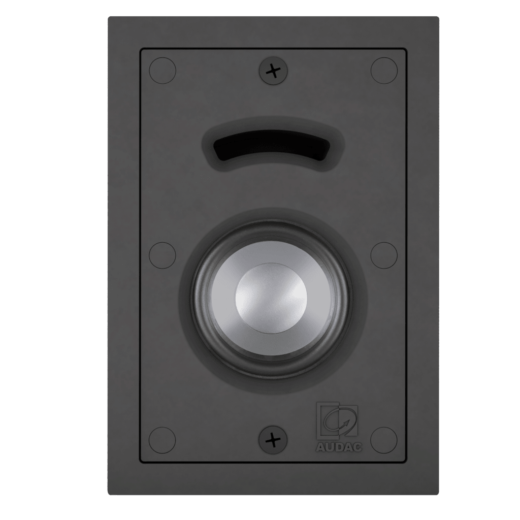

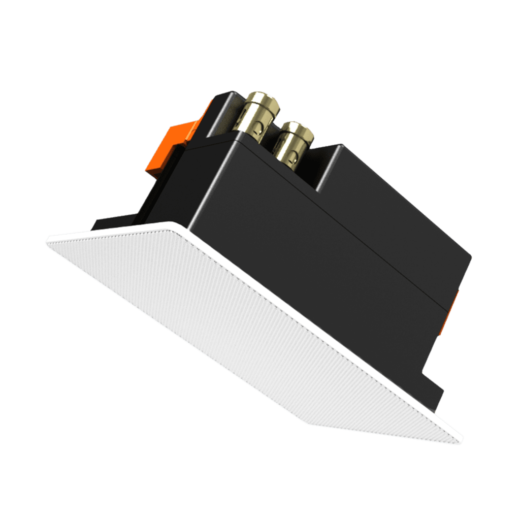

HIGH-END IN-WALL SPEAKER 2″
The outer dimensions only measure only 146 x 98 mm and the built-in depth which doesn’t exceed 70 mm allows installation in any surface while being unobtrusive. The sound originates from a 2” aluminum cone driver which provides a full-range, warm and detailed sound, with an improved response in the low frequencies due to a ported enclosure with closed back can. This way, a smooth sound reproduction with clear and crisp sound is guaranteed. An internal self-resetting network provides an optimal overload protection. All these details share their part to the quality of the MERO 2, resulting in a highly reliable loudspeaker producing a pure sound with a maximum power handling of 20 Watt and an RMS power handling of 10 Watt. An elegant look with minimal visual impact is created by the slim grill with very thin border, while lifetime stability, secure mounting and easy installation is guaranteed using the quick-fix mechanism which can be tightened by two screws and the Gold-Con™ spring clamp connectors. The grill is held in place using neodymium magnets, providing a quick and reliable assembly. Installation can be done both vertically and horizontally.
VARIANTS
- MERO2 – White version – 8Ω
- MERO2D – White version – 16Ω
| SYSTEM SPECIFICATIONS | ||||
|---|---|---|---|---|
| Speaker type | Full range | |||
| Peak power handling | 40 W | |||
| Program power handling | 20 W | |||
| RMS/AES power handling | 10 W | |||
| Impedance | 8 Ω (MERO2) | |||
| 16 Ω (MERO2D) | ||||
| Sensitivity (1W/1m) | 83 dB | |||
| Sound Pressure (Max. W/1m) | 93 dB | |||
| Frequency | Response (± 3 dB) | 120 Hz – 20 kHz | ||
| Range (-10 dB) | 100 Hz – 20 kHz | |||
| Dispersion | Horizontal | 165° | ||
| Vertical | 165° | |||
| Connectors | Gold-Con™ spring clamps | |||
| Drivers | 2” Aluminium membrane (coaxial) | |||
| PRODUCT FEATURES | ||||
|---|---|---|---|---|
| Dimensions | 146 x 98 x 70 mm (W x H x D) | |||
| Weight | 0.355 kg | |||
| Construction | ABS | |||
| Front finish | Thin edged white grill (RAL9003) | |||
| Cut-out measurement | 128 x 80 mm | |||
| Built-in depth | 70 mm | |||
| Mounting & handling | 2 Screw quick-fixing mechanism | |||
| Operating temperature | -20 °C ~ 60 °C | |||
| Colours | Black frame & white grill | |||
| Accessories | Included | Cut-out template | ||
| Optional | WTR06 – 6W 100V line transformer | |||
| GLM02/B – Black grill (RAL9005) | ||||
| GLM02/P – Paintable grill | ||||
| WMM20 – In-wall box for MERO2 | ||||
| Included | GLM02/W – White grill (RAL9003) | |||
