LA880I-WH
฿64,890.00

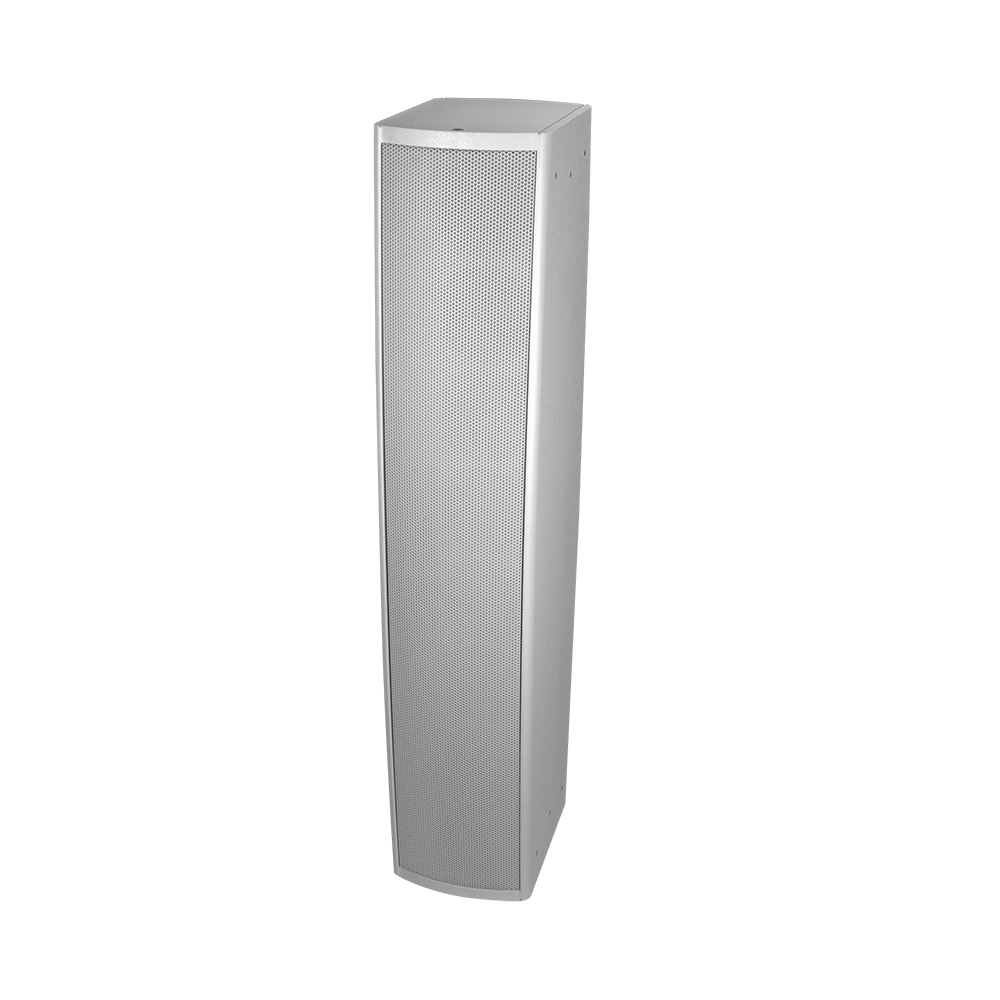

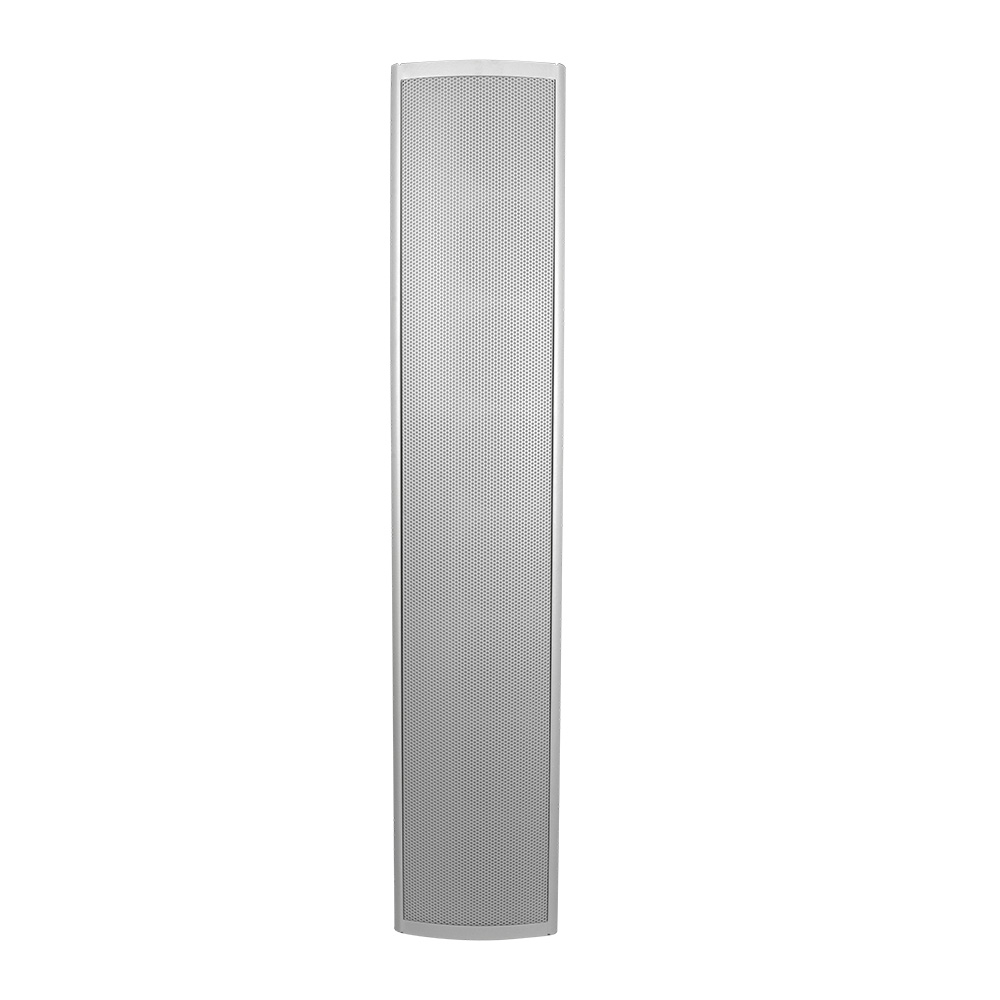

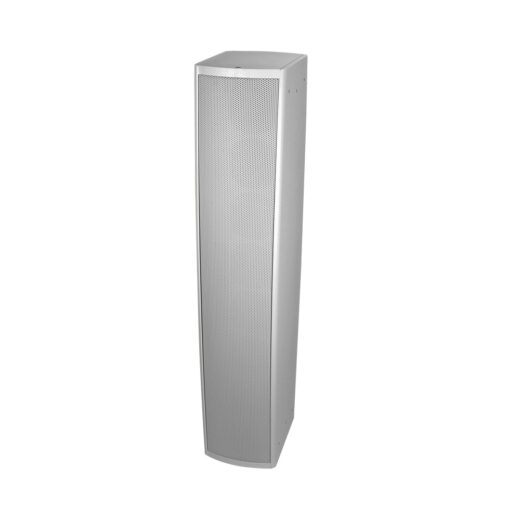

SoundTube LA880I Line Array Speaker in White
The SoundTube LA880i is not a typical line array column loudspeaker. It is an advanced LAPS (Line Array-Point Source) 3-way design that provides a very short near-field extent and robust far-field performance. Frequency tapering of low and mid frequency pass bands allows the LA880i to maintain a more consistent ratio of array height to radiated wavelength, ensuring a stable vertical beamwidth that out-performs many other single box line arrays. Featuring eight 4.5-inch woofers, eight 2-inch midrange drivers and one 2.5-inch planar magnetics (ribbon) high frequency driver for extremely smooth high frequency response, the LA880i achieves superb coverage in an enclosure measuring only 7.91″ x 40.87″ x 11.99″.
| Color | White |
|---|---|
| UPC | 644216199501 |
| Manufacturer | SoundTube |
| Manufacturer’s Category | LA Line Array |
| Height | 40.87 in / 1038.1 mm |
| Width/Diameter | 7.91 in / 200.9 mm |
| Shipping Weight | 49.5 lbs / 22.45 kg |
| Carton Height | 12 in / 304.8 mm |
| Carton Length | 44 in / 1117.6 mm |
| Carton Width | 16 in / 406.4 mm |
| Certifications | CE, RoHS |
| Enclosure Properties | MDF, Painted, Plywood, Ported |
| Included Accessories | Back Cover, Euroblock, Mounting Hardware, Safety Cable |
| Optional Accessories | Black Back Plate (AC-LA8-BACK-BK)|Black Side Connector Plates (AC-LA8-LINK-WH)|Black Top Mounted Fly Point Plates (AC-LA8-FLY-WH)|Pan and Tilt Surface Mount Bracket Kit (MM-024-BT or MM-022-BT)|Pole Mount Adapter (AC-PA-010)|Heavy Duty Pan and Tilt Surface Mount Bracket Kit (MM-120HD)|Fly Bracket (SAS-1WA-20) |

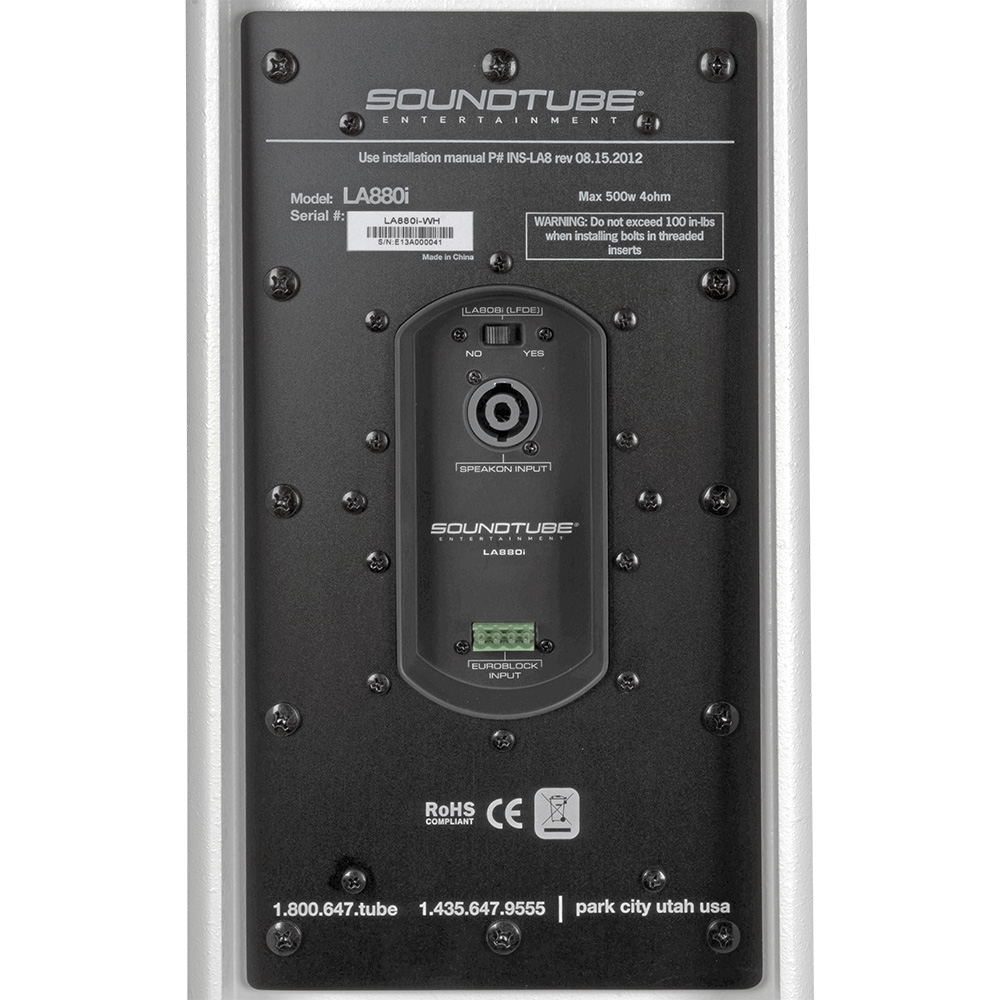

| Source Inputs | 4 Pin 5.08mm Euroblock, SpeakON |
| Crossover Frequency | 1.1 kHz 2.5 kHz |
| Directivity Factor (Q) (Averaged 100Hz – 10kHz, @ 2kHz) | 6.9 and 12.3 |
| Directivity Index (DI) dB (Averaged 100Hz – 10kHz, @ 2kHz) | 9.2dB and 10.9dB |
| Frequency Response (± 10 dB) | 58 Hz – 22 kHz |
| Frequency Response (± 3 dB) | 71 Hz – 22 kHz |
| Grille Properties | Powder-Coated, Steel |
| Low Frequency Voice Coil | 1 in / 25.4 mm |
| Low Pass Crossover | 12 dB per octave |
| Max. Continuous Power RMS | 300W |
| Max. Program Power | 500 W |
| Minimum Impedance (Ω Ohms) | 4.3 Ω |
| Mounting Depth | 11.99 in / 304.5 mm |
| Network Type: High Pass | 12 dB per octave |
| Nominal Impedance (Ω Ohms) | 4 Ω |
| Tweeter Driver | 2.5″ Planar Magnetic Ribbon Tweeter |
| Midrange Driver | (8) 2″ Midrange Paper w/ Foam Surround |
| Woofer Driver | (8) 4.5″ Woofers Paper w/ Rubber Surround |
| Sensitivity dB @ 1W/1M | 88 dB |
| Sensitivity dB @ 2.83V/1M | 91 dB |
