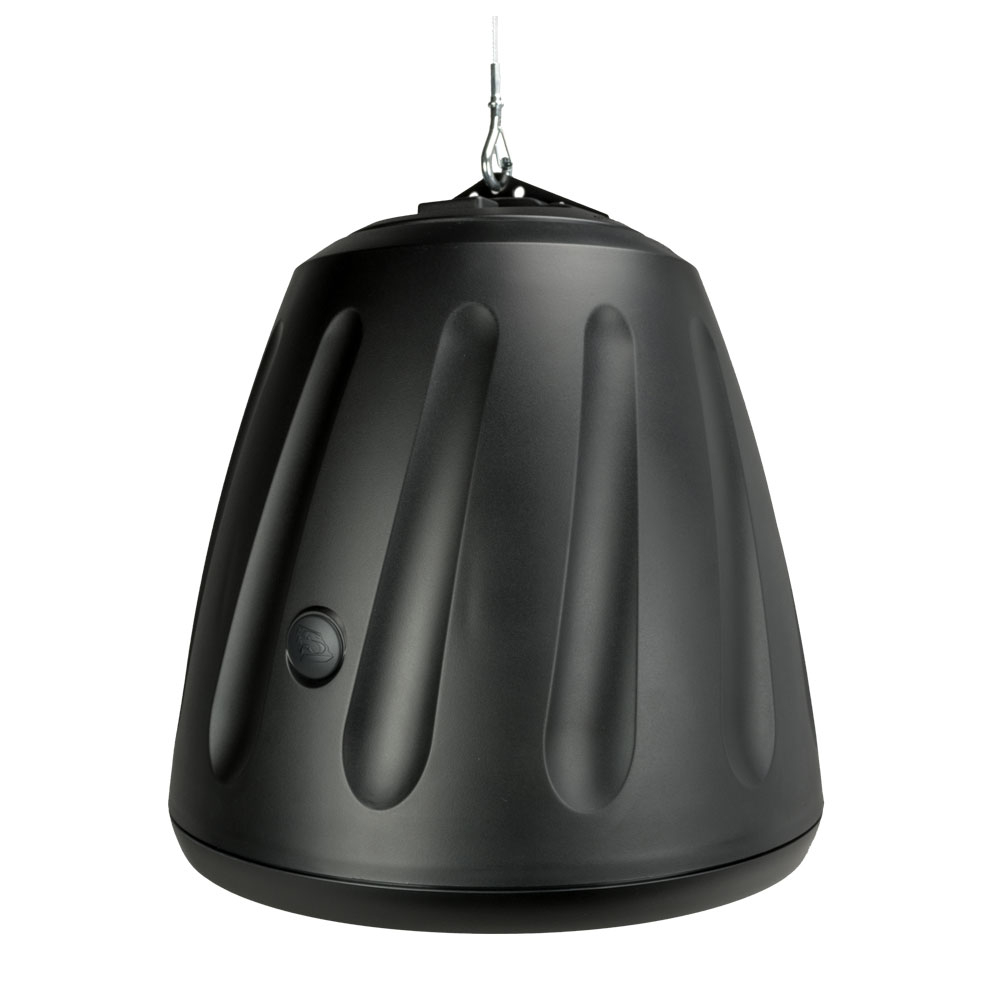

SoundTube HP890i Hanging Speaker in Black

Patented BroadBeam Ring^™ waveguide technology delivers a consistent dispersion pattern for maximum intelligibility and edge-to-edge coverage. One 8 inch treated fiber woofer and one 1.42 inch compression driver (1.0 inch exit) mounted to a proprietary cast-aluminum baffle and heat sink. High output and 120-watt transformer for the sound reinforcement and PA markets. Patented ZeroReflection^™ enclosure technology for optimal sound reproduction and cabinet rigidity. Easy-access five-position selectable tap switch for 25-, 70.7- and 100-volt applications with transformer bypass position. Includes hanging hardware with galvanized steel cables and integrated SpeedClamp^™ self-locking wire grip for fast, easy and secure installation. Also includes Euroblock connector and terminal weather boot. Average sensitivity of 94.0 dB offers high output capabilities and reduced amplification costs. UL 1480 (UEAY) and 2239 (hanging cable) approved.

Description

Color	Black
UPC	752830442986
Manufacturer	SoundTube
Manufacturer’s Category	HPi High Ceiling Pendant
Height	17.23 in / 437.6 mm
Width/Diameter	14.82 in / 376.4 mm
Shipping Weight	32.15 lbs / 14.58 kg
Carton Height	19.5 in / 495.3 mm
Carton Length	18 in / 457.2 mm
Carton Width	18 in / 457.2 mm
Certifications	CE, RoHS, UL1480A, UL2239
Enclosure Properties	ABS Glass Fiber Reinforced, Injection Molded, Ported
Enclosure Volume	1288.3 cu in / 21111.45 cu cm
Included Accessories	Euroblock, Hanging Hardware, Safety Cable, Terminal Weather Boot
Optional Accessories	Black Grille (GRL-RS800-BK)\|10′ Hanging Cable (AC-RS-HH-10)\|20′ Hanging Cable (AC-RS-HH-20)\|50′ Hanging Cable (AC-RS-HH-50)\|Black Mount Bracket (AC-RS-SM8-BK)\|Connector (EUROBLOCK)\|Black Weatherboot (WEATHERBOOT-L-BK)\|Beam Clamp (AC-BC1)\|Forged Eye Bolt (AC-FE1)\|Black Split Loom Tubing (AC-SLT-10-BK)\|Snap Link (AC-SL1)
Source Inputs	4 Pin 5.08mm Euroblock
Coverage Angle (±6dB @ 2kHz)	85°
Crossover Frequency	2.5 kHz
Directivity Factor (Q) (Averaged 100Hz – 10kHz, @ 2kHz)	4.2 and 3.5
Directivity Index (DI) dB (Averaged 100Hz – 10kHz, @ 2kHz)	5.4dB and 5.4dB
Frequency Response (± 10 dB)	65 Hz – 22 kHz
Frequency Response (± 3 dB)	93 Hz – 22 kHz
Grille Properties	Powder-Coated, Steel
Low Frequency Voice Coil	1.34 in / 34 mm
Low Pass Crossover	12 dB per octave 2nd order
Max. Continuous Power RMS	125W
Max. Program Power	250 W
Minimum Impedance (Ω Ohms)	5.9 Ω
Network Type: High Pass	12 dB per octave 2nd order
Nominal Impedance (Ω Ohms)	8 Ω
Tweeter Driver	1.38″ Titanium Compression Driver w/ Waveguide
Woofer Driver	8″ Treated Fiber
Sensitivity dB @ 1W/1M	94 dB
Sensitivity dB @ 2.83V/1M	94 dB
Tap Selector	Rotary Switch
Transformer Options	25 / 70.7 / 100 V, 8 Ohm direct
Transformer Taps (25V/70.0V/100V)	15W/120W/120W
