FP6020-II

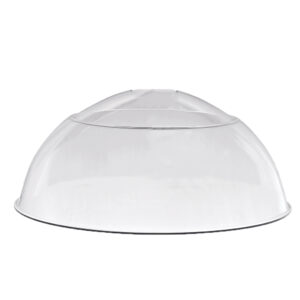

SoundTube FP6020-II Focus Point Speaker in Clear
Delivers targeted audio in a unique package. Features: Patented Dual-Parabolic™ dispersion control technology provides a targeted audio footprint with true stereo separation. Twin 1 inch (25 mm) concave aluminum high-excursion drivers in individually sealed compartments for stereo or mono music and messaging. Patented ZeroReflection™ enclosure technology for accurate sound reproduction. Narrow 30 coverage angle for sharp focus (2 kHz, independently verified). 20.25 in (514.3 mm) custom-molded PETG clear polymer dome for minimal visual impact. User-selectable 350 Hz high-pass filter. Single-point balanced mounting for easy and clean-looking installs. Ships with clear dome. Included accessories: hanging bracket, mounting bushing and a 15-foot hanging cable which includes four 16-gauge inputs and a CAT V cable. Optional modules include Motion Sensor (FP-Motion), LED light (FP-Light), optional 15-volt, 3-amp power supply necessary for all module accessories (AC-PS-1530). Optional electronic accessories include 10 and 20-watt transformers with junction box for 25, 70.7, and 100-volt applications (AC-JB10-XFMR, AC-JB20-XFMR) and an external amplification unit with power supply (SA202-RDT) for use with any FP module.
>> Quotation <<
All models can be wired in either 8-ohm stereo or 4 ohm mono with an optional 25/70.7/100-volt transformer available. Ideal for high-definition music and messaging with tight coverage, full-range stereo sound (130 Hz – 22 kHz, – 10 dB). True audio containment (45 averaged, 2 – 10 kHz) also makes the FP6020-II ideal for focused audio applications including kiosks, P.O.P. displays, trade shows, digital signage, or any place where contained high-fidelity stereo or mono sound is required, but visual impact must be minimized.
Additional optional accessories include: wall bracket, sound sleeves, and rigid mount adaptor. Ships as an individual unit, bulk shipping available.
| Color | Clear |
|---|---|
| UPC | 752830452381 |
| Manufacturer | SoundTube |
| Manufacturer’s Category | FP Focus Point Parabolic Series |
| Height | 8.75 in / 222.3 mm |
| Width/Diameter | 20.25 in / 514.4 mm |
| Shipping Weight | 11.02 lbs / 5 kg |
| Certifications | CE, RoHS |
| Enclosure Properties | PETG, Polystyrene, Sealed |
| Included Accessories | Hanging Hardware, Mounting Hardware |
| Optional Accessories | Motion Kit (FP-MOTION MODULE)|Light Kit (FP-LIGHT MODULE)|Wall Mount Bracket (AC-WB4)|Rigid Mount Adaptor (AC-FP6-RMA)|10W Transformer J-Box (AC-JB10-XFMR)|20W Transformer J-Box (AC-JB20-XFMR) |
| Coverage Angle (±6dB @ 2kHz) | 55° |
| Crossover Frequency | 75 Hz or 350 Hz switchable |
| Directivity Factor (Q) (Averaged 100Hz – 10kHz, @ 2kHz) | 19 and 20.9 |
| Directivity Index (DI) dB (Averaged 100Hz – 10kHz, @ 2kHz) | 11.9dB & 13.2dB |
| Frequency Response (± 10 dB) | 130 Hz – 22 kHz (200 Hz with high-pass filter) |
| Frequency Response (± 3 dB) | 170 Hz – 22 kHz (300 Hz with high-pass filter) |
| Grille Properties | High-Impact Polystyrene |
| Low Frequency Voice Coil | 0.81 in / 20.5 mm |
| Max. Continuous Power RMS | 15W |
| Max. Program Power | 30 W |
| Minimum Impedance (Ω Ohms) | 5.4 Ω |
| Network Type: High Pass | 6 dB per octave 1st order |
| Nominal Impedance (Ω Ohms) | 8 Ω |
| Fullrange Driver | (2) 1″ Aluminum High Excursion |
| Sensitivity dB @ 1W/1M | 75 dB |
| Sensitivity dB @ 2.83V/1M | 75 dB |
| Tap Selector | Rotary Switch J-Box |
| Transformer Options | 25 / 70.7 / 100 V, 8 Ohm direct |
| Transformer Taps (25V/70.0V/100V) | 1.25W/10W/30W |
