CM31-EZ-WH
฿8,270.00

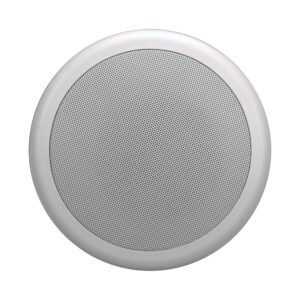

SoundTube CM31-EZ In Ceiling Speaker in White
3 inch PREMIUM FULL-RANGE IN-CEILING SPEAKERS. One 3 inch (76.2 mm) full-range high-extrusion, high-fidelity polypropylene driver with butyl rubber surround. Weatherized components for indoor/outdoor applications. Shallow 3.5 inch (88.9 mm) deep all-steel backcan with integrated driver and baffle configuration. Ultra-compact design with a total visible footprint of less than 6.3 inch (160.6 mm)diameter. Rapid installation, blind-mount, fixed-wing mounting mechanism with constant tension design affixing to wall thicknesses ranging from 0.1 in. (2.5 mm) to 1.5 in. (38.1 mm). Corrosion-resistant, powder-coated aluminum grille with snap fit attachment. Ceramic input terminal accepts up to 10 gauge plenum rated signal wire and includes thermal fuse. Suitable for use in voice alarm applications subject to EU regulations EN60849 and BS5839-8. UL 1480 (UEAY) and 2043 approved. Included accessories: Tile bridge. IP-Rating: IP5X.
| Color | White |
|---|---|
| UPC | 752830439986 |
| Manufacturer | SoundTube |
| Manufacturer’s Category | CM-EZ Economical In-Ceiling |
| Shipping Weight | 3.7 lbs / 1.68 kg |
| Carton Height | 8.25 in / 209.55 mm |
| Carton Length | 8 in / 203.2 mm |
| Carton Width | 7.25 in / 184.15 mm |
| Certifications | CE, RoHS, UL1480A, UL2043 |
| Enclosure Properties | ABS Glass Fiber Reinforced, Injection Molded, Sealed |
| Enclosure Volume | 60 cu in / 983.22 cu cm |
| Included Accessories | Conduit Clamp, Grille, Paint Mask, Tile Bridge, Wire Nuts |
| Optional Accessories | White Grille (GRL-CM31-WH)|Tile Bridge (AC-CM31-TB)|Pre-Construction Bracket (AC-CM31-PCB)|Junction Box (Included with pre-construction bracket) |
| Source Inputs | Wire Leads |
| Backcan Diameter | 5.5 in / 139.7 mm |
| Backcan Height | 3.5 in / 88.9 mm |
| Coverage Angle (±6dB @ 2kHz) | 45° |
| Cutout Width/Diameter | 5.5 in / 139.7 mm |
| Directivity Factor (Q) (Averaged 100Hz – 10kHz, @ 2kHz) | 4.5 and 3.5 |
| Directivity Index (DI) dB (Averaged 100Hz – 10kHz, @ 2kHz) | 5.3dB and 5.2dB |
| Frequency Response (± 10 dB) | 115 Hz – 22 kHz |
| Frequency Response (± 3 dB) | 190 Hz – 14 kHz |
| Grille Properties | Aluminum, Standard-Flange, Powder-Coated, White, Snap-Fit |
| Low Frequency Voice Coil | 0.75 in / 19 mm |
| Max. Ceiling Thickness | 1.5 in / 38.1 mm |
| Max. Continuous Power RMS | 20W |
| Max. Program Power | 40 W |
| Minimum Impedance (Ω Ohms) | 8 Ω |
| Minimum Ceiling Thickness | 0.1 in / 2.5 mm |
| Nominal Impedance (Ω Ohms) | 8 Ω |
| Fullrange Driver | 3″ Polypropylene driver with butyl rubber surround |
| Sensitivity dB @ 1W/1M | 85 dB |
| Sensitivity dB @ 2.83V/1M | 85 dB |
| Tap Selector | Rotary Switch |
| Transformer Options | 25 / 70.7 / 100 V, 8 Ohm direct |
| Transformer Taps (25V/70.0V/100V) | 1.3W/10W/30W |
| Visible Diameter | 6.3 in / 160 mm |
| Visible Height | 0.6 in / 15.2 mm |
