CM1001D-T-BK
฿41,020.00

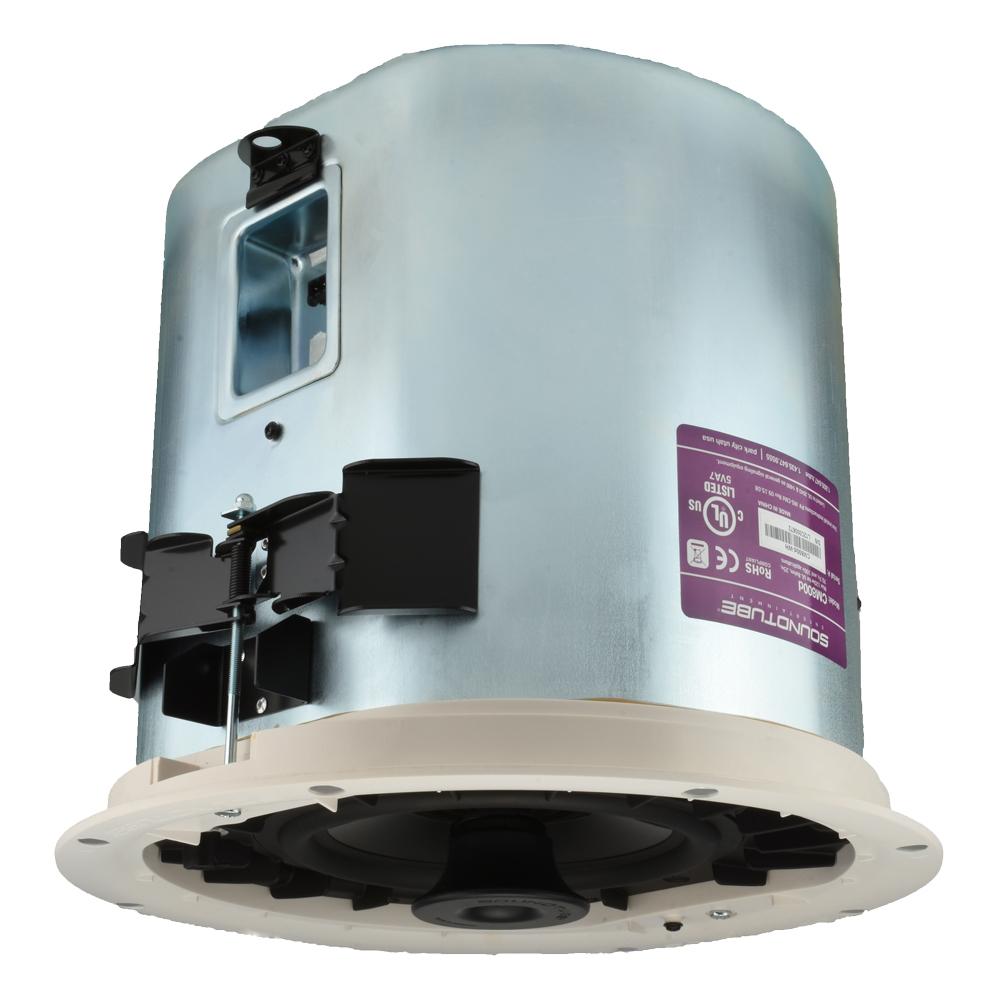

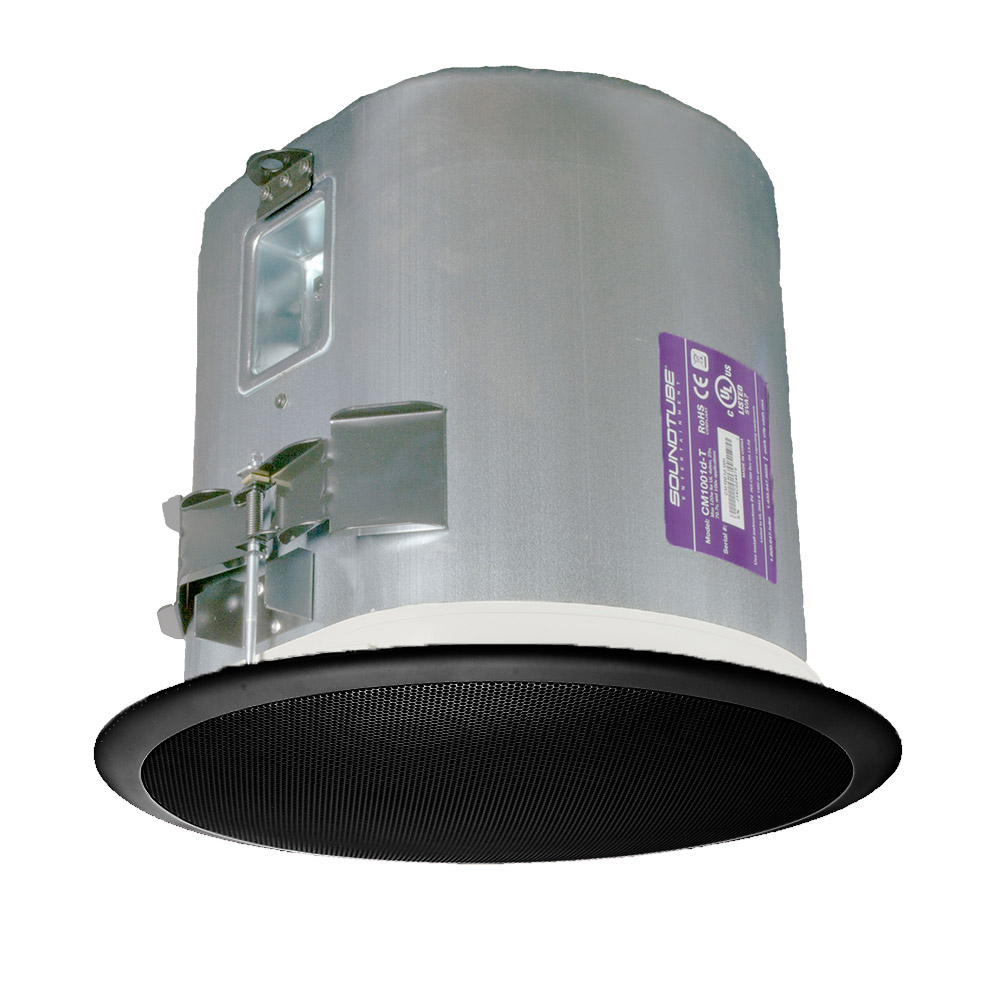

SoundTube CM1001D-T In Ceiling Subwoofer Kit in Black with Transformer

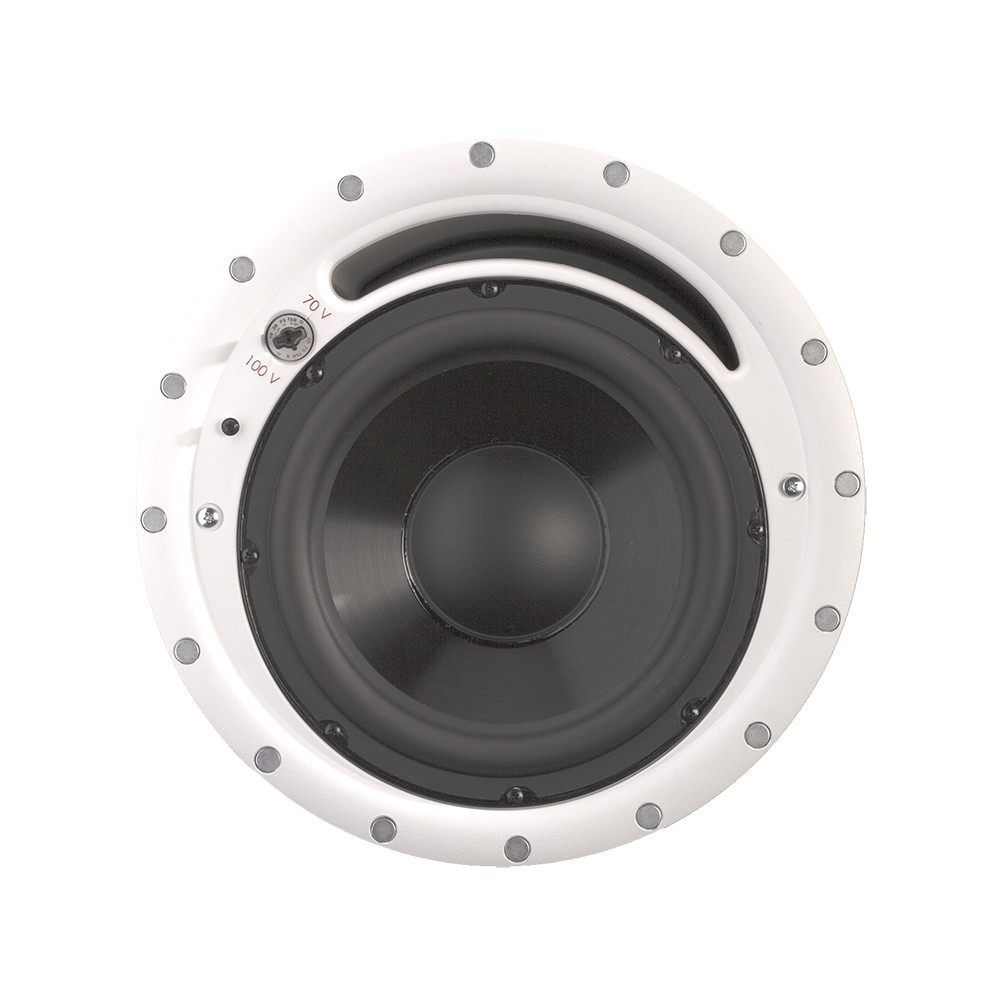

One 10 inch polypropylene cone with a butyl rubber surround on a reinforced ABS baffle. High output and maximum efficiency with an accentuated 70 Hz peak to maximize listener’s low-frequency experience. Extra-large SoundTube-specific 12.9 liter steel deep can for quality bass response. Rapid-installation, blind-mount, fixed-wing mounting mechanism with constant-tension design affixing to ceiling thicknesses ranging from 0.25 inch (6.4 mm) to 1.91 inch (48.5 mm). Easy-access five-position tap switch for 25-, 70.7-, 100-volt and transformer bypass position. Steel grille with protective powder-coated finish for lasting durability plus a tool-free strap for easy installation. Baffle-mounted, flared and tuned port for maximum efficiency and frequency response. UL 1480 (UEAY) and 2043, CE (EMC Directive 89/366/EEC, EN55020, EN55013) approved.
Included accessories: Color-coded (purple) tile bridge, grille, UL-rated cover plate, four-pin Euroblock, paint shield and restraint cable.
| Color | Black |
|---|---|
| UPC | 752830439580 |
| Manufacturer | SoundTube |
| Manufacturer’s Category | CMi In-Ceiling |
| Shipping Weight | 27.1 lbs / 12.29 kg |
| Carton Height | 17.5 in / 444.5 mm |
| Carton Length | 17 in / 431.8 mm |
| Carton Width | 17.5 in / 444.5 mm |
| Certifications | CE, RoHS, UL1480A, UL2043 |
| Enclosure Properties | ABS Glass Fiber Reinforced, Injection Molded, Ported |
| Enclosure Volume | 790 cu in / 12945.78 cu cm |
| Included Accessories | Conduit Plate, Euroblock, Grille, Hanging Hardware, Paint Mask, Tile Bridge |
| Optional Accessories | Black Metal Grille (GRL-CM6/8-BK)|Black Weather-Guard Grille (GRL-CM6/8-WG-BK)|Black Flangeless Grill (GRL-CM6/8-FLG-BK)|Tile Bridge (AC-CM8-TB)|Pre-Construction Bracket (AC-CM8-PCB)|Junction Box (AC-CM-JBOX) |
| Source Inputs | 4 Pin 5.08mm Euroblock |
| Backcan Diameter | 11.68 in / 296.7 mm |
| Backcan Height | 12.46 in / 316.5 mm |
| Crossover Frequency | 100.0 Hz |
| Cutout Width/Diameter | 12.75 in / 323.9 mm |
| Frequency Response (± 10 dB) | 41 Hz – 224 Hz |
| Frequency Response (± 3 dB) | 55 Hz – 118 Hz |

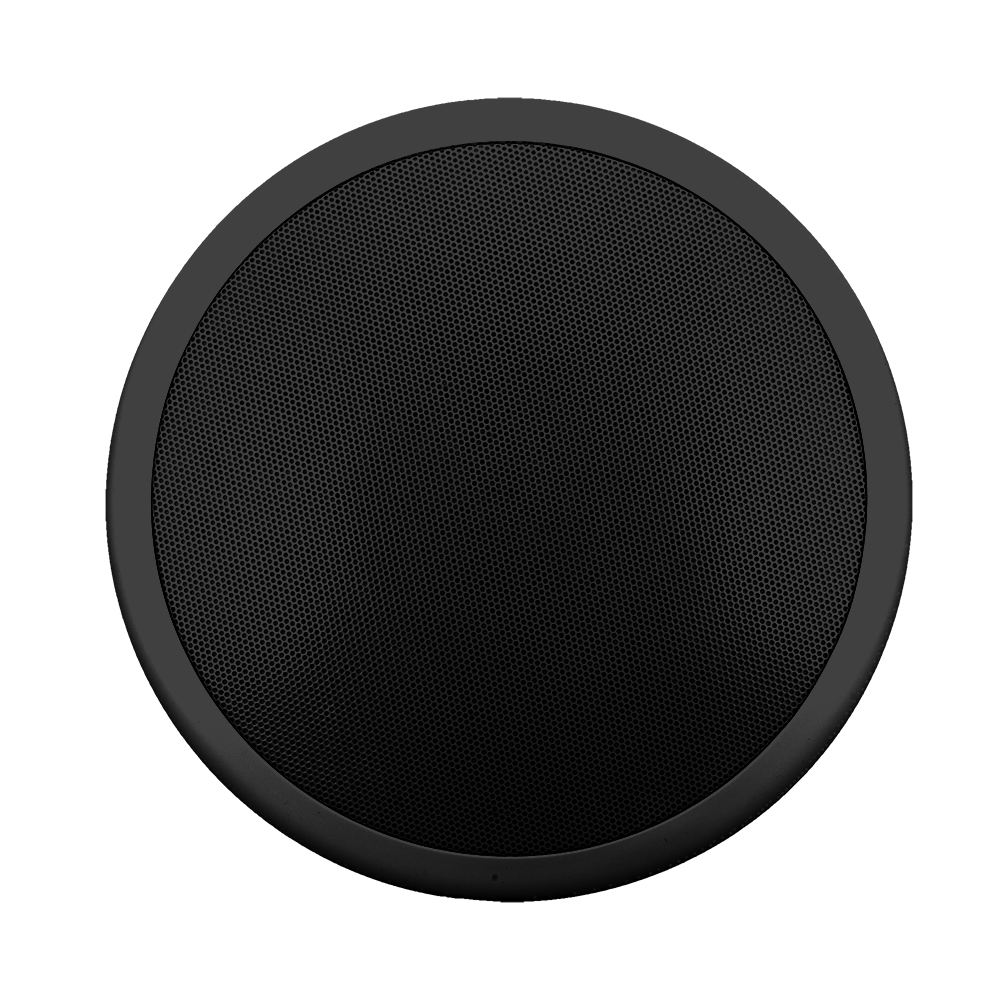

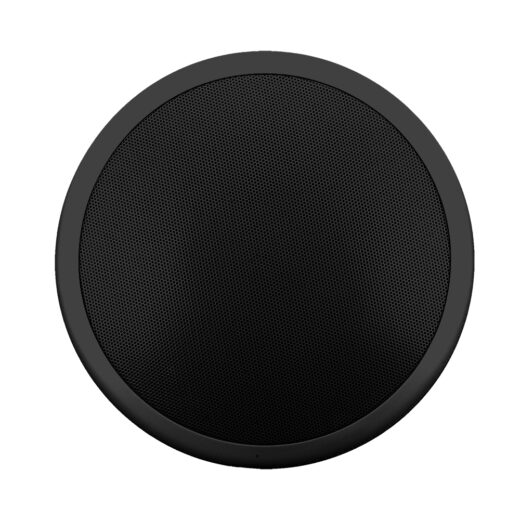

| Grille Properties | Black, Standard-Flange, Magnetic, Powder-Coated, Steel |
| Low Frequency Voice Coil | 1.38 in / 35 mm |
| Low Pass Crossover | 6dB per octave 1st order |
| Max. Ceiling Thickness | 1.91 in / 48.5 mm |
| Max. Continuous Power RMS | 150W |
| Max. Program Power | 300 W |
| Minimum Impedance (Ω Ohms) | 5.3 Ω |
| Minimum Ceiling Thickness | 0.25 in / 6.4 mm |
| Nominal Impedance (Ω Ohms) | 4 Ω |
| Subwoofer Driver | 10″ Polypropylene Cone w/ Butyl Rubber Surround |
| Sensitivity dB @ 1W/1M | 89 dB |
| Sensitivity dB @ 2.83V/1M | 92 dB |
| Tap Selector | Rotary Switch |
| Transformer Options | 25 / 70.7 / 100 V, 4 Ohm direct |
| Transformer Taps (25V/70.0V/100V) | 19W/150W/150W |
| Visible Diameter | 14.76 in / 374.9 mm |
| Visible Height | 1.08 in / 27.4 mm |
