CIRA506
฿3,549.00

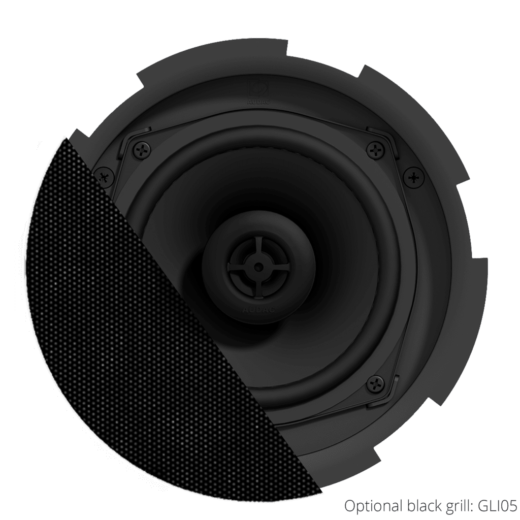

QUICKFIT™ 2-WAY 5 1/4″ CEILING SPEAKER WITH TWISTFIX™ GRILL
The CIRA5 features a 5 ¼” driver using polypropylene cone material, combined with a 1” Mylar tweeter fitted with a phase plug for excellent off axis performance. The selected materials guarantee a low distortion performance with smooth and flat frequency response. A continuous power handling of 30 Watt (RMS) and maximum power handling of 60 watt is achieved, while fitted with a multi-tapping 100V line transformer with tappings for 24W, 12W, 6W, 3W, 1.5W and an 8 Ohm or 16 Ohm bypass connection.
VARIANTS
- CIRA506/W – White version, 8Ω & 6 Watt @ 100V
- CIRA524/W – White version, 8Ω & 24 Watt @ 100V
- CIRA530D/W – White version, 16 Ω
| SYSTEM SPECIFICATIONS | ||||
|---|---|---|---|---|
| Max. Power | 60 W | |||
| RMS Power | 30 W | |||
| Sensitivity (1W/1m) | 87 dB | |||
| Speaker type | 2-way coaxial | |||
| Impedance | 16 Ω (CIRA530D) | |||
| 8 Ω (CIRA506 & CIRA524) | ||||
| Connectors | Multi-tap Fast-con™ connections | |||
| Sound Pressure (Max. W/1m) | @ 100 V | 102 dB | ||
| Frequency | Response (± 3 dB) | 60 Hz – 20 kHz | ||
| Range (-10 dB) | 45 Hz – 20 kHz | |||
| Dispersion | Conical | 145° | ||
| Drivers | LF | 5 ¼” Woofer | ||
| HF | 1” | |||
| Line Transformer Tappings | 1 | 6 W – 1667 Ω (CIRA506) | ||
| 24 W – 417 Ω (CIRA524) | ||||
| 2 | 3 W – 3333 Ω (CIRA506) | |||
| 12 W – 833 Ω (CIRA524) | ||||
| 3 | 1.5 W – 6667 Ω (CIRA506) | |||
| 6 W – 1667 Ω (CIRA524) | ||||
| PRODUCT FEATURES | ||||
|---|---|---|---|---|
| Cut-out measurement | 170 mm (Ø) | |||
| Dimensions | 193 x 83 mm (Ø x D) | |||
| Weight | 1.10 kg (CIRA506) | |||
| 1.15 kg (CIRA524) | ||||
| 1.05 kg (CIRA530D) | ||||
| Operating temperature | -20 °C ~ 60 °C | |||
| Construction | ABS | |||
| Front finish | TwistFix™ borderless finely perforated steel grill | |||
| Mounting | QuickFit™ mounting system | |||
| Colours | White (RAL9003) (CIRA506/W, CIRA524/W & CIRA530D/W) | |||
| Built-in depth | 83 mm (CIRA524) | |||
| 75 mm (CIRA506 & CIRA530D) | ||||
| Dimensions | 193 mm (Ø) | |||
