CHA530
฿19,159.00

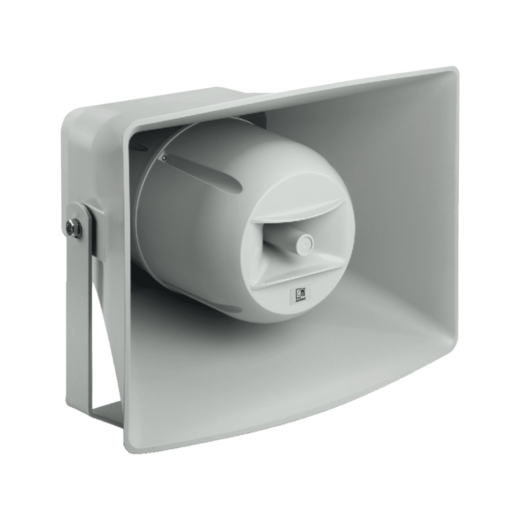

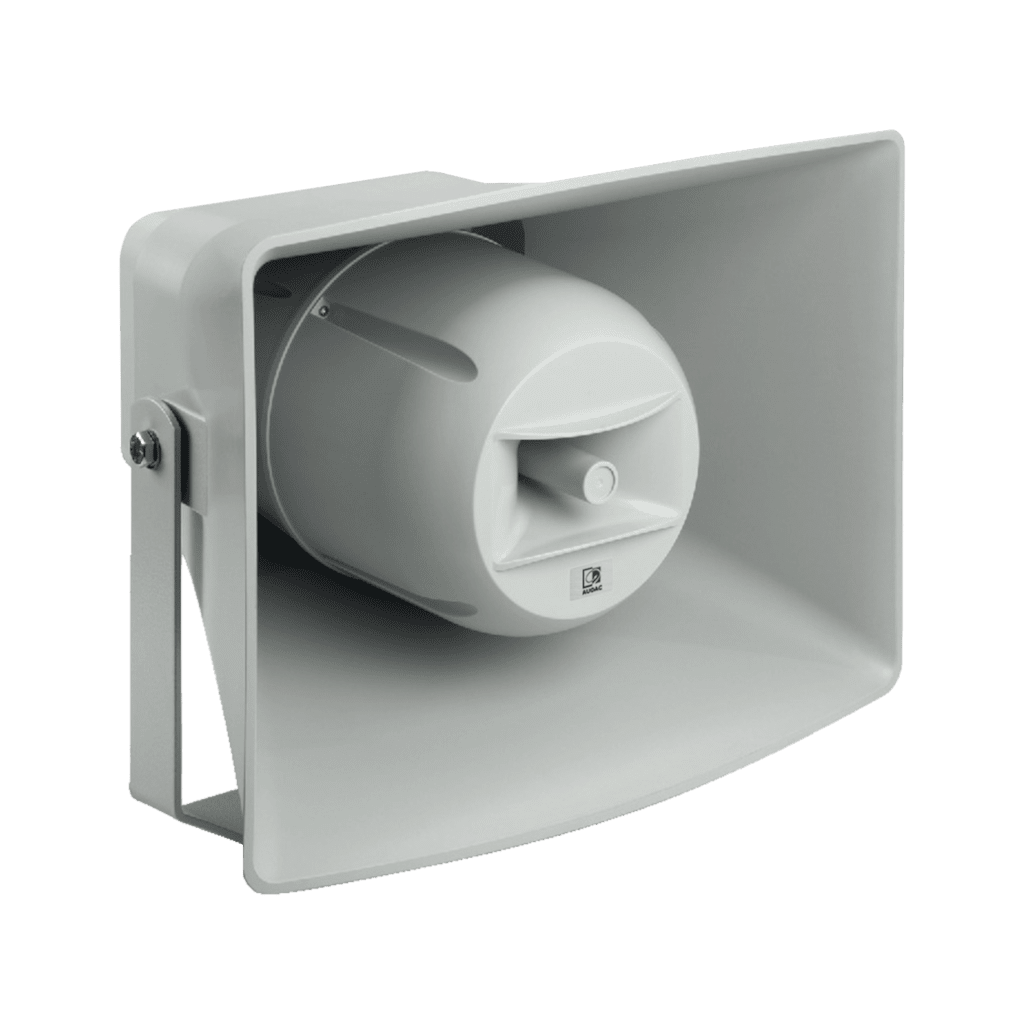

2-WAY HORN LOUDSPEAKER 5″
The construction is composed of a 1″ high frequency compression driver and a 5″ mid/low frequency driver. The selection of high-quality components and acoustic engineering craftmanship makes the CHA530 significantly better performing than other traditional horn speakers. A smooth frequency response and high efficiency ensures an extraordinary clarity of speech and extended frequency response for music.
It features an RMS power handling of 30 Watt and a max power handling of 60 Watt. The sensitivity measures 98 dB while a maximum continuous SPL of 113 dB can be achieved. The frequency response (±3 dB) starts from 110 Hz up to 16 kHz.
A multi-tapping line transformer allows the speaker to be used in 100 Volt and 70 Volt public address systems. It is connected using a waterproof rotatable AWX-5 connector whereby the desired power tap is selected depending on the rotation of the connector. Various power tappings for 30 Watt, 15 Watt, 7.5 Watt and 3.75 Watt are available.
The enclosure is constructed using high quality UV and impact resistant ABS materials and an included stainless steel mounting bracket allows secure mounting and tilting for perfect directional placement. This makes it comply with IP66 ingress protection requirements, resulting in a weatherproof solution for permanent outdoor installation.
Connection of the loudspeaker is done using a screw terminal block connector located in a waterproof connection box on the rear of the speaker.
| SYSTEM SPECIFICATIONS | ||||
|---|---|---|---|---|
| Speaker type | 2-way horn speaker | |||
| Max. Power | 60 W | |||
| RMS Power | 30 W | |||
| Sensitivity (1W/1m) | 98 dB | |||
| Drivers | 5” MF / LF Woofer | |||
| Ingress Protection rating | IP66 | |||
| Connection | AWX5™ waterproof | |||
| Line Transformer Tappings | 1 | 167 Ω – 100 V / Not used – 70 V / 30 W | ||
| 2 | 333 Ω – 100 V / 30 W – 70 V / 15 W | |||
| 3 | 667 Ω – 100 V / 15 W – 70 V / 7.5 W | |||
| 4 | 1333 Ω – 100 V / 7.5 W – 70 V / 3.75 W | |||
| Sound Pressure (Max. W/1m) | @ 100 V | 113 dB | ||
| Frequency | Response (± 3 dB) | 110 Hz – 16 kHz | ||
| Crossover | Type | Passive built-in | ||
| Dispersion | Horizontal | 110° | ||
| Vertical | 60° | |||
| Drivers | HF | 1″ HF Horn tweeter | ||
| PRODUCT FEATURES | ||||
|---|---|---|---|---|
| Dimensions | 310 x 215 x 330 mm (W x H x D) | |||
| Weight | 4.7 kg | |||
| Construction | Impact & UV resistant ABS | |||
| Colours | Light grey (RAL7035) | |||
| Mounting & handling | Powder coated steel | |||
| Accessories | Included | Mounting bracket | ||
