CENA812
฿2,497.00

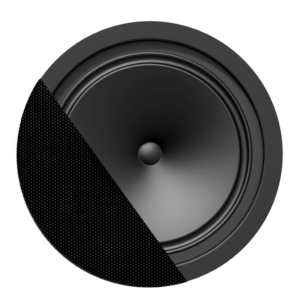

SPRINGFIT™ 8″ CEILING SPEAKER
The CENA812 features a 8” broadband driver with a continuous power handling of 20 Watt (RMS) and maximum power handling of 40 Watt. It is fitted with a multi-tapping 100V line transformer with tappings for 12W and 6W.
VARIANTS
- CENA812/W – White version – 8Ω and 100V
- CENA812/B – Black version – 8Ω and 100V
- CENA820D/W – White version – 16Ω
| SYSTEM SPECIFICATIONS | ||||
|---|---|---|---|---|
| Max. Power | 40 W | |||
| RMS Power | 20 W | |||
| Sensitivity (1W/1m) | 99 dB | |||
| Speaker type | Broadband | |||
| Impedance | 8 Ω (CENA812) | |||
| 16 Ω (CENA820D) | ||||
| Connection | Screw terminal | |||
| SnapConnect™ | ||||
| Drivers | Dual cone | |||
| 8” | ||||
| Sound Pressure (Max. W/1m) | @ 100 V | 112 dB | ||
| Frequency | Response (± 3 dB) | 100 Hz – 15 kHz | ||
| Range (-10 dB) | 60 Hz – 18 kHz | |||
| Line Transformer Tappings | 1 | 12 W / 833 Ω | ||
| 2 | 6 W / 1667 Ω | |||
| Dispersion | Conical | 130° | ||
| PRODUCT FEATURES | ||||
|---|---|---|---|---|
| Cut-out measurement | 207 mm (Ø) | |||
| Dimensions | 232 x 81 mm (Ø x D) | |||
| Construction | ABS | |||
| Front finish | borderless finely perforated steel grill | |||
| Built-in depth | 77 mm | |||

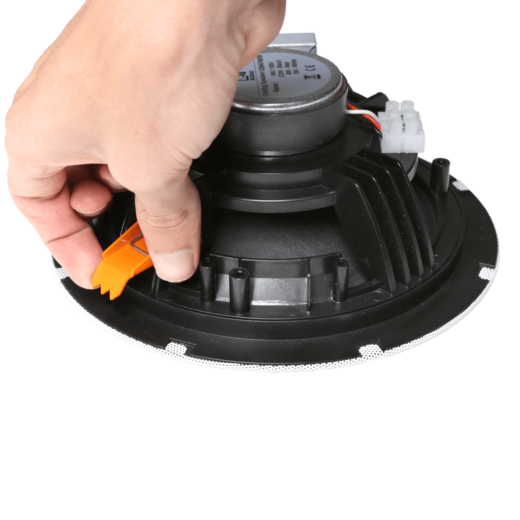

| Mounting | SpringFit™ mounting system | |||
| Colours | White (RAL9003) (CENA812/W) | |||
| Black (RAL9005) (CENA812/B) | ||||
| Operating temperature | -15 °C ~ 55 °C | |||
| Weight | 1.06 kg | |||
