This elegant and unobtrusive grill is held in place by means of powerful neodymium magnets, making assembly and disassembly very simple, but still reliable enough for keeping the grill in place during the complete lifetime of the loudspeaker. When the grill is removed, it’s clear for anyone to see that the CELO speakers are made by using only the highest quality materials, guaranteeing an unsurpassed sound experience.
One 1” aluminum cone tweeter is held in place by an acoustically optimized arm in front of a 6” aluminum cone woofer. Together with the crossover network which is made of high-quality components, this results in true to nature sound reproduction for a warm and detailed sound with an RMS power of 60 Watt.

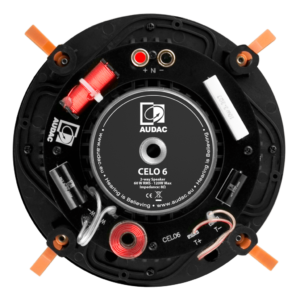

To guarantee a lifetime stability, secure mounting and easy installation, the loudspeaker connection is made using Gold plated spring clamp connectors. The mounting of the loudspeaker into the ceiling should be done by a quick-fixing mechanism which can be tightened by four screws and the front grill is held into place by neodymium magnets.
SYSTEM SPECIFICATIONS | ||||
---|---|---|---|---|
Speaker type | 2-way coaxial | |||
Max. Power | 120 W | |||
RMS Power | 60 W | |||
Impedance | 8 Ω | |||
Sensitivity (1W/1m) | 88 dB | |||
Sound Pressure (Max. W/1m) | 106 dB | |||
Connectors | Gold-Con™ spring clamps | |||
Frequency | Response (± 3 dB) | 55 Hz – 20 kHz | ||
Range (-10 dB) | 44 Hz – 20 kHz | |||
Crossover | Type | Passive built-in | ||
Frequency | 3 kHz | |||
Dispersion | Conical | 140° | ||
Drivers | HF | 1” Aluminium membrane | ||
LF | 6” Aluminium membrane |
PRODUCT FEATURES | ||||
---|---|---|---|---|
Dimensions | 230 x 103 mm (Ø x D) | |||
Weight | 1.650 kg | |||
Construction | ABS | |||
Front finish | Thin edged white grill (RAL9003) | |||
Cut-out measurement | 205 mm (Ø) | |||
Built-in depth | 100 mm | |||
Mounting & handling | 4 Screw quick-fixing mechanism | |||
Operating temperature | -20 °C ~ 60 °C | |||
Colours | Black frame & white grill | |||
Accessories | Included | Cut-out template | ||
GLC06/W – White grill (RAL9003) | ||||
Optional | WTR24 – 24W 100V line transformer | |||
GLC06/B – Black grill (RAL9005) | ||||
GLC06/P – Paintable grill |
