CAP248
฿64,812.00

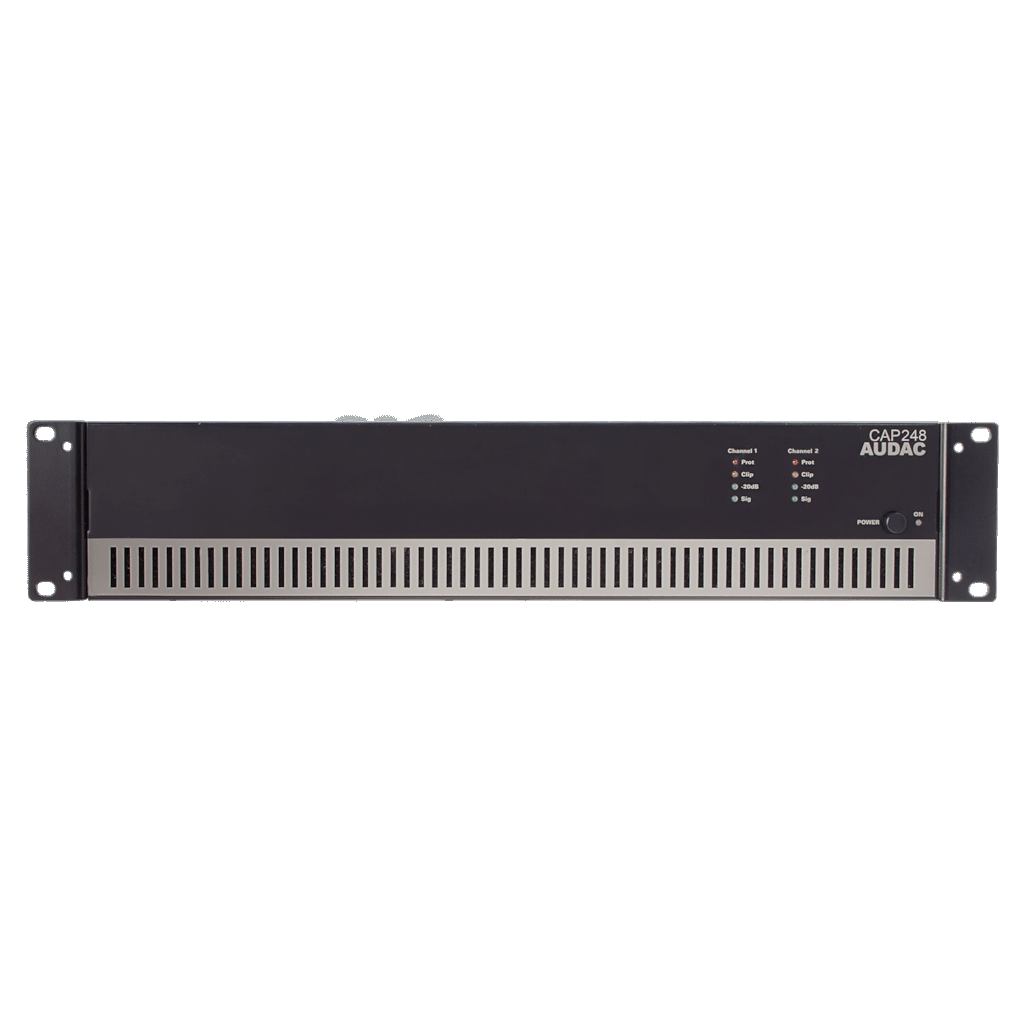

DUAL-CHANNEL POWER AMPLIFIER 2 X 480W 100V

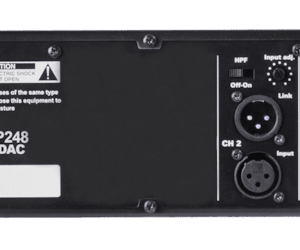

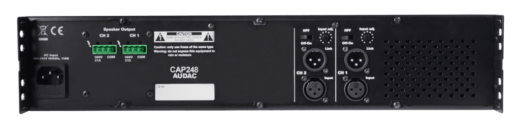

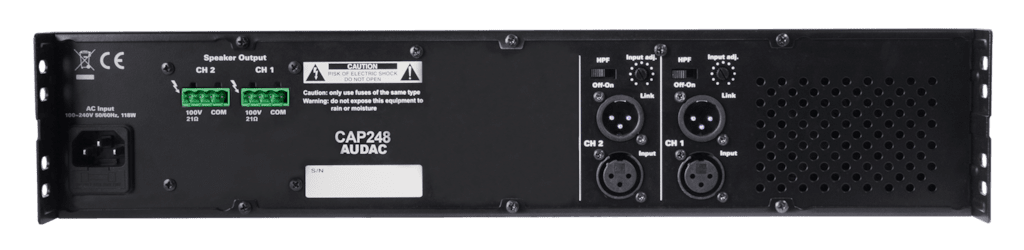

A built-in multipurpose protection circuit protects against DC malfunction, Short circuit, overheating, overload and limits the signal when necessary. The input connections are performed using balanced XLR connectors and Link output connectors are provided for link through to other amplifiers. Besides, a high-pass filter switch (400 Hz) and a Gain adjustment potentiometer are provided for each channel. The output connections are performed using reliable terminal block connectors and this all is housed into a solid constructed, double rack space (2 HE) 19” rack mounting housing.
| SYSTEM SPECIFICATIONS | ||||
|---|---|---|---|---|
| RMS Power | 2 x 480 W | |||
| Signal / Noise | > 100 dB | |||
| THD+N (@ 1 kHz) | < 0.3% (1/2 Rated Power) | |||
| Crosstalk (@ 1 kHz) | < 80 dB | |||
| Technology | Class-D | |||
| Common mode rejection ratio | 70 dB | |||
| Protection | DC Short circuit | |||
| Over heating | ||||
| Over load | ||||
| Signal limiting | ||||
| Cooling | Temperature controlled FAN | |||
| Operating temperature | 0° ~ 40° @ 95% Humidity | |||
| Frequency | Response (± 3 dB) | 50 Hz – 22 kHz | ||
| Power | Supply | Switching mode | ||
| Source | 230 ~ 240 V AC / 50 Hz | |||
| Inputs | Sensitivity (1W/1m) | -0.5 dB ~ 10.5 dB | ||
| Impedance | 10 kΩ balanced | |||
| Connector | XLR female with Male Linkthrough | |||
| Outputs | Voltage / Impedance | 100 V / 21 Ω | ||
| Connector | 4-pin Euro Terminal Block (Pitch – 5.08 mm) | |||
| PRODUCT FEATURES | ||||
|---|---|---|---|---|
| Dimensions | 482 x 88 x 420 mm (W x H x D) | |||
| Weight | 7.500 kg | |||
| Mounting | 19” | |||
| Unit height | 2 HE | |||
| Construction | Steel | |||
| Colours | Black | |||
| Accessories | Included | 2 x 4-pin Euro Terminal Block outputs connector | ||
| Optional | CPE100 Rack mount handles | |||
