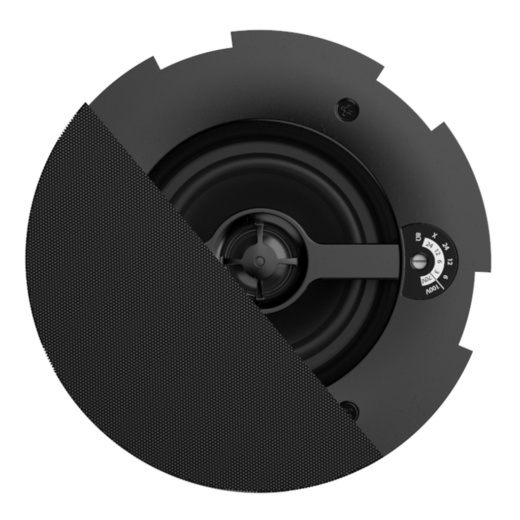

SAFELATCH™ 2-WAY 4″ CEILING SPEAKER WITH TWIST-FIX™ GRILL
The 2-way construction combination with metal rear-dome guarantees premium performance for demanding applications. A continuous power handling of 30 Watt (RMS) and maximum power handling of 60 watt is achieved, while fitted with a rotary switch for tapping of the 70/100V line transformer with tappings for 24W, 12W, 6W and an 8 Ohm bypass connection.
| SYSTEM SPECIFICATIONS | ||||
|---|---|---|---|---|
| Peak power handling | 120 W | |||
| Program power handling | 60 W | |||
| RMS/AES power handling | 30 W | |||
| Sound Pressure (Max. W/1m) | @ 100 V | 101 dB | ||
| Sensitivity (1W/1m) | 84 dB | |||
| Dispersion | Conical | 155° | ||
| Frequency | Response (± 3 dB) | 105 Hz – 20 kHz | ||
| Range (-10 dB) | 70 Hz – 20 kHz | |||
| Speaker type | 2-way coaxial | |||
| Connection | Ceramic screw terminal with link through | |||
| Line Transformer Tappings | 1 | 208 Ω – 100 V / Not used – 70 V / 24 W | ||
| 2 | 417 Ω – 100 V / 24 W – 70 V / 12 W | |||
| 3 | 833 Ω – 100 V / 12 W – 70 V / 6 W | |||
| 4 | 1667 Ω – 100 V / 6 W – 70 V / 3 W | |||
| PRODUCT FEATURES | ||||
|---|---|---|---|---|
| Cut-out measurement | 170 mm (Ø) | |||
| Dimensions | 192 x 110 mm (Ø x D) | |||
| Built-in depth | 110 mm | |||
| Operating temperature | -20 °C ~ 60 °C | |||
| Construction | ABS and powder coated steel | |||

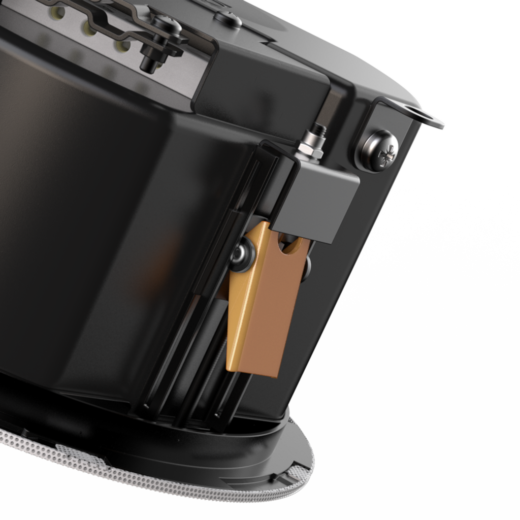

| Mounting | SafeLatch™ mounting system | |||
| Weight | 2.26 kg | |||
