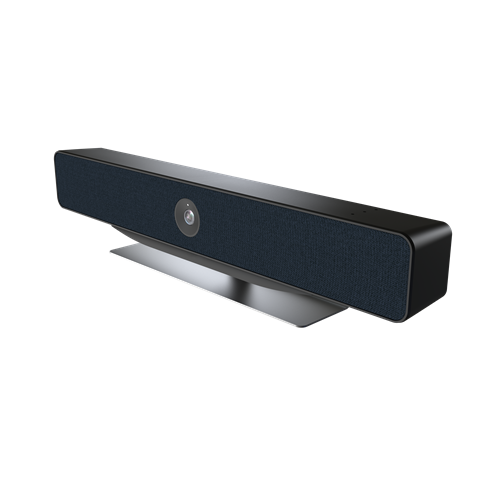

C30R

120° Ultra wide angle

Equipped with F1.8 aperture and ultra wide angle lens C30R can easily cover the whole meeting room.

4K Ultra-clear image

Equiped with a 8MP CMOS Sensor, C30R can output video at 4k ultra HD resolution.

AI pure voice

With the help of AI speech processing technology, the overall audio performance of the product is greatly improved

Daisy chain with A20s to

suit different room sizes Use ethernet cables to daisy chain the C30R all-in-one speakermic camera with up to 4 A20 units according to the room size.

Speaker tracking

With the help of face detection and DOA (direction of arrival) technology, C30R can detect the person who speaks and automatically focus on the speaker.

Close-up group

Built in face detection capabilities allow the C30R to automatically crop images and clearly show participants faces on screen

Auto-framing

To frame meeting participants in center screen

Technical Parameters

Camera features	f/1.8 aperture Sensor: Sony 1/2.8 inches CMOS Maximum pixels: 8MP 2.2mm fixed-focus FOV(D):120° FOV(H): 110° FOV(V): 75°
Video characteristics	Lens distortion correction supported Anti-flickering supported Automatic white balance and exposure supported 3D noise suppression supported UHD (4K) Aspect ratio: 16:9 YUV：max of 480P@30fps MJPEG：max of 1080P@30fps H264：max of 2160P@25fps Speaker tracking supported Closeup group supported Auto framing supported
Microphone features	5-element 180° microphone Array -38dBV/Pa 94dB SPL@1kHz 63dBV/Pa 94dB SPL@1kHz,A-weighted Effective pickup distance: 5m
Speaker characteristics	Rated output power: 4Ω/1.5W Speaker frequency response: 160Hz ~20kHz Speaker volume: 80±3dB（800,1000,1200,1500Hz）@1W/1m
Audio characteristics	Direction of arrival（DOA）supported Beamforming supported Maximum background noise suppression:18dB Full duplex communication Echo cancellation: coupling loss≥56dB Automatic Gain Control (AGC) within 5 meters Reverberation suppression: RT60<1s
Daisy chain	POE UTP RJ45 (CAT6) Maximum daisy chain units: 4 units of A20
Physical characteristics	Height: 81mm (3.2 inches) Width: 570mm (22 inches) Depth: 77mm (3 inches) Net weight: 2033g（incl. brachet 250g） Gross weight: 3410g Color: lunar rock gray Desktop Bracket（standard）/TV brachet（optional）/wall brachet（optional）
Power and connectivity	External power supply: DC 48V/1.35A Compatible operating systems: Windows/Mac/Linux USB port: USB2.0 Type-C

ALL-IN-ONE SPEAKERMIC CAMERA
