ATEO2
฿3,124.00

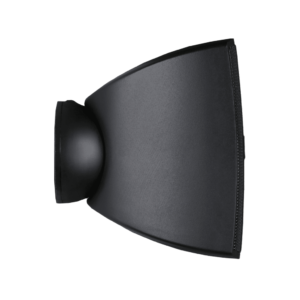

COMPACT WALL SPEAKER WITH CLEVERMOUNT™ 2″
The internal self-resetting network provides optimal overload protection. It features a stunningly designed and elegant looking ABS housing which is fitted with high-quality components. What makes this loudspeaker range so exceptional is the specially designed mounting bracket using Clevermount™ technology, making the loudspeakers cabinet flow together with the mounting bracket providing great ease for installing the loudspeaker in one good-looking entity.
The mounting and connection of the loudspeaker are done by mounting the wall-plate to the desired location. The terminal block connector should be fitted to the wires coming from the amplifier and plugged into the counterpart on the speakers’ side. The only next step is clipping the speaker onto the wall plate and tightening it by a quarter turn until it’s fixed.
VARIANTS
- ATEO2/B – Black version – 8Ω
- ATEO2/W – White version – 8Ω
- ATEO2D/B – Black version – 16Ω
- ATEO2D/W – White version – 16Ω
| SYSTEM SPECIFICATIONS | ||||
|---|---|---|---|---|
| Speaker type | Full range | |||
| Max. Power | 20 W | |||
| RMS Power | 10 W | |||
| Impedance | 8 Ω (ATEO2) | |||
| 16 Ω (ATEO2D) | ||||
| Sensitivity (1W/1m) | 83 dB | |||
| Sound Pressure (Max. W/1m) | 93 dB | |||
| Ingress Protection rating | IP40 | |||
| Connectors | 2-pin Euro Terminal Block | |||
| Drivers | 2” Aluminium full range | |||
| Incline angle | Left | 25° | ||
| Right | 25° | |||
| Bottom | 25° | |||
| Top | 15° | |||
| Frequency | Response (± 3 dB) | 120 Hz – 20 kHz | ||
| Range (-10 dB) | 100 Hz – 20 kHz | |||
| Dispersion | Horizontal | 145° | ||
| Vertical | 170° | |||
| PRODUCT FEATURES | ||||
|---|---|---|---|---|
| Dimensions | 80 x 136 x 115 mm (W x H x D) | |||
| Weight | 0.390 kg | |||
| Operating temperature | -20 °C ~ 60 °C | |||
| Mounting | Clevermount™ | |||
| Construction | ABS | |||
| Front finish | Steel grill | |||
| Colours | Black (RAL9005) (ATEO2/B, ATEO2D/B) | |||
| White (RAL9003) (ATEO2/W, ATEO2D/W) | ||||
| Accessories | Optional | WTR06 – 6W 100V line transformer | ||
