AMP22
฿16,322.00

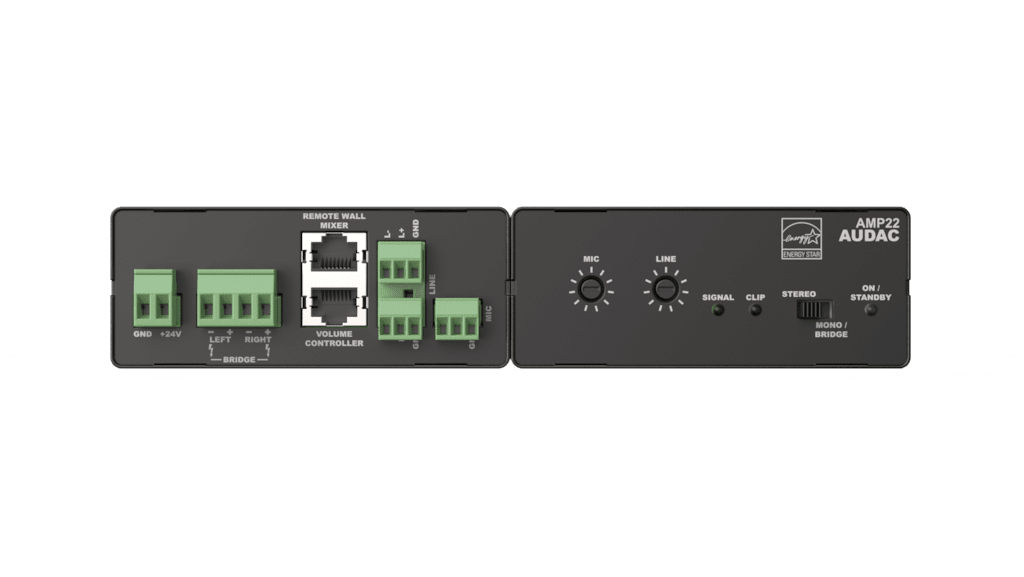

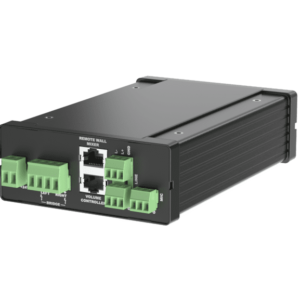

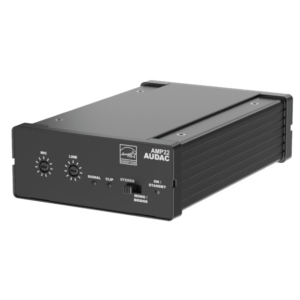

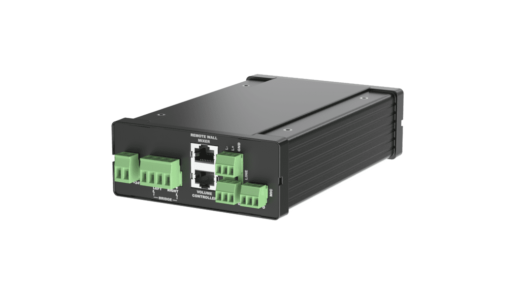

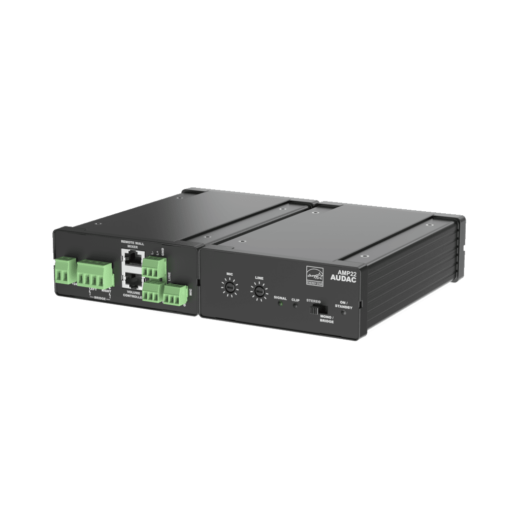

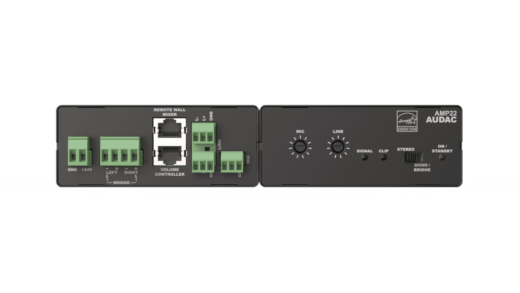

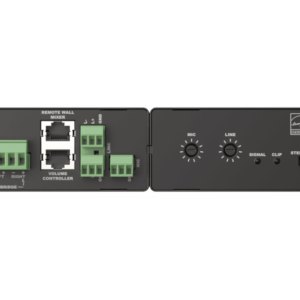

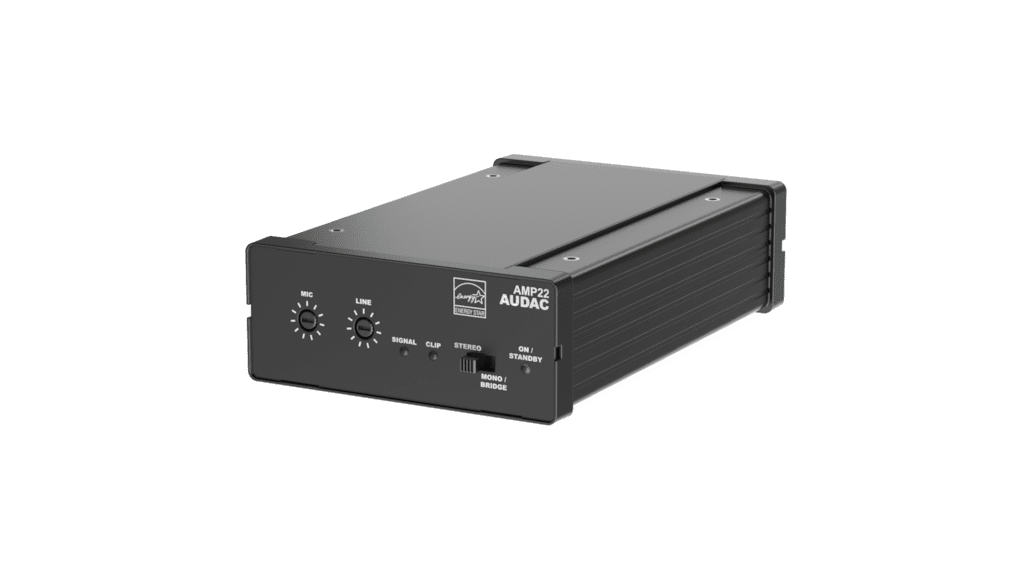

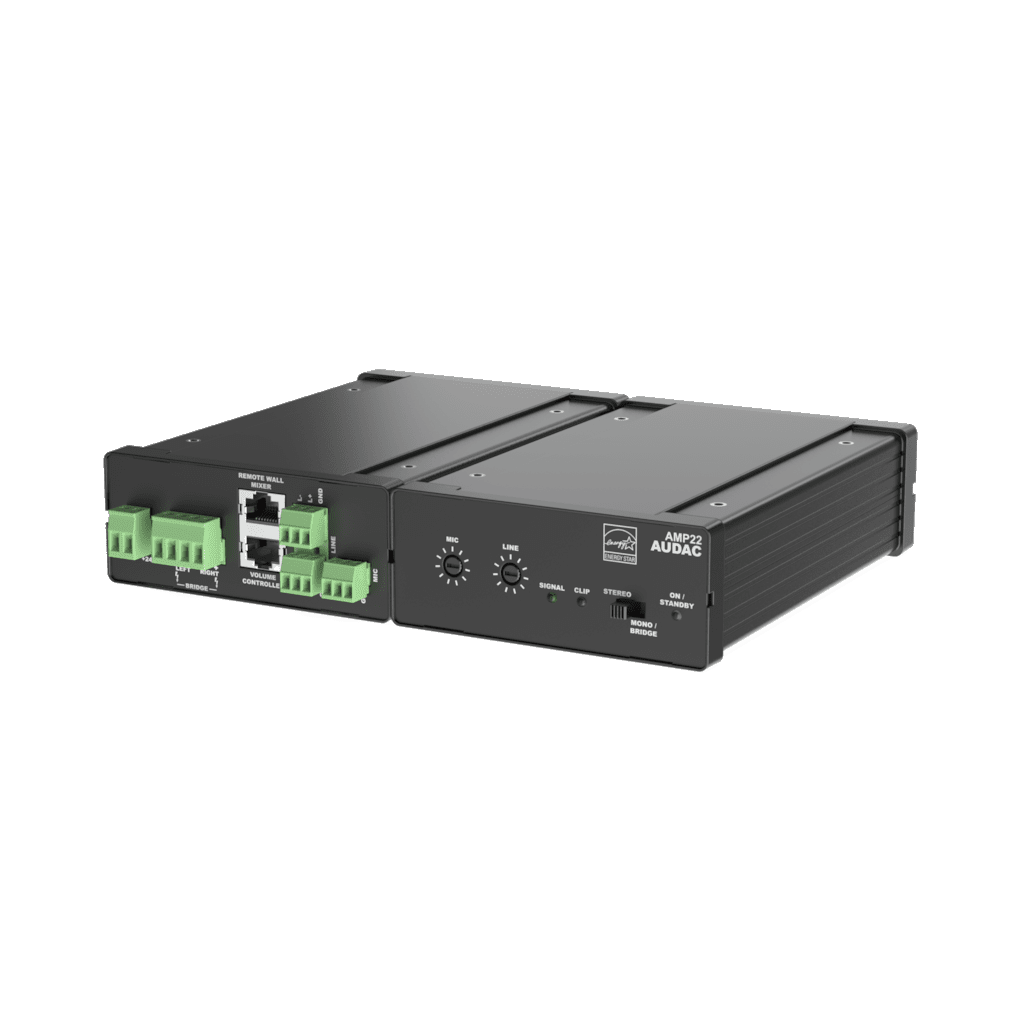

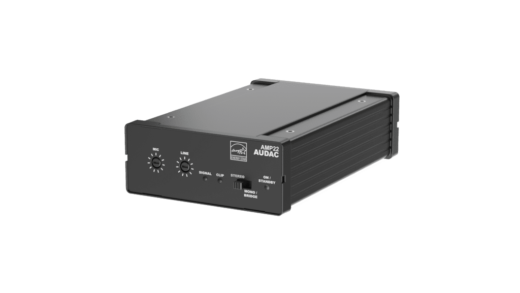

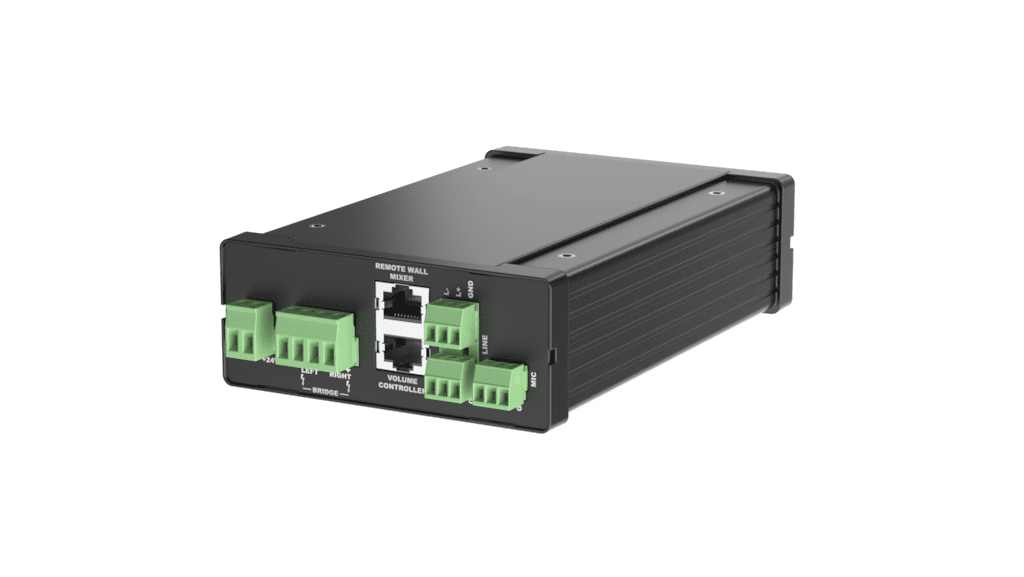

MINI STEREO AMPLIFIER 2 X 15W – BALANCED LINE & MIC + WP2XX INPUT
The compact size and very high efficiency make it perfectly suited to be hidden in a closet, on a false ceiling or mounted under a desk or table. The combination of the stereo balanced line, with microphone input, makes it perfectly suited for applications where it should be used in combination with projection screens and video sources while a microphone is connected. Two gain potentiometers make it possible to control the sensitivity and balance between music and speech, while a switch allows bridging of the output channels to obtain one channel with merged output power.
A remote wall mixer can be connected for applications where local mixing for the inputs is desirable, while large distances can be covered between the source and amplifier using simple CAT5E or higher twisted pair cabling. The volume controller input allows the connection of an additional wall controller for overall volume control.
The Class-D amplifier technology, standby mode and included switching power supply makes this device compliant to the highest energy efficiency and environmental requirements. A variety of optionally available mounting brackets for the AUDAC S-Box product range are allowing desk, closet or 19” equipment rack installation.
| SYSTEM SPECIFICATIONS | ||||
|---|---|---|---|---|
| THD+N (@ 1 kHz) | < 0.1% | |||
| Crosstalk (@ 1 kHz) | < -75 dB | |||
| Signal / Noise | > 95 dB | |||
| Efficiency | 87% | |||
| Cooling | Convection cooled | |||
| Protection | Over heating | |||
| Over load | ||||
| DC Short circuit | ||||
| Signal limiting | ||||
| Energy certification | Energy Star 3.0 | |||
| Outputs | Type | 1 x Stereo Loudspeaker | ||
| Connector | 4-pin Euro Terminal Block (Pitch – 5.08 mm) | |||
| Power | Supply | 24V DC (PSD241 switching Power supply included 100 ~ 240V AC / 47 ~ 63 Hz) | ||
| Inputs | Balanced Stereo | Type | 1 x Stereo Balanced Line | |
| Connector | 2 x 3-pin Euro Terminal Block (Pitch – 3.81 mm) | |||
| Impedance | 20 kΩ | |||
| Sensitivity (1W/1m) | -12 dBV ~ +12 dBV | |||
| Balanced Microphone | Type | 1 x Balanced Microphone | ||
| Connector | 3-pin Euro Terminal Block (Pitch – 3.81 mm) | |||
| Impedance | 47 kΩ | |||
| Sensitivity (1W/1m) | -50 dBV ~ -18 dBV | |||
| Other | Connector | RJ45 | ||
| Type | 1 x Remote Volume controller | |||
| Connector | RJ45 | |||
| Power | Consumption | Standby | 0.8 W (PSD241 included) | |
| RMS Power | @ 4 Ω Stereo | 2 x 15 W | ||
| @ 8 Ω Bridge | 30 W | |||
| @ 8 Ω Stereo | 2 x 7.5 W | |||
| PRODUCT FEATURES | ||||
|---|---|---|---|---|
| Dimensions | 108 x 44 x 165 mm (W x H x D) | |||
| Weight | 0.800 kg | |||
| Accessories | Included | PSD241 – Power supply 24V / 1.67 A (Efficiency Level V) | ||
| Optional | VC3208 Remote volume controller | |||
| MBS1xx Optional Wall mounting brackets | ||||
| TR3030 100V Transformer 30 W | ||||
| WP2xx Universal wall panel | ||||
