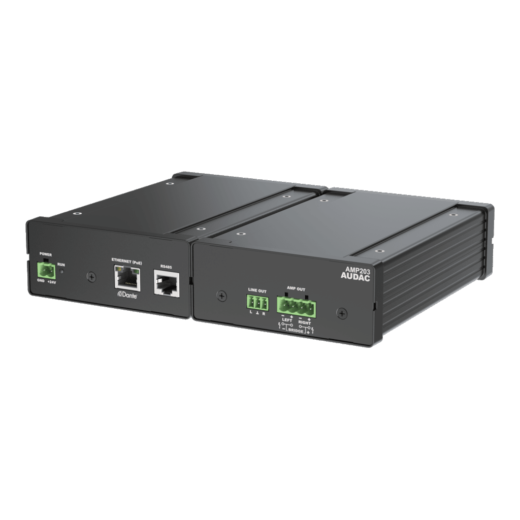

Various DSP functionalities are implemented in the AMP203. This allows all configurations to be made in AUDAC Touch™ 2 or via RS485 and Ethernet, making it a fully-fletched 2 x 30W amplifier. The output connector has been implemented using a 4-pin terminal block connector, featuring an output power of 30W per channel and 60W when bridged.
The 3-pin terminal block stereo line output connector gives the option of looping the AMP203 to the next amplifier.
Using PoE (Power over Ethernet) this extremely power-efficient amplifier receives both power and signal through a single networking cable, this way flexibility is maximized while needed cabling is kept at a minimum.
The compact convection cooled enclosure eliminates any humm or buzz otherwise caused by a fan. Various optional mounting brackets are available like the MBS1xx series, which allow it to be mounted under a desk, in a closet, on the wall, on top of a dropped ceiling or to a 19″ equipment rack. This proves that the AMP203 is the perfect solution for compact to medium-sized applications in corporate, hospitality or retail environments.
Decentralize your system
Thanks to the multifunctional use of the AMP203 in combination with the AUDAC Touch™ application it is possible to create a decentralized multi-zone system. By simply connecting the AMP203 to the local network and connecting the loudspeakers, a new zone can be introduced to your system.
SYSTEM SPECIFICATIONS | ||||
---|---|---|---|---|
THD+N (@ 1 kHz) | < 0.015% | |||
Crosstalk (@ 1 kHz) | < -98 dB | |||
Efficiency | > 70% | |||
Cooling | Convection cooled | |||
Control | RS-485 | |||
TCP/IP | ||||
Power | PoE 802.3bt | |||
Protection | Over heating | |||
Over load | ||||
DC Short circuit | ||||
Signal limiting | ||||
RMS Power | @ 2 Ω Bridge | 1 x 60 W | ||
Power | Supply | 24 V DC | ||
Outputs | Type | 1 x Stereo Loudspeaker | ||
1 x Line output | ||||
Connector | 4-pin Euro Terminal Block (Pitch – 5.08 mm) | |||
3-pin Euro Terminal Block (Pitch – 3.81 mm) | ||||
Power | Consumption | 80 W (max.) | ||
Inputs | Other | Type | 1 x Ethernet | |
RS-485 | ||||
Dante/AES67 (4 channels) | ||||
Connector | RJ45 | |||
Power | Consumption | Nominal (1/8 MUP) | 10.6 W | |
Standby | 3 W | |||
Idle | 6.6 W | |||
RMS Power | @ 4 Ω Stereo | 2 x 30 W | ||
@ 8 Ω Bridge | 1 x 30 W | |||
@ 8 Ω Stereo | 2 x 30 W | |||
@ 4 Ω Bridge | 1 x 60 W |
PRODUCT FEATURES | ||||
---|---|---|---|---|
Dimensions | 108 x 44 x 165 mm (W x H x D) | |||
Weight | 0.7 kg |
