ALTI6M
฿19,058.00
2-WAY 6.5″ DESIGN SURFACE MOUNT LOUDSPEAKERS
VARIANTS

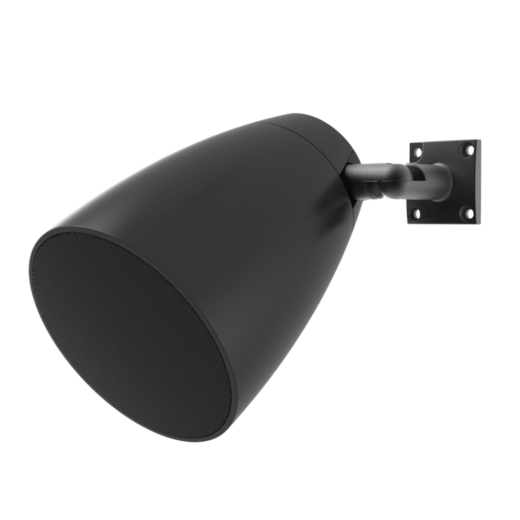

- ALTI6M/B – Black version

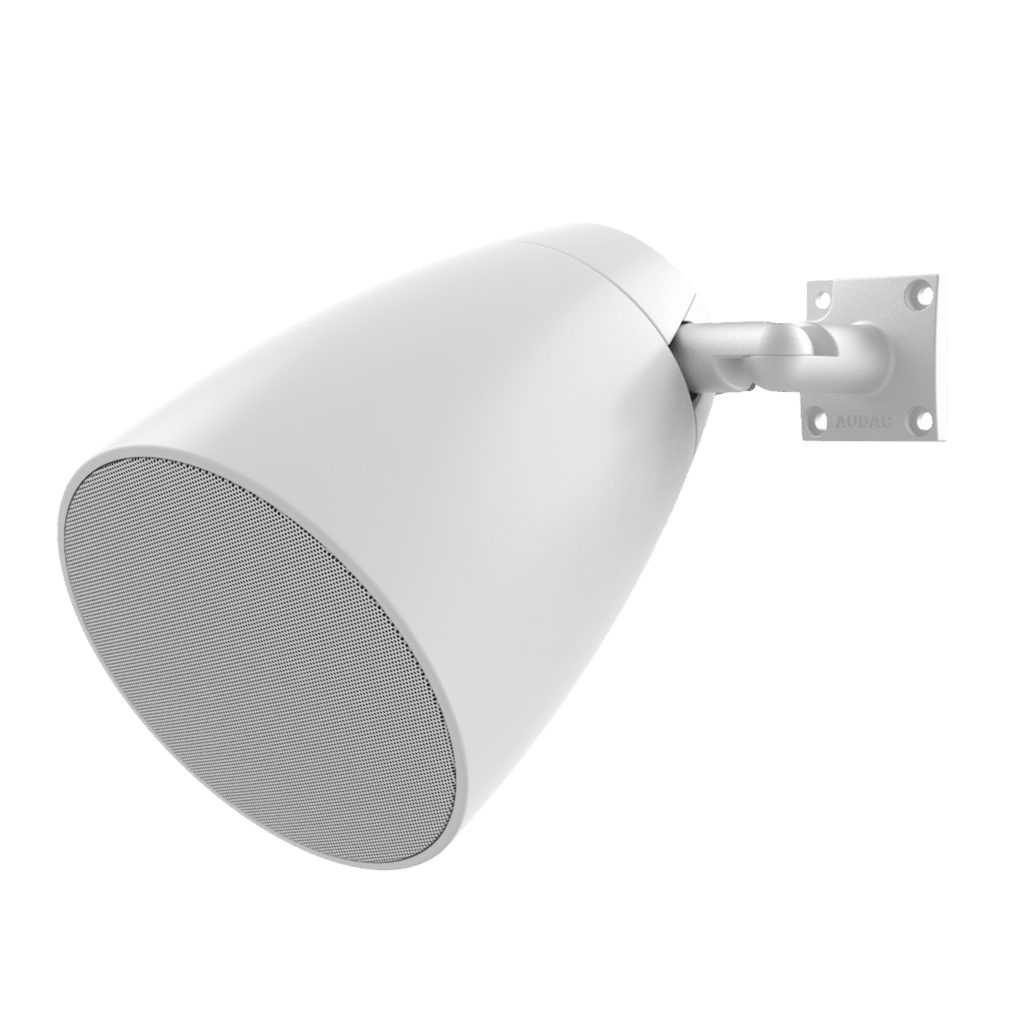

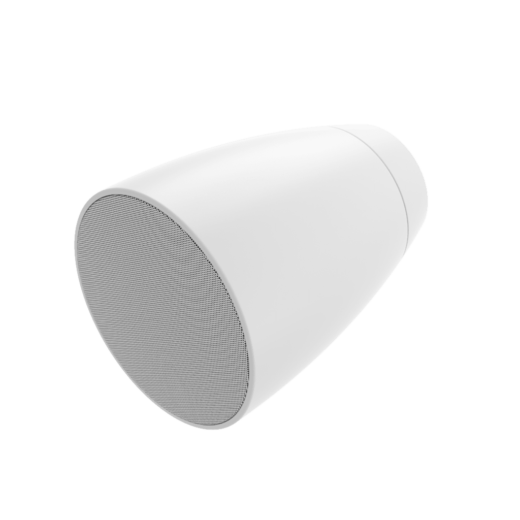

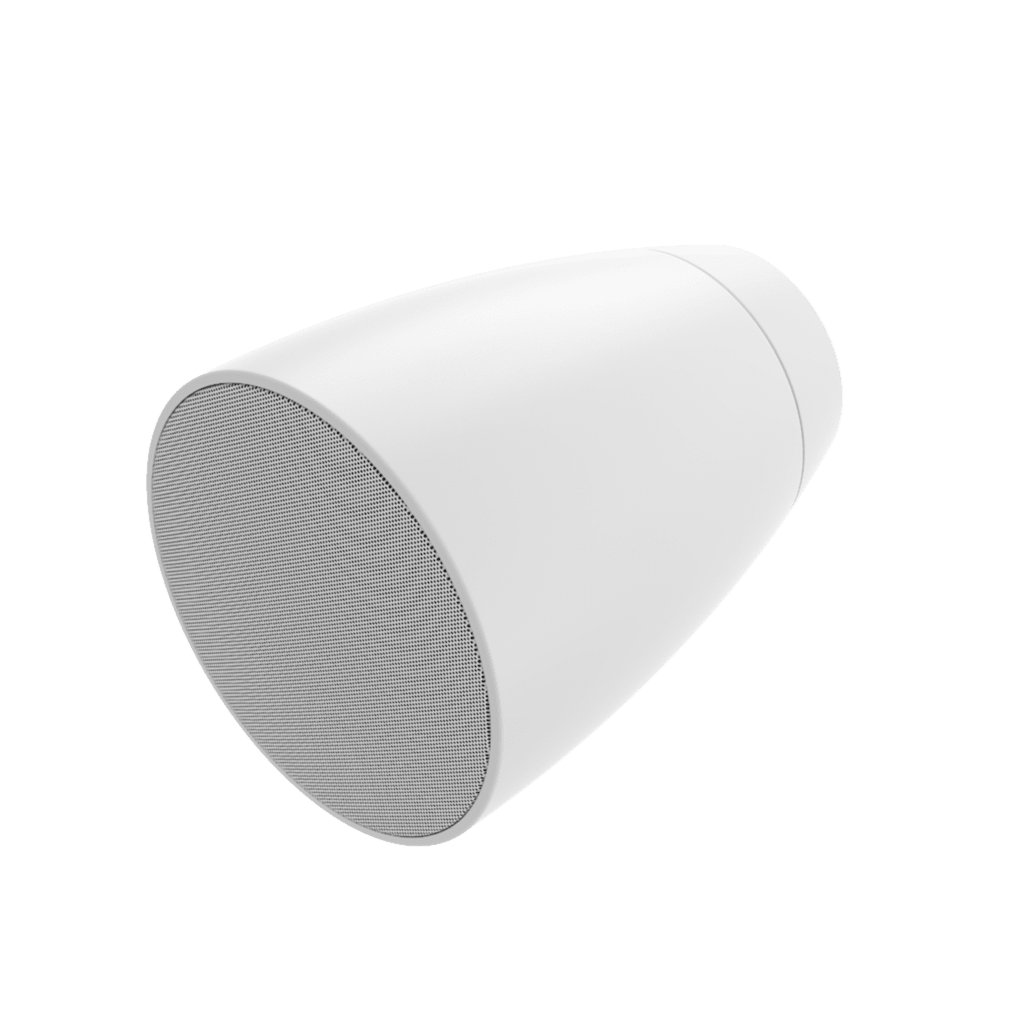

- ALTI6M/W – White version
| SYSTEM SPECIFICATIONS | ||||
|---|---|---|---|---|
| Speaker type | 2-way coaxial | |||
| Max. Power | 120 W | |||
| RMS Power | 60 W | |||
| Impedance | 16 Ω | |||
| Connectors | Waterproof AWX-5 connector | |||
| Sensitivity (1W/1m) | 83 dB | |||
| Ingress Protection rating | IP65 | |||

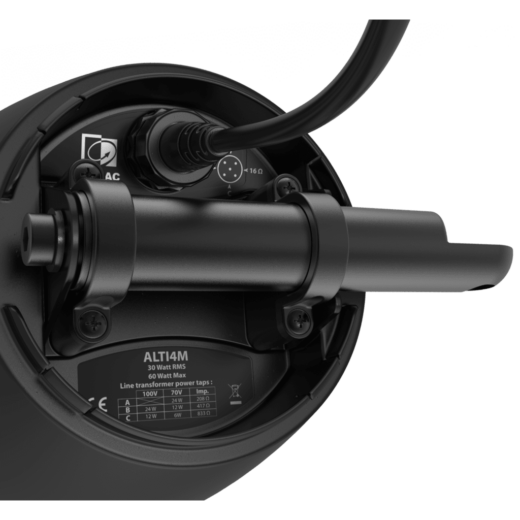

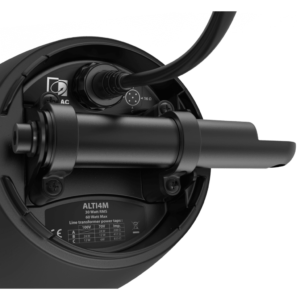

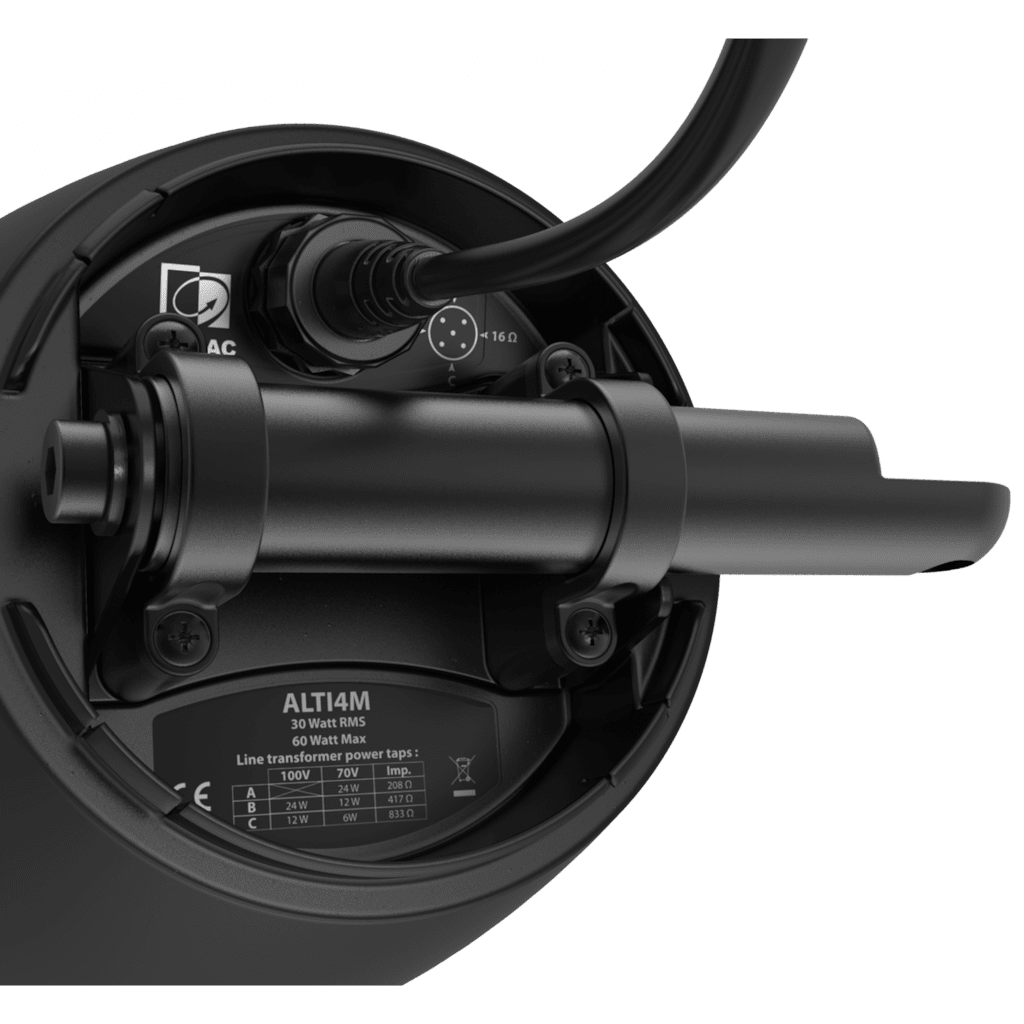

| Line Transformer Tappings | 1 | 83 Ω – 100 V / Not used – 70 V / 60 W | ||
| 2 | 167 Ω – 100 V / 60 W – 70 V / 30 W | |||
| 3 | 333 Ω – 100 V / 30 W – 70 V / 15 W | |||
| 4 | 667 Ω – 100 V / 15 W – 70 V / 7.5 W | |||
| Dispersion | Conical | 115° (average 500 Hz to 5 kHz @ -6 dB) | ||
| Sound Pressure (Max. W/1m) | @ 16 Ω | 101 dB | ||
| Frequency | Range (-10 dB) | 61.5 Hz – 20 kHz | ||
| Response (± 3 dB) | 75 Hz – 17 kHz | |||
| PRODUCT FEATURES | ||||
|---|---|---|---|---|
| Connection cable length | 0.7 m | |||
| Construction | Polypropylene | |||
| Front finish | Aluminium grill | |||

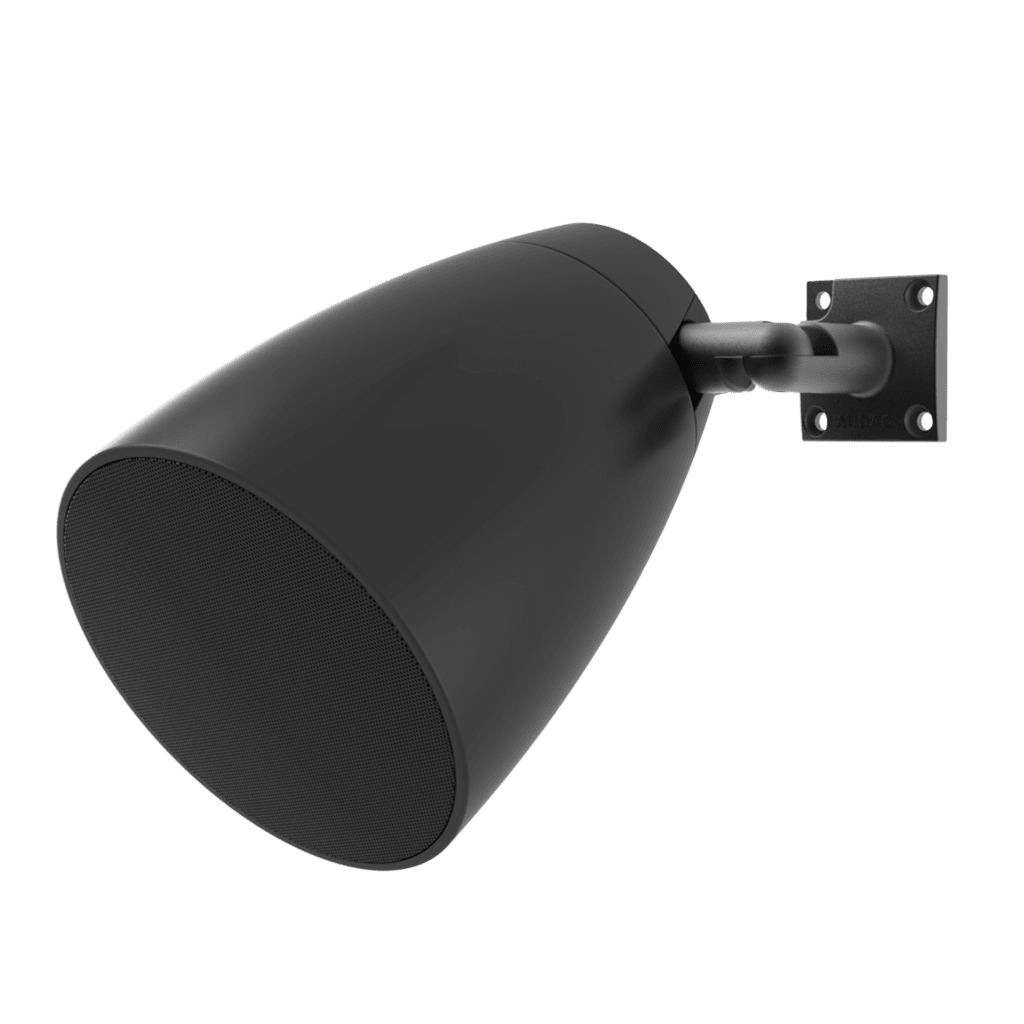

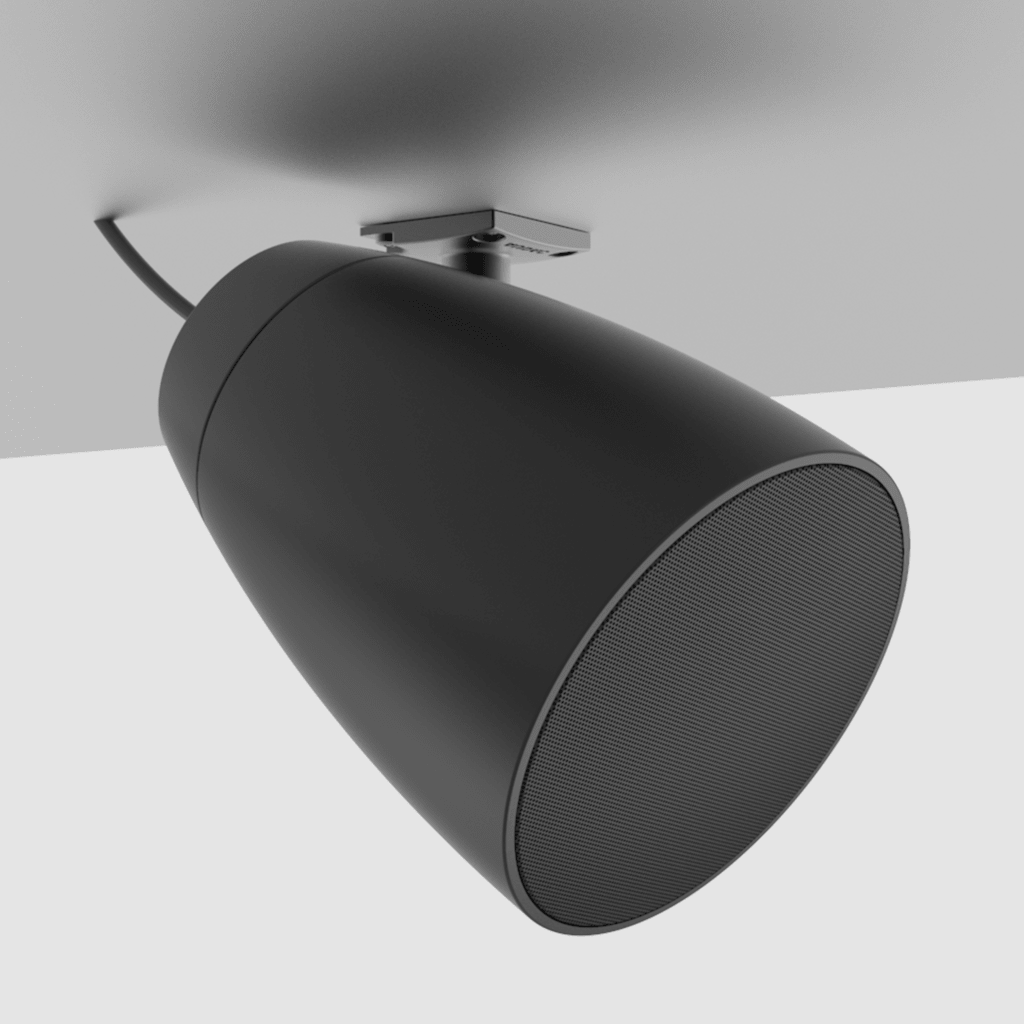

| Mounting & handling | 2-way Revolving mounting bracket | |||
| Weight | 3.48 kg | |||
| Dimensions | 235 x 230 x 336 mm (W x H x D) | |||
| Accessories | Included | 5-pin connection cable (70 cm) | ||
| 2-way Revolving mounting bracket | ||||
