Xtylos CJ3000

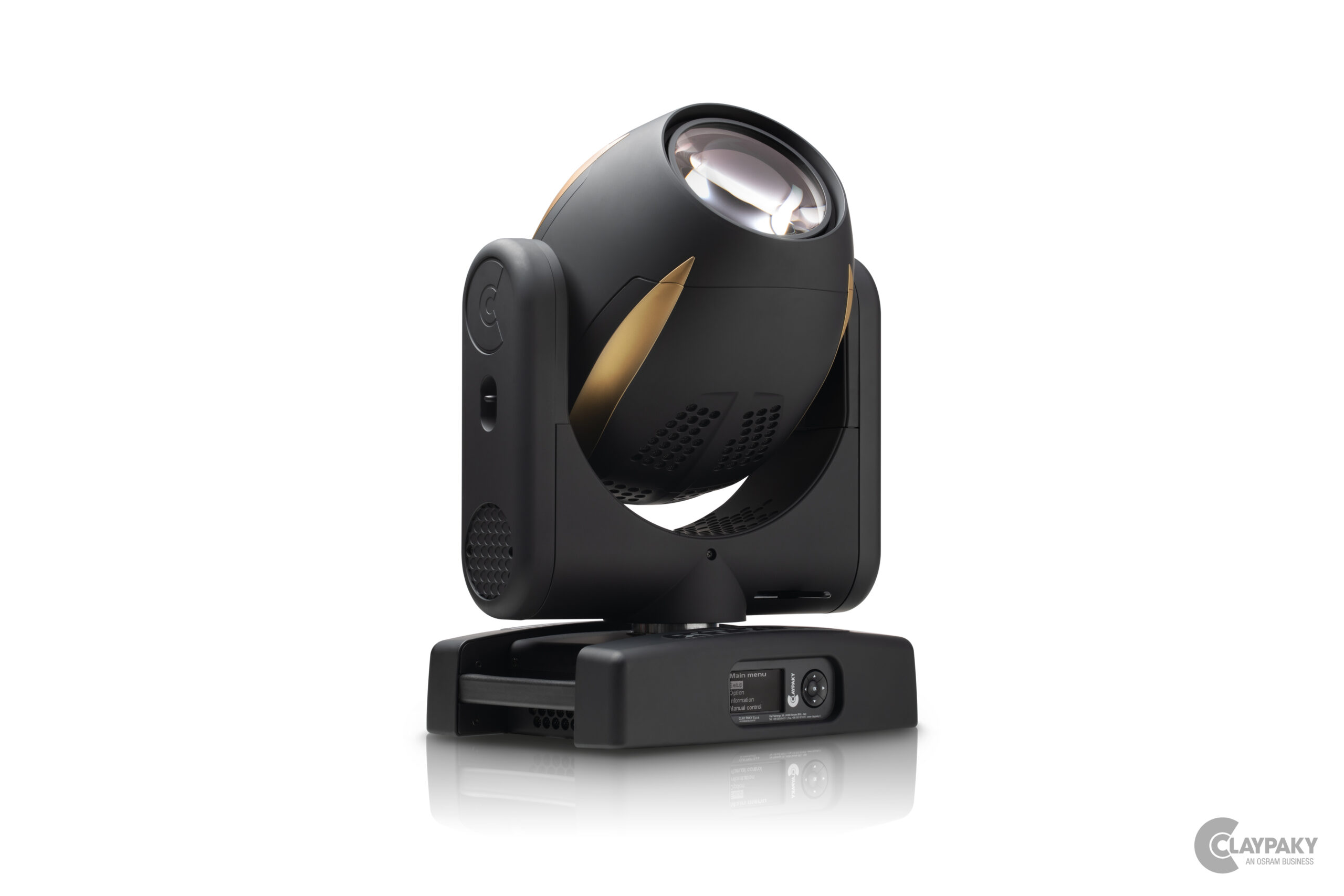

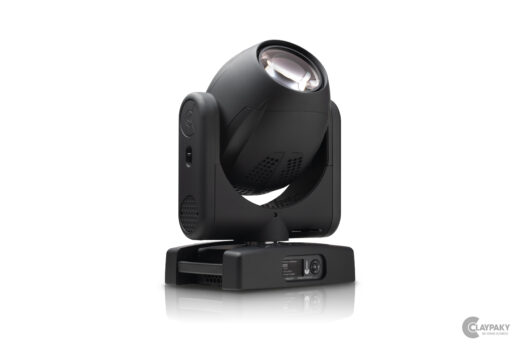

The Xtylos is a compact beam moving light with unique optical and chromatic characteristics, making use of a tailor-made RGB laser source (Patent Application filed). This laser source, lasting for 20,000 hours, is enclosed in a reliable, safe and fully sealed module and it is the powerful engine of an incredible array of colours: in contrast to the subtractive mixing used with discharge lamps, coloured light beams are as bright as a white light beam!
The range of effects features two gobo wheels – with 7 rotating gobos and 12 static gobo slots – a wheel with 3 prisms, and a sixteen facet prism on a dedicated channel which can be overlapped with the prism wheel. The beam aperture can be steered in the range 1°-7°.
The Xtylos is definitely the most dynamic light on the market. It is the first moving head light with a laser light source, and this opens up new, surprising prospects for the development of the entire entertainment lighting world.
- Light Source: Tailor-made laser engine, enclosed in a sealed module
- Long lasting light source (20,000 hours) with minimal decay
- Solid, flat field, saturated, ultraconcentrated light beam without any visible hotspots.
- Aperture: 1°-7° range (up to 0.5° using beam diameter reducers)
- RGB additive colour mixing, with exclusive Turbo-colours
- Unequalled colour consistency both across different fixtures and during lifetime.
- Exclusive BLazer graphic effects
- One wheel with 7 rotating gobos
- One wheel with 12 static gobo slots: 5 gobos and 7 beam reducers
- One wheel with 3 prisms and 1 soft-edge frost filter
- Sixteen-facet prism on a dedicated channel
- Unrivalled effect and colour change speed
- Compact housing with easy accessibility to all modules
- Extremely fast pan-tilt movements
- Ultra-precise 24-bit digital dimmer
RISK GROUP 3 – Warning: possibly hazardous optical radiation emitted from this product. Do not look at operating lamp source. Eye injury may result. EN/IEC 62471 – Hazard distance: refer to the manual
CLASS 1 laser product: EN/IEC 60825-1 2014
POWER SUPPLIES
Operating Voltage: 100-240V, 50/60 Hz
Power Supply: Electronic auto range with active PFC
INPUT POWER
Max Power consumption: 400VA
Mains Out: Max 1600VA
LIGHT SOURCE
Tailor-made laser engine, enclosed in a sealed module.
Solid, flat field, saturated, ultra-concentrated light beam without any visible hotspots.
Long lasting light source (20,000 hours*) with minimal decay.
*It may vary depending on various factors, as type of use and environment
OPTICS
Aperture: 1°-7° range (up to 0.5° using beam diameter reducers)
Total lumen output: 2900 lm

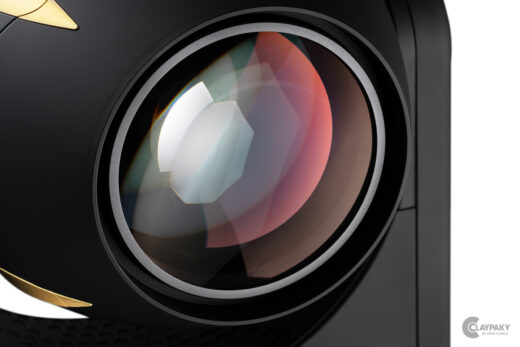

Front lens diameter: 150mm
High efficiency optical system
Motorized Focusing @16 bit
COLOR SYSTEM
RGB laser based system with derating to preserve laser diodes.
Linear virtual CTO 2500K – 6500K.
EFFECTS SECTION
1 Rotating gobo wheel with 7 HD Indexable and replaceable gobos
– Ext diam. 25.9mm (cut @ 25mm)
– Image diam. 11mm
– Thickness 0.5mm
1 static gobo disk with 12 gobo slots (5 gobos and 7 beam reducers)
Rotating Prisms disk: Convex plane, Pyramid 6 facets, Linear 6 facets, Frost.
16 Facets prism with rotation in both direction at variable speed.
Very precise 0-100% digital dimmer, dimmer Resolution: 24 bit.
High speed electronic Shutter and Strobe.
CONTROL AND PROGRAMMING
Personalities: Single mode with 31 control channels
Control Protocol: DMX, Art-Net, RDM, sACN

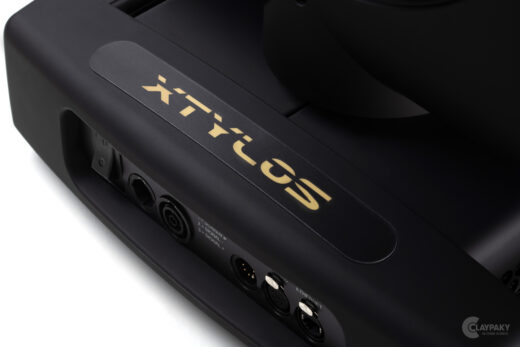

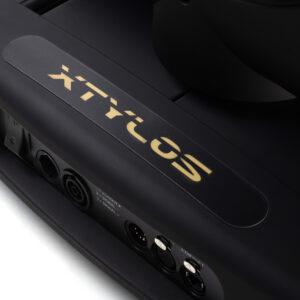

DMX and RDM connectors: Locking 5 pin XLR IN/OUT
Ethernet port: RJ45 IN
Power connector: PowerCon True1 IN/OUT
Built In Web Server
BODY
Aluminum and steel structure with plastic covers
Two side handles for transportation
IP20 protection rate
MOVING BODY
Tilt: 251° – 16bit
Pan: 540° – 16bit
Accuracy: Resolution ± 0,28° (Range 0,56°)
Automatic repositioning
Fast/Normal speed selectable by Function channel
Mechanical Pan/Tilt lock for safe transportation and maintenance
NOISE LEVEL
51.5 dBA
ELECTRONICS
Long life self-charging battery
Display Graphic LCD backlit b/w Display
Firmware upload from another fixture
Firmware Upgrade via Web Server
Diagnostic
DMX monitoring
Remote access through RDM
CloudIO compatibility
SAFETY DEVICES
Minimum distance of illuminated objects 10 meters (32’ 10”)
Minimum distance from flammable materials 0.2 meters (8”)
Thermally protected power supply (overheating and cooling failure)

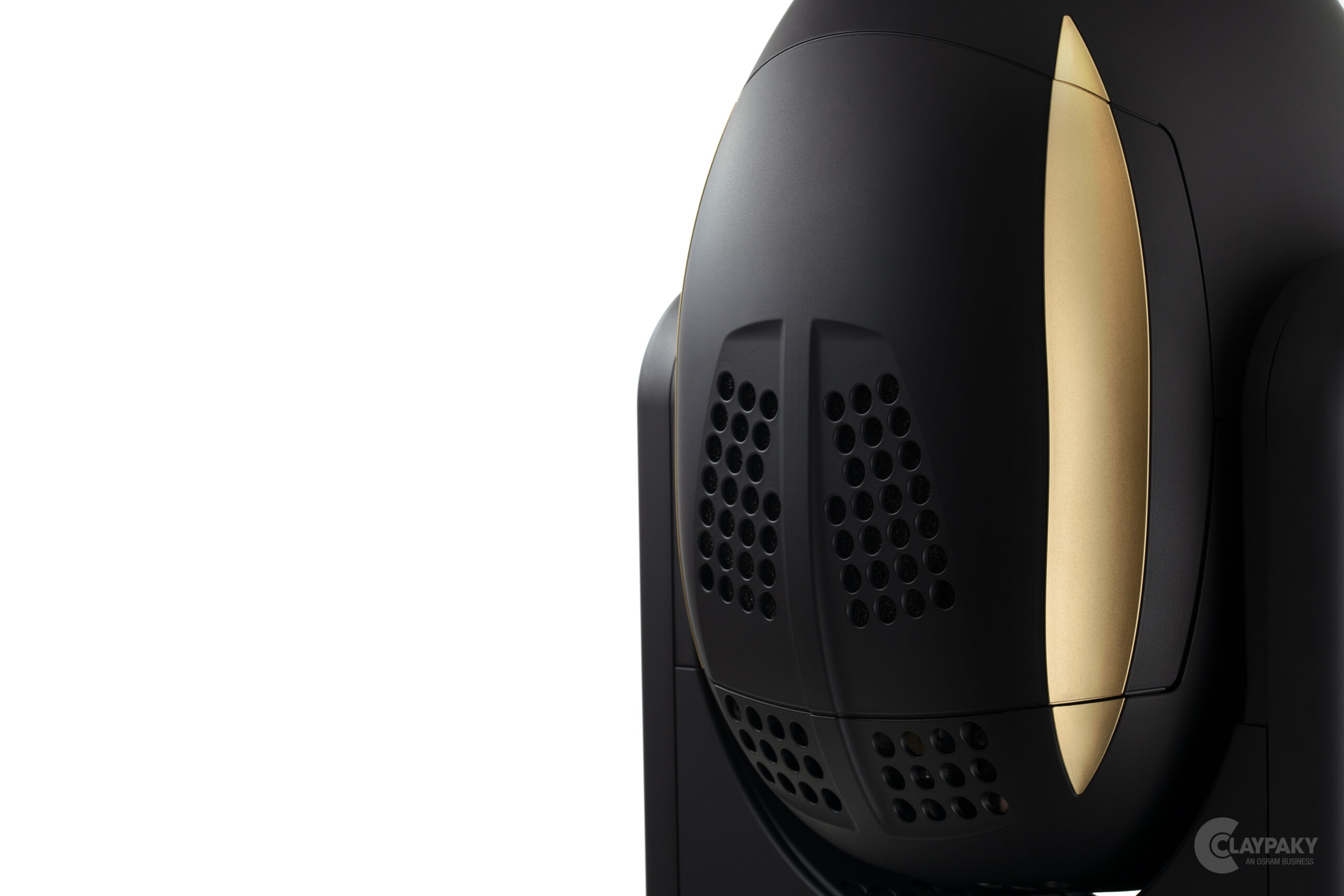

Forced ventilation with axial fans and heat sink
Safety devices bipolar circuit breaker with thermal protection
THERMAL SPECIFICATION
Max ambient temperature 40°C (104°F)
Min ambient temperature -20°C (-4°F)
Max temperature of the external surface 60°C (140°F)
Total heat dissipation: 1366 BTU/hr ±10% / 1440 kJ/hr ±10%
WORKING POSITION
Working in any position
Hanging system: with fast-lock omega clamps (1/4 turn) on the base pn 183102/805
Optional safety chain
CE MARKING
In conformity with the European Directives:
• 2014/35/EU – Safety of electrical equipment supplied at low voltage (LVD)
• 2014/30/EU – Electromagnetic Compatibility (EMC)
• 2011/65/EU – Restriction of the use of certain hazardous substances (RoHS)
• 2009/125/EC – EcoDesign requirements for Energy-related Products (ErP)
ETL
cETLus Listed
WEIGHT
24 Kg (53 lbs)
388x294mm (base dimension) – 582mm with vertical head (h)
Distance between two fixtures 400mm
