12X-CAM
฿103,250.00
12X 1080p PTZ Camera with 6.3(tele) – 72.5(wide) degree shooting angle, USB 2.0
,USB3.0, HDMI, Lan, RS-232 Multifunction IR remote control, RS-232 control options and
PC control using Sony VISCA or Pelco-D/ Pelco-P command, Black.
Description

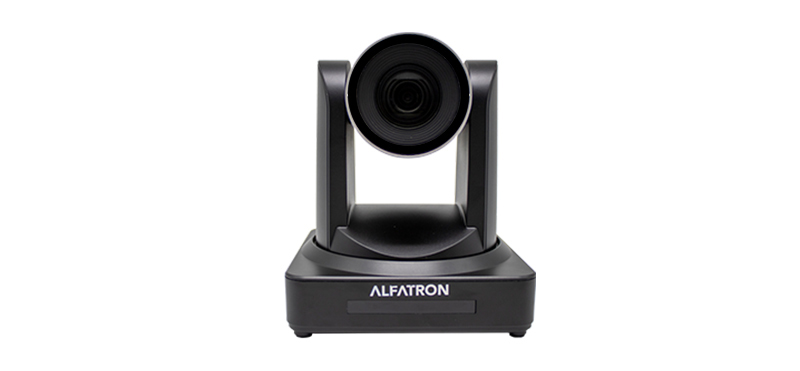

Alfatron 12X-CAM
The ALF-12X-CAM is an HD PTZ 1080p equipped camera with a 12x Zoom Lens. This PTZ camera is suitable for medium to large-sized meeting rooms, boardrooms, and conference venues. Alfatron ALF-12X-CAM is compatible with video meeting software, such as Teams and Zoom. The Full HD 1080P camera is equipped for a high-quality video stream and high definition real-time synchronization.
Product Features
- 1080P video with a Frame rate up to 60fps
- 12x Zoom Lens which gives you a clear and fluent image
- Leading Auto Focus Technology
- Low Noise and High SNR
- Quiet PTZ
- 255 Presets
- RS232 Cascade Function
- Multiple Network Protocol – Supports IP VISCA, ONVIF, RTSP & RTMP
- Control Protocols – VISCA IP, ONVIF, PELCO-D, PELCO-C and VISCA standard protocols
- 12V DC or USB Powered
- Wide Application- Tele Education, Lecture Capture, Webcasting, Video Conferencing, Tele Training, Tele Medicine, Interrogation and Emergency command systems.
- Shipped with a Ceiling or wall mount bracket.
Specifications
| Model | ALF-12X-CAM | ||||
| Camera Parameter | |||||
| Sensor | 1/2.8-inch-high quality HD CMOS sensor | ||||
| Effective Pixels | 16: 9 2.07 megapixel | ||||
| Video Format | HDMI/ video format
1080P 60/50/30/25/59.94/29.97; 1080I 60/50/59.94; 720P 60/50/30/25/59.94/29.97 interface video format 1)1920X1080P60/50/30/25; 1280X720P60/50/30/25; 960X540P30; 640X360P30; 640X480P30; 352X288P30; 960X540P30 |
||||
| Optical Zoom | 12X
f＝3.9～46.1mm |
||||
| View Angle | 6.3°（tele）
72.5°（wide） |
||||
| AV | F1.8 – F2.4 | ||||
| Digital Zoom | 10X | ||||
| Minimum Illumination | 0.5Lux (F1.8, AGC ON) | ||||
| DNR | 2D & 3D DNR | ||||
| White Balance | Auto / Manual/ One Push/ 3000K/ 4000K/5000K/6500K | ||||
| Focus | Auto/Manual | ||||
| Aperture | Auto/Manual | ||||
| Electronic Shutter | Auto/Manual | ||||
| BLC | ON/OFF | ||||
| WDR | OFF/ Dynamic level adjustment | ||||
| Video adjustment | Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve | ||||
| SNR | >55dB | ||||
| Input/output Interface | |
| Video Interfaces | USB2.0, USB3.0, HDMI, LAN, RS232（input） |
| Image code stream | Double streams output simultaneously |
| Video Compression format | H.264, H.265 |
| Control Signal Interface | RS-232 Ring through RS232 output, RS-485 |
| Control Protocol | VISCA/Pelco-D/Pelco-P; Baud Rate: 115200/9600/4800/2400bps |
| HD IP Interface | 100M IP port(100BASE-TX); 5G WiFi (optional), support IP Visca control protocol |
| Network Protocol | RTSP/RTMP,ONVIF |
| Power Interface | HEC3800 outlet (DC12V) |
| PTZ Parameter | ||
| Pan Rotation | ±170° | |
| Tilt Rotation | -30°～+90° | |
| Pan Control Speed | 0.1 -180°/sec | |
| Tilt Control Speed | 0.1-80°/sec | |
| Preset Speed | Pan: 60°/sec, Tilt: 30°/sec | |
| Preset Number | 255 presets (10 presets by the remote controller) | |
| Other Parameter | ||
| Supply Adapter | AC110V-AC220V to DC12V/2A | |
| Input Voltage | DC12V±10% | |
| Input Current | 1A(Max) | |
| Consumption | 12W (Max) | |
| Store Temperature | -10℃ to +60℃ | |
| Store Humidity | 20% – 95% | |
| Working Temperature | -10℃ to +50℃ | |
| Working Humidity | 20%–80% | |
| Dimension | 150mmX150mmX167.5mm | |
| Weight | 1.4KG | |
| Working Environment | Indoor | |
| Remote Operation (IP) | Remote Upgrade, Reboot, and Reset | |
| Accessories | Power Supply, RS232 Control Cable, USB3.0 Cable, USB2.0 Cable, Remote, Manual, Warranty card, Ceiling or Wall mount bracket | |
